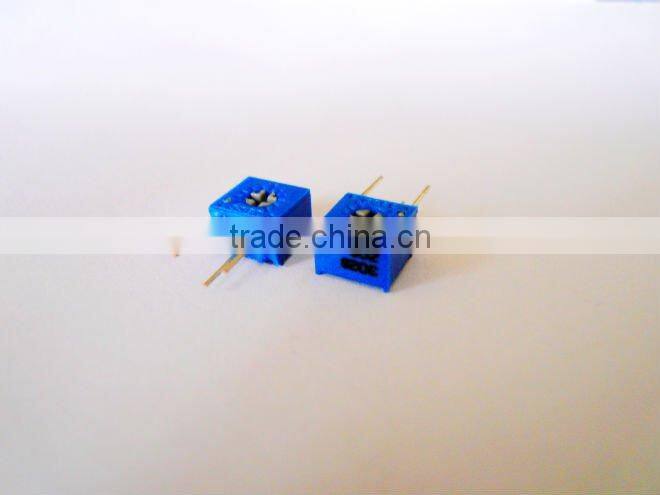

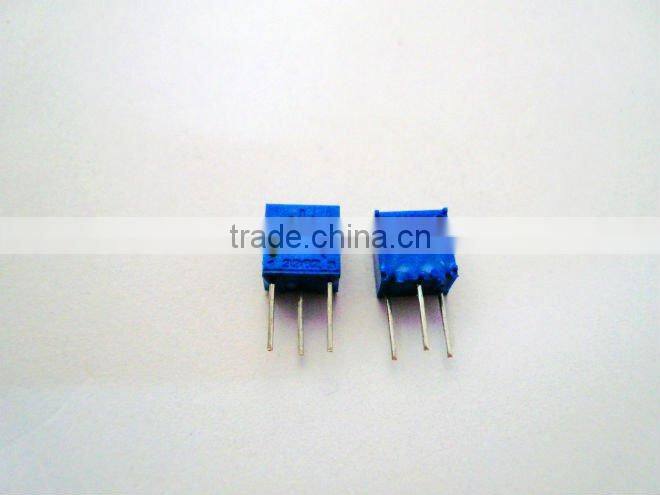

3362S Potentiometer 203 (20K) & 3362 Potentiometer & Adjustable Resistance & Adjustable Potentiometer
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
3362S potentiometer
Payment & Shipping
Payment Methods:
Port of Shipment:
guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Variable High-power Resistor,1-1000W,1-500ohmUS$ 6 - 8MOQ: 10 Pieces -
3386W Linear 100K Ohm Trimmer Potentiometer,single-turns,500V,0.5WUS$ 0.08 - 0.15MOQ: 100 Pieces
-
Trimmer Potentiometer,5K Ohm,glass Galze ,multiturn 3266ZUS$ 0.01 - 0.15MOQ: 100 Pieces
-
Glass Glaze Trimmer 5k Ohm Potentiometer With ,3266NegotiableMOQ: 100 Pieces
-
Ceramic Trimmer Potentiometer,5K Ohm,3266US$ 0.01 - 0.15MOQ: 100 Pieces
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
3362S potentiometer
Type
Trimming Potentiometer
Technology
Cermet
Resistance
10Ω~5M Ω
Resistance Tolerance
±10%
Rated Power
0.25W
Max. Operating Voltage
500V
Operating Temperature
-55℃~+125℃
Specifications
1.3362S variable resistance potentiometers, single-turn2. ISO9001 RoHS compliant
3 fast delivery
4.10ohm~5M ohm
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance |
±10% |
|||||
| Terminal resistance |
≤±1%R or 2Ω |
|||||
| Contact resistance variation (CRV) |
≤±1%R or 3Ω |
|||||
| Insulation resistance |
≥ 1GΩ (100V AC) |
|||||
| Withstand voltage |
500V (DC or AC peak value) |
|||||
| Effective electrical travel |
≥200° |
|||||
| Environment Characteristics |
Rated power | 0.25W ( 300V max) | ||||
| Temperature range | -55°C~+125°C |
|||||
| TCR |
±250×10-6/°C |
|||||
| Collision (390m/S2, 4000 times) |
ΔR≤±1%R |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) |
ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ |
|||||
| Electrical endurance (0.25W, 1000h) |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|||||
| Mechanical endurance (200 cycles) |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Physical Characteristics | Total mechanical travel | 260°±10° | ||||
| Starting torque | ≤20mN.m |
|||||
| Stoper torque | ≥50mN.m | |||||
| Standard package | 50 pcs /tube |
|||||
