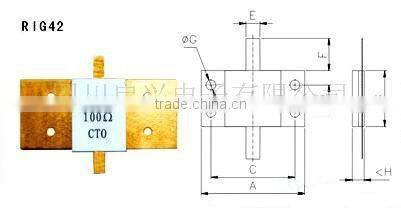

Variable High-power Resistor,1-1000W,1-500ohm

FOB Price

US$ 6 - 8 / Piece

10 Pieces(Min. Order)

Port SHENZHENG
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China	Brand Name	BONENS
Model Number	RIG02,RIG11,RIG12,RIG21,RIG22....	Type	Variable Resistor
Technology	Cermet	Resistance	1-500ohm
Resistance Tolerance	5%	Rated Power	1-1000W
Operating Temperature	-55°C~+165°C

Product Description

Specifications

1 Power: 400W,1000W etc.
2 Resistance: 1ohm ~500ohm
3 Correspod to GB/T5729-94
4 ISO RoHS
5 we supply to the military to

•Products of special resistance and specifications are provided.

•Products of special standing wave ratio should be given a clear indication in contracts.

•Special requirements of standing wave ration is tested and chosen only for products of 50Ω.

•Products are corresponded to the standard of GB/T5729-94.

•Any special requirement is appreciated.

Electrical Characteristics

Range of nominal resistance: 1 ~500Ω

Frequency range: 0~2GHz

Insulation resistance: ≥ 1GΩ

Resistance tolerance: ±5%

Standing wave ratio: 1.2~1.3

Withstand voltage: 500V/1 mm (Substrate thickness)

Environment Characteristics

Rated power: 1~1000W (70°C)

TCR: ±300×10^-6/°C

Moisture proof (GJB306A-96-Method106): ΔR≤±5%R

Test at low temperature (-55°C, 24h): ΔR≤±5%R

Collision: ΔR≤±3%R

Temperature range: -55°C~+165°C

Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R

Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage

Load life (96): ΔR≤±5%

Physical Characteristics

Terminal strength (10N, 5s): No loosening or fall-out

Solderability (240°C, 3s): Coverage area of tin layer: 95%
