H.265 5.0 Megapixel IP Color IR Mini Bullet Camera Hi3516D OV5658 CMOS With Privacy Mask Motion Detection IR Bullet Camera
Negotiable
MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASIH20-B4-4518
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
H.265 4.0MP IP Color IR Mini Bullet Camera OV4689 Cmos Home Cctv CamerasNegotiableMOQ: 1 Piece -
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR CameraNegotiableMOQ: 1 Piece
-
H.265 2.0MP 120dB Super WDR BLC HD IP Color IR Mini Bullet Camera With 2.0 Megapixels Panasonic 34229 CMOSNegotiableMOQ: 1 Piece
-
H.265 120db WDR With 0.001Lux Starlight Full Color IP Bullet Camera With 2.0 Megapixels WDR Sony 290 CMOS Support P2P IPhoneNegotiableMOQ: 1 Piece
-
H.265 1/2.8" 2.0 Megapixels WDR Bullet IP Network Camera H.265 IP CCTV Camera Mini Bullet Camera IP66 Support OnvifNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
AST
Model Number
ASIH20-B4-4518
Type
IP Camera
Style
Bullet Camera
Sensor
CMOS
Technology
Infrared
Special Features
Waterproof / Weatherproof

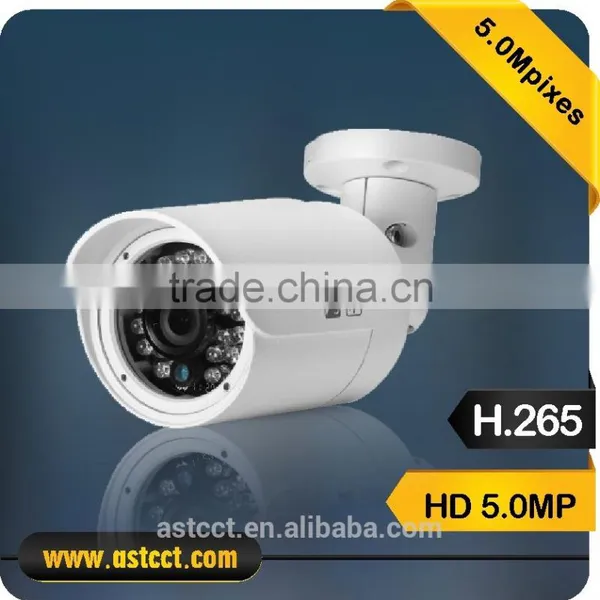

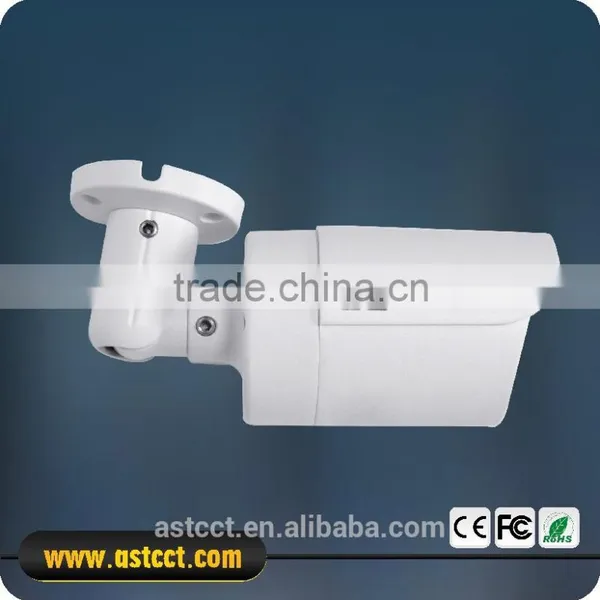

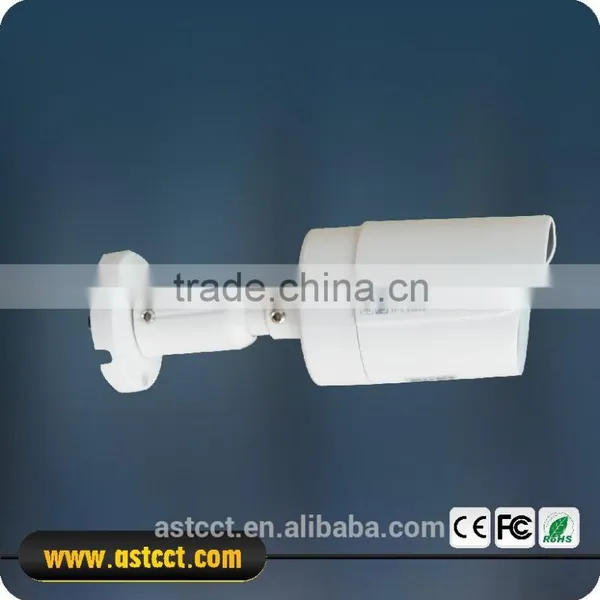

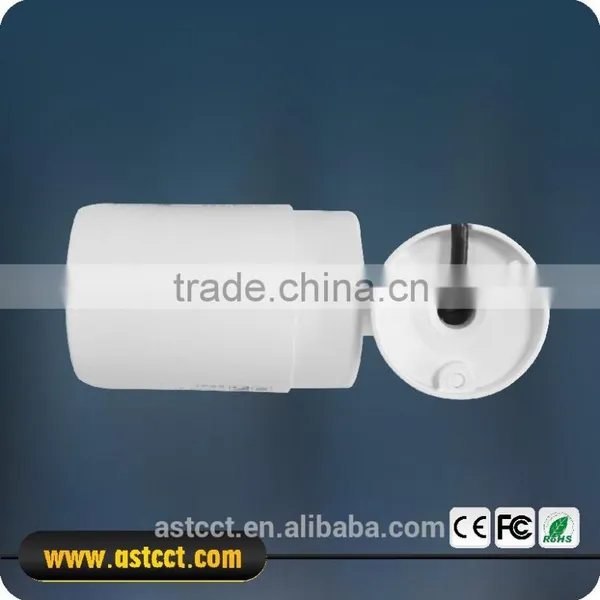

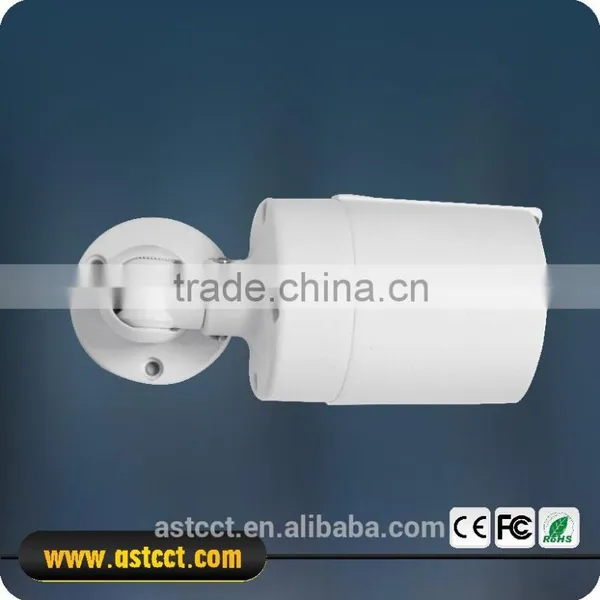

Detailed Images
H.265 5.0 megapixel IP Color IR Mini Bullet Camera Hi3516D OV5658 CMOS with Privacy Mask Motion Detection IR Bullet Camera
Key Features
H.265 5.0MP IP Color IR Mini Bullet Camera
Camera:
1/3" 5.0 Megapixels OV5658 CMOS Sensor ,Hisilicon Hi3516D Chipset, the highest resolution of 2592*1944, low illumination 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white) ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 5.0 Megapixels OV5658 CMOS
2.Max 1-10fps5.0 Megapixels (2592*1944)
3.Min. Illumination:0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white)

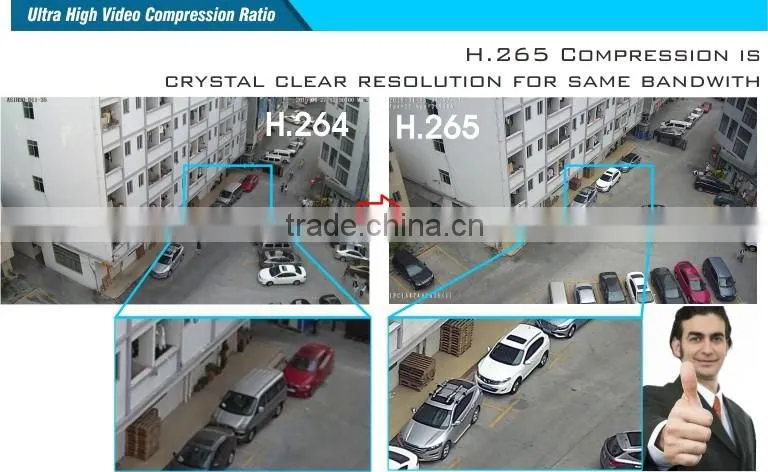

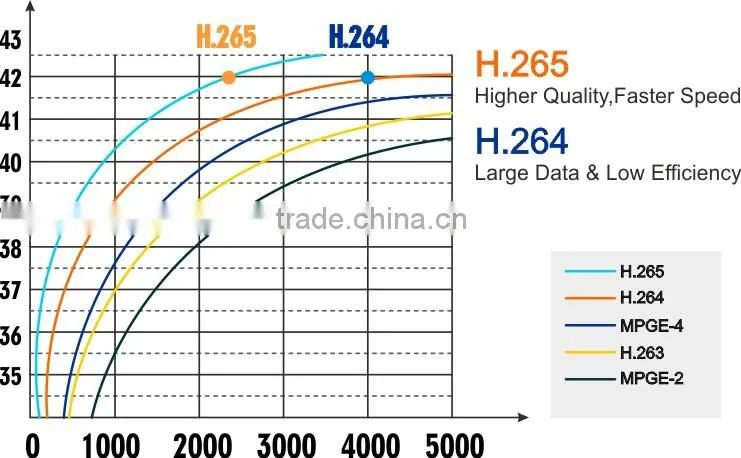

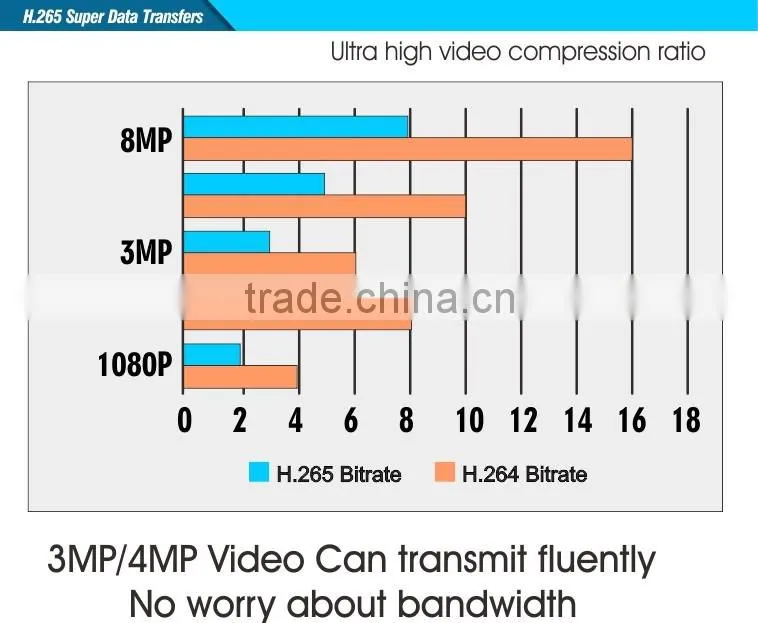

4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.3.6mm Fixed Lens, 24pcs Ø5 LEDs, up to 20m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating
Product Description
| Mode | Name and Description | H.265 5.0MP IP Color IR Mini Bullet Camera |
| ASIH20-B4-4518 | ||
| Camera Specification | Media Processor | HI3516D+OV5658 |
| Image Sensor | 1/3" 5.0 Megapixels OV5658 CMOS | |
| Effective Pixels | 2592*1944 | |
| Shuttle time | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white) | |
| Lens Specifications | 3.6mm Fixed Lens | |
| Day/Night Mode | Auto(ICR)/Color/B/W | |
| IR Distance | 24pcs Ø5 LEDs, up to 20m IR distance | |
| WDR | DWDR ≥80db | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Image | Compression | H.264/MJPEG/H.265 |
| Max Image Size | 2592(H)x1944(V) | |
| Stream | Dual-stream | |
| Frame Rate | Main Stream : | |
| 2592*1944, 1-10fps ;2048*1520,1-25(30)fps ;1920*1080,1-25(30)fps | ||
| Sub-stream : | ||
| 704*576,1-25(30)fps 640*352,1-25(30)fps | ||
| 640*480,1-25(30)fps 320*240,1-25(30)fps | ||
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP |
|
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Motion detect | Support |
| Privacy Zone Masking | Support | |
| Audio in | Support | |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | N/A | |
| Alarm in | Support | |
| Alarm out | N/A | |
| IO Interface | Support (Reset ) | |
| RS485 | Support | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimension | 172*65*62mm | |
| Weight | 0.48Kg |
Packaging & Shipping
Size
FAQ
Certifications
Our company product obtain CE, RoHS, FCC ,IP66 certifications
