H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera thumbnail-1
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera thumbnail-2
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera thumbnail-3
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera thumbnail-4
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera thumbnail-5
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera thumbnail-6
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera photo-1
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera photo-2
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera photo-3
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera photo-4
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera photo-5
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASIH20-B4-3214
Contact Supplier Request Quote Chat Now
Shenzhen Anxinshi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AST
Model Number ASIH20-B4-3214
Type IP Camera
Style Bullet Camera
Sensor CMOS
Technology Infrared
Special Features Vandal-proof
Detailed Images

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera



H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR CameraH.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera


H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR CameraH.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

Key Features

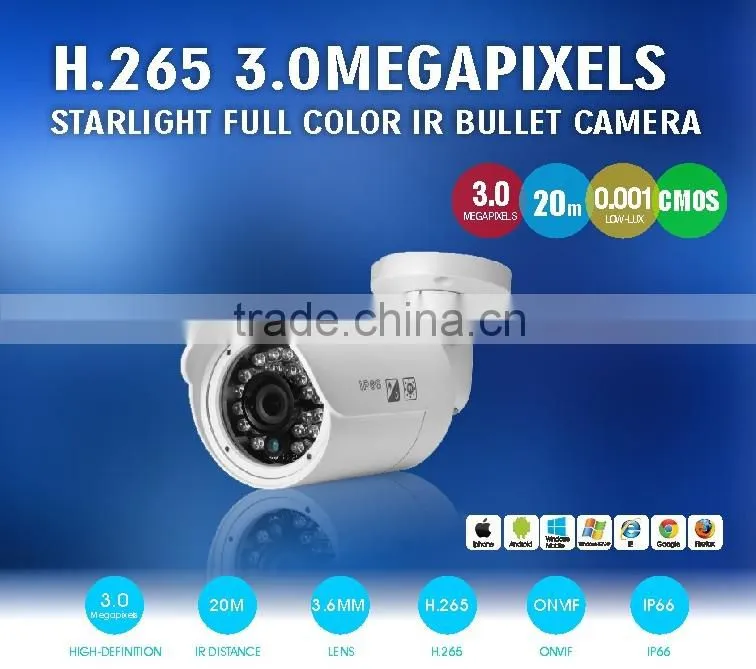

H.265 3.0MP IP Starlight Full Color IR Mini Bullet Camera



Camera:

Camera:
1/2.8" 3.0 Megapixels Starlight Full Color Sony 124 CMOS Sensor ,Hisilicon Hi3516D Chipset, the highest resolution of 2048*1536, low illumination 0.001 LuxF1.2 (color); Starlight Full Color,High-definition Image ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.



Key Features:
1.1/2.8" 3.0 Megapixels Starlight Full Color Sony 124 CMOS

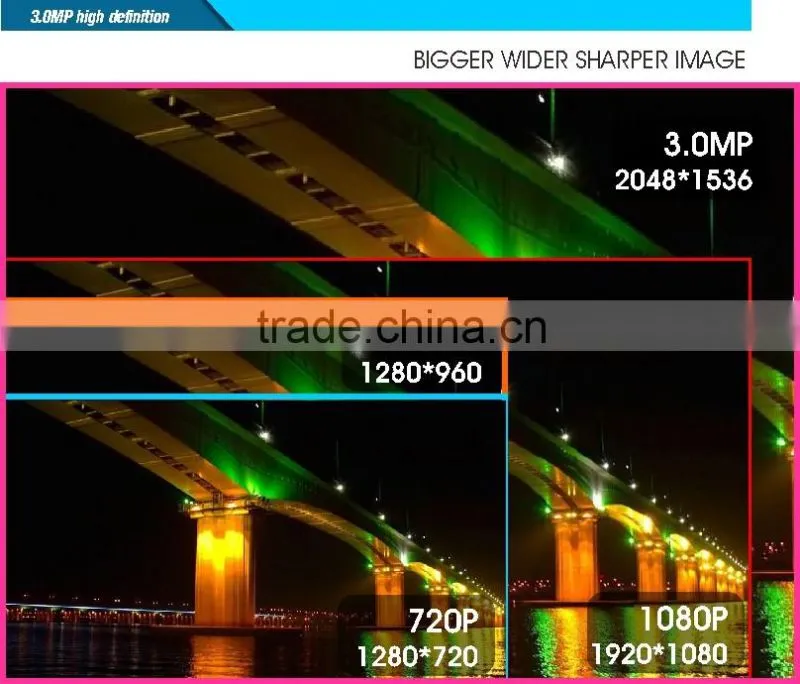

2.Max 25/30fps3.0 Megapixels (2048*1536)
3.Min. Illumination: 0.001 LuxF1.2 (color);
4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.3.6mm Fixed Lens, 24pcs Ø5 LEDs, up to 20m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating



Product Description
Mode Name and Description H.265 3.0MP IP Starlight Full Color IR Mini Bullet Camera
ASIH20-B4-3214
Camera Specification Media Processor HI3516D+SONY 124
Image Sensor 1/2.8" 3.0 Megapixels Starlight Full Color Sony 124 CMOS
Effective Pixels 2048*1536
Shuttle time Auto (1/25 ~ 1/10000s)
Min. Illumination 0.001Lux/F1.2(Color)
Lens Specifications 3.6mm Fixed Lens (6/8 optional)
Day/Night Mode Auto(ICR)/Color/B/W
IR Distance  24pcs Ø5 LEDs, up to 20m IR distance
WDR DWDR ≥80db
S/N Ratio ≥50db(AGC OFF)
Image Compression H.264/MJPEG/H.265
Max Image Size 2048(H)x1536(V)
Stream Dual-stream
Frame Rate Main Stream :
2048*1536,1-25(30)fps ;1920*1080,1-25(30)fps  ; 1280*720,1-25(30)fps
Sub-stream :
704*576,1-25(30)fps   640*352,1-25(30)fps
640*480,1-25(30)fps   320*240,1-25(30)fps
Bit Rate 32KB ~16Mbps; support VBR; CBR
Text Overlay Channel; Date & Time; Bit Rate
Network Data Storage Video record; Picture format
Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
Alarm data transmission FTP; E-mail; Browser; CMS
Protocol TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/
INTP/IPPPOE/ISMTP/IUPNP
ONVIF ONVIF 2.4
Max. User Access 10 users; IE; Google; Firefox
Smart Phone Windows Mobile; iPhone; iPad; Android
Interface Motion detect Support
Privacy Zone Masking Support
Audio in Support
Audio out Support
BNC Video out Support
Memory Card N/A
Alarm in Support
Alarm out N/A
IO Interface Support (Reset )
RS485 Support
General Parameters Power Supply DC12V
Operation Temperature -20℃ - +50℃
Operation Humidity Less than 95%RH(no condensation)
Weather Proof Rating IP66
Installation Equipped With Bracket
Dimension 172*65*62mm
Weight 0.48Kg



Packaging & Shipping

 H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera



Size

 H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR CameraH.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera



FAQ
H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera
Certifications

H.265 3.0MP 0.01LUX Starlight Full Color Bullet IP Camera Hi3516D Sony 124 CMOS Low-Lux Matel Bullet IR Camera

Our company product obtain CE, RoHS, FCC ,IP66 certifications
