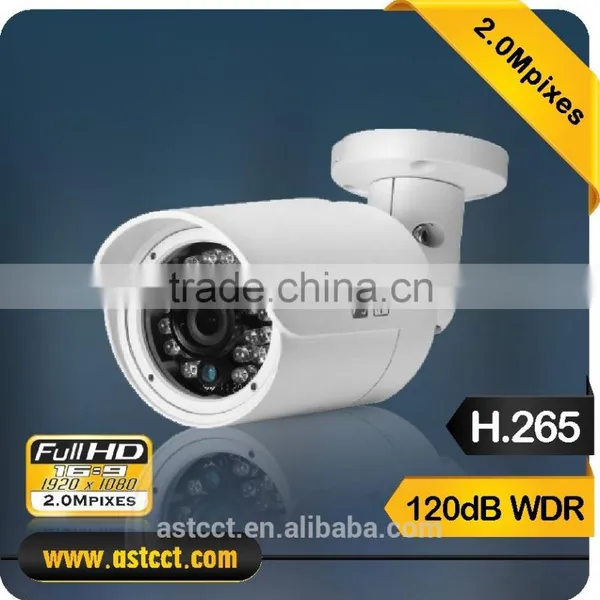

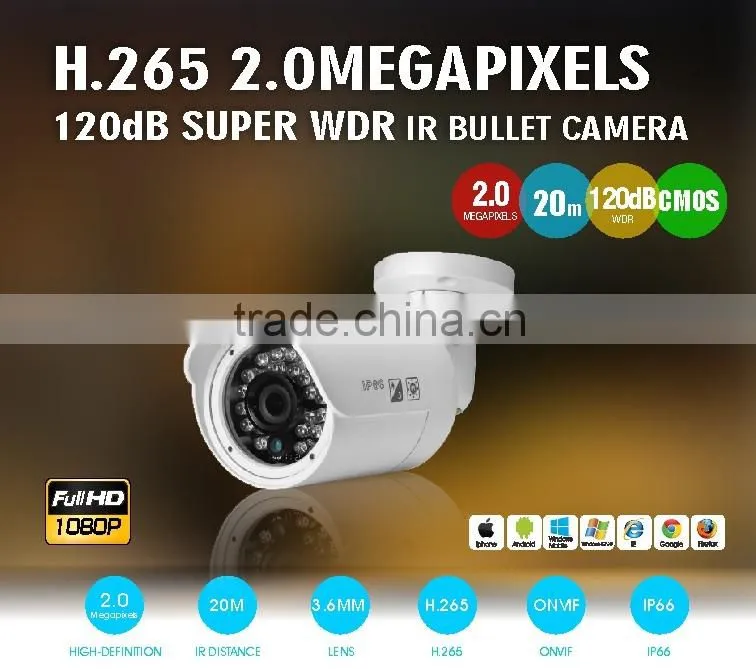

H.265 2.0MP 120dB Super WDR BLC HD IP Color IR Mini Bullet Camera with 2.0 Megapixels Panasonic 34229 CMOS
H.265 2.0MP 120dB Super WDR BLC HD IP Color IR Mini Bullet Camera
Camera:
1/3" 2.0 Megapixels Panasonic 34229 CMOS ,Hisilicon Hi3516D Chipset, the highest resolution of 1920*1080, low illumination 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white ); 120dB Super WDR BLC ,IR-CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 2.0 Megapixels Panasonic 34229 CMOS
2.Max 25/30fps2.0 Megapixels (1920*1080)
3.Min. Illumination: 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white)
4. H.264/H.265 & MJPEG dual-stream encoding
5.Multiple network monitoring: Web viewer, Smart phone.
6.3.6mm Fixed Lens, 24pcs Ø5 LEDs, up to 20m IR distance
7.Privacy Mask, Motion Detection
8.Support Onvif 2.4 protocol
9.POE function optional
10.IP66 rating
H.265 Advantages
Strongest video compression technlogy
*The latest compression standard
*30%-50% storage saving
*50%-80% bandwidth saving
| Mode | Name and Description | H.265 2.0MP 120dB Super WDR BLC HD IP Color IR Mini Bullet Camera |
| ASIH20-B4-3212 | ||
| Camera Specification | Media Processor | HI3516D+Pansonic34229 |
| Image Sensor | 1/3" 2.0 Megapixels Panasonic 34229 CMOS | |
| Effective Pixels | 1920*1080 | |
| Shuttle time | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05Lux/F1.2(Color) 0.01Lux/F1.2(B/W) | |
| Lens Specifications | 3.6mm Fixed Lens | |
| Day/Night Mode | Auto(ICR)/Color/B/W | |
| IR Distance | 24pcs Ø5 LEDs, up to 20m IR distance | |
| WDR | ≥120db | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Image | Compression | H.264/MJPEG/H.265 |
| Max Image Size | 1920(H)x1080(V) | |
| Stream | Dual-stream | |
| Frame Rate | Main Stream : | |
| 1920*1080,1-25(30)fps ; 1280*720,1-25(30)fps | ||
| Sub-stream : | ||
| 704*576,1-25(30)fps 640*352,1-25(30)fps | ||
| 640*480,1-25(30)fps 320*240,1-25(30)fps | ||
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/IUDP/IRTP/IRTSP/IRTCP/IHTTP/IDNS/IDDNS/IDHCP/IFTP/ INTP/IPPPOE/ISMTP/IUPNP |
|
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Motion detect | Support |
| Privacy Zone Masking | Support | |
| Audio in | Support | |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | N/A | |
| Alarm in | Support | |
| Alarm out | N/A | |
| IO Interface | Support (Reset ) | |
| RS485 | Support | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimension | 172*65*62mm | |
| Weight | 0.48Kg |
Our company product obtain CE, RoHS, FCC ,IP66 certifications
