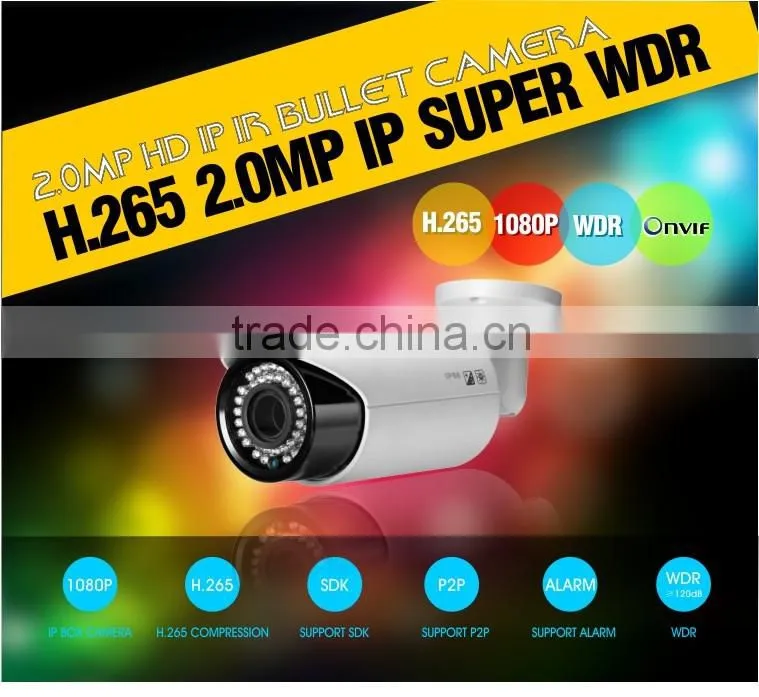

NEW 3516A CCTV Product Camera H.265 1080P Spuer 120DB 120 WDR IR Color Bullet IP Camera
Camera:
1/3" 2.0 Megapixels Progressive Scan Panasonic 34229 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 1920*1080, 0.05 LuxF1.2 (color), 0.01 LuxF1.2 (black and white); TF card slot, IR - CUT (day/night),; H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 2.0 Megapixels Progressive Scan Panasonic 34229 CMOS
2.Max 25/30fps2.0 Megapixels (1920x1080)
3.H.264/H.265 & MJPEG dual-stream encoding
4.Privacy Mask, Motion Detection
5 Support Onvif 2.4 protocol
6.IR Distance 40M
7. TF Card Slot,WDR≥120dB
8.NVR Compatible:Hikvision DaHua &the NVR With onvif Protocols
9.POE function
10.IP66 rating
11.Equipped with bracket

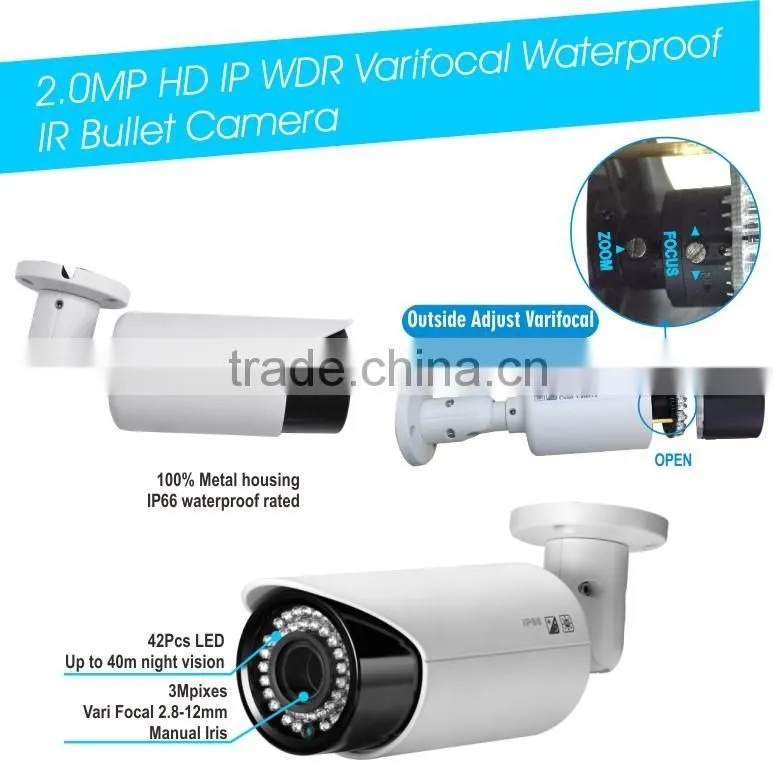

| Mode | Name and Description | ASIH42-B6-3222 2.0MP HD IP WDR varifocal waterproof IR Bullet Camera |
| ASIH42-B6-3222 | ||
| Camera Specification | Media Processor | Hi3516A + PANASONIC 34229 CMOS |
| Image Sensor | 1/3" 2.0 Megapixels Progressive Scan Panasonic 34229 CMOS | |
| Effective Pixels | 1920(H)x1080(V) | |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05 LuxF1.2 (color), 0.01 LuxF1.2 (black and white) | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Lens Specifications | 3Mpixes Vari Focal 2.8-12mm Manual Iris | |
| Day/Night Mode | Auto,dual IR-Cut filter | |
| IR Distance | 40m | |
| WDR Dynamic Range | 120dB | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Digital Denoise | 3D Digital Denoise | |
| Compression | Compression | H.264/MJPEG/H.265 |
| Resolution | 1080P(1920×1080)/960P(1280*960)/720P(1280×720)/D1(704×576)/VGA(640*480)/QVGA(320×240) | |
| Main Stream Frame | 1920×1080(1 ~ 25/60fps) | |
| Sub Stream Frame | D1/VGA/QVGA(1 ~ 25/30fps) | |
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP | |
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Audio in | Support |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | Support | |
| RS422/RS485 | Support | |
| Alarm in | Support | |
| Alarm out | Support | |
| IO Interface | Support | |
| General Parameters | Operating Conditions | -30℃ ~ 60℃,Humidity less than95%(Non-condensing) |
| Power Supply | DC12V±10%/ PoE(Optional) | |
| Power Consumption | <7W | |
| Weather proof rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimensions(mm) | 295x87x87(mm) | |
| Weight(kg) | 0.93kg |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Our company product obtain CE, RoHS, FCC ,IP66 certifications
