New CCTV Camera H.265 4.0MP IP 120dB Super WDR Outside Adjust Lens CMOS Sensor IR Bullet CCTV Camera Surppot Onvif 2.4
DR

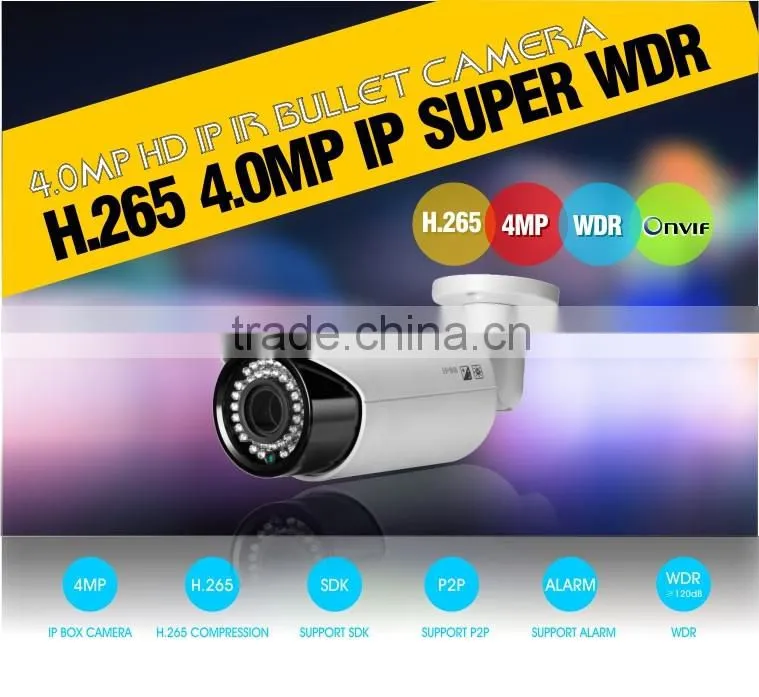

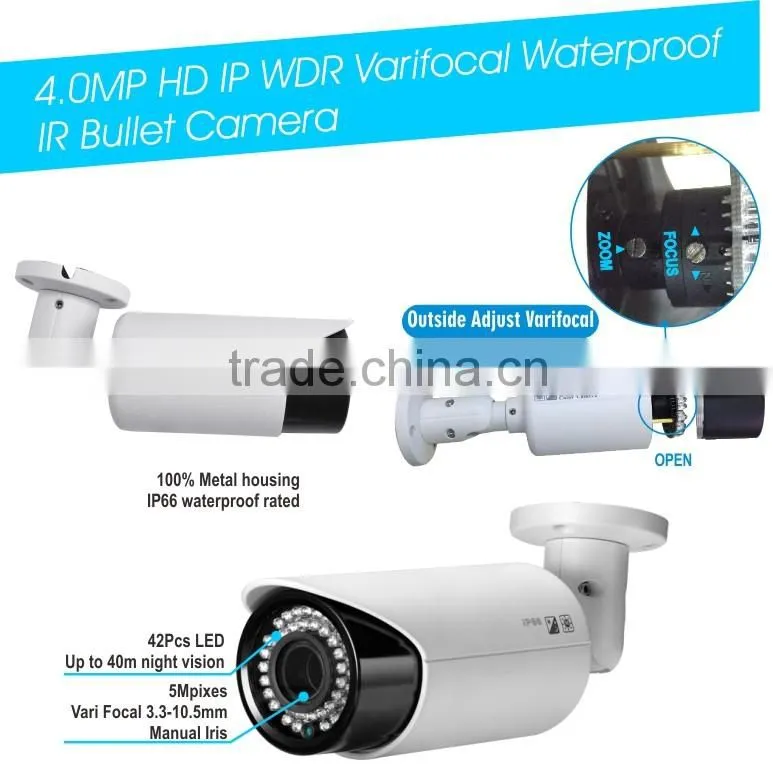

4.0MP HD IP WDR varifocal waterproof IR Bullet Camera
Camera:
1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 2592*1520, 0.05 LuxF1.2 (color); 0.01 LuxF1.2 (black and white ); TF card slot, IR - CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.
Key Features:
1.1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS
2.Max 25/30fps4.0 Megapixels (2592*1520)
3.H.264/H.265 & MJPEG dual-stream encoding
4.Privacy Mask, Motion Detection
5 Support Onvif 2.4 protocol
6.IR Distance 40M
7. TF Card Slot,WDR≥120dB
8.NVR Compatible:Hikvision DaHua &the NVR With onvif Protocols
9.POE function
10.IP66 rating
11.Equipped with bracket
| Mode | Name and Description |
ASIH42-B6-3421 4.0MP HD IP WDR varifocal waterproof IR Bullet Camera |
| ASIH42-B6-3421 | ||
| Camera Specification | Media Processor | Hi3516A + OV 4689 |
| Image Sensor | 1/3” 4.0 megapixels Progressive OV 4689 CMOS | |
| Effective Pixels | 2592(H)x1520(V) | |
| Electronic Shutter Speed | Auto (1/25 ~ 1/10000s) | |
| Min. Illumination | 0.05 LuxF1.2 (color), 0.01 LuxF1.2 (black and white) | |
| S/N Ratio | ≥50db(AGC OFF) | |
| Lens Specifications | 5Mpixes Vari Focal 3.3-10.5mm Manual Iris | |
| Day/Night Mode | Auto,dual IR-Cut filter | |
| IR Distance | 40m | |
| WDR Dynamic Range | 120dB | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Digital Denoise | 3D Digital Denoise | |
| Compression | Compression | H.264/MJPEG/H.265 |
| Resolution | 2592*1520/2048*1520/1080P(1920×1080)/D1(704×576)/VGA(640*480)/QVGA(320×240) | |
| Main Stream Frame | 2592*1520/2048*1520/1080P(1 ~ 25/30fps) | |
| Sub Stream Frame | D1/VGA/QVGA(1 ~ 25/30fps) | |
| Bit Rate | 32KB ~16Mbps; support VBR; CBR | |
| Text Overlay | Channel; Date & Time; Bit Rate | |
| Network | Data Storage | Video record; Picture format |
| Trigger | Manual; Automatic(motion detection; alarm; schedule; cycle ) | |
| Alarm data transmission | FTP; E-mail; Browser; CMS | |
| Protocol | TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP | |
| ONVIF | ONVIF 2.4 | |
| Max. User Access | 10 users; IE; Google; Firefox | |
| Smart Phone | Windows Mobile; iPhone; iPad; Android | |
| Interface | Audio in | Support |
| Audio out | Support | |
| BNC Video out | Support | |
| Memory Card | Support | |
| RS422/RS485 | Support | |
| Alarm in | Support | |
| Alarm out | Support | |
| IO Interface | Support | |
| General Parameters | Operating Conditions | -30℃ ~ 60℃,Humidity less than95%(Non-condensing) |
| Power Supply | DC12V±10%/ PoE(Optional) | |
| Power Consumption | <7W | |
| Weather proof rating | IP66 | |
| Installation | Equipped With Bracket | |
| Dimensions(mm) | 295x87x87(mm) | |
| Weight(kg) | 0.93kg | |
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Our company product obtain CE, RoHS, FCC ,IP66 certifications
