Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 2015 New CCTV Camera Product H.265 Full HD IP Super Low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera With WDR Onvif 2.4

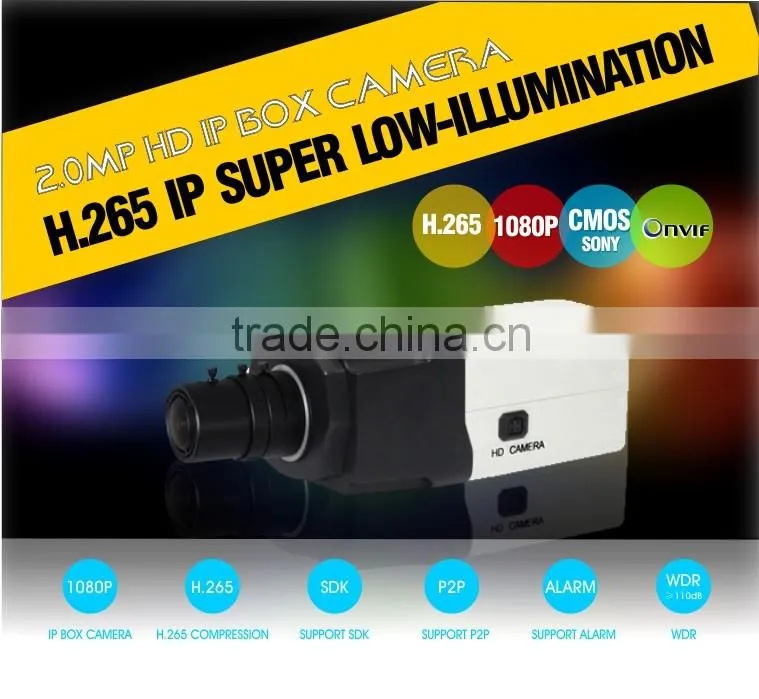

2015 New CCTV Camera Product H.265 Full HD IP Super Low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera With WDR Onvif 2.4

2015 New CCTV Camera Product H.265 Full HD IP Super Low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera With WDR Onvif 2.4 thumbnail-1
2015 New CCTV Camera Product H.265 Full HD IP Super Low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera With WDR Onvif 2.4 photo-1
US$ 189.00 - 189.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASIH30-B7-3221
Contact Supplier Request Quote Chat Now
Shenzhen Anxinshi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AST
Model Number ASIH30-B7-3221
Type IP Camera
Style Box Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof
Detailed Images

2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4

2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4

2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4DR

2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4

2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.42015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.42015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4

2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4



Key Features

Camera:
1/2" 2.0 Megapixels Progressive Scan Sony IMX185 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 1920*1080, 0.001 LuxF1.2 (color); TF card slot, IR – CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.



Key Features:
1.1/2" 2.0 Megapixels Progressive Scan Sony IMX185 CMOS
2.Max 25/30fps2.0 Megapixels (1920×1080)
3.Super low-illumination, 0.001 LuxF1.2 (color)
4.H.264/H.265 & MJPEG dual-stream encoding
5.Privacy Mask, Motion Detection
6.Support Onvif 2.4 protocol, WDR≥110dB
7.Support mobile phone monitoring and P2P function
8.TF Card Slot
9.POE function
10.IP66 rating



Product Description



Mode Name and Description ASIH42-B6-3221 2.0MP HD IP Super low-illumination Box Camera
ASIH42-B6-3221
Camera Specification Media Processor Hi3516A + SONY IMX185 CMOS
Image Sensor 1/2” 2.0 megapixels Progressive Sony IMX185 CMOS
Effective Pixels 1920(H)x1080(V)
Shuttle time Auto (1/25 ~ 1/10000s)
Day/Night Mode Auto(ICR)/Color/B/W
WDR Dynamic Range ≥110dB
White Balance Auto
Gain Control Auto
Noise Reduction 3D
Privacy Masking Up to 4 areas
Compression Compression H.264/MJPEG/H.265
Resolution 1080P(1920×1080)/960P(1280*960)/720P(1280×720)/D1(704×576)/VGA(640*480)/QVGA(320×240)
Main Stream Frame 1920×1080(1 ~ 25/30fps)
Sub Stream Frame D1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate 32KB ~16Mbps; support VBR; CBR
Text Overlay Channel; Date & Time; Bit Rate
Network Data Storage Video record; Picture format
Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
Alarm data transmission FTP; E-mail; Browser; CMS
Protocol TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP
ONVIF ONVIF 2.4
Max. User Access 10 users; IE; Google; Firefox
Smart Phone Windows Mobile; iPhone; iPad; Android
Interface Audio in Support
Audio out Support
BNC Video out Support
Memory Card Support
RS422/RS485 Support
USB Support (64G USB flash/WIFI/3G)
Alarm in Support
Alarm out Support
IO Interface Support
General Parameters Operating Conditions -30℃ ~ 60℃,Humidity less than95%(Non-condensing)
Power Supply DC12V±10%/ PoE(Optional)
Power Consumption <7W
Weather proof rating IP66
Dimensions(mm) 137.5mm×70mm×64mm
Weight(kg) 0.5kg



Packaging & Shipping

 2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4



Size

 2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.42015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4



Our Services



OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.



FAQ
2015 New CCTV Camera Product H.265 Full HD IP Super low-illumination Hi3516A Chipse Sony 185 CMOS Box Camera with WDR Onvif 2.4

Our company product obtain CE, RoHS, FCC ,IP66 certifications
