Linear Multi-turns Ceramic 1k 3296w Potentiometer

Name: Linear Multi-turns Ceramic 1k 3296w Potentiometer
Brand: BONENS
SKU: 101980485
Availability: InStock

US$ 0.025 - 0.15 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BONENS

Model Number:

3296W

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BONENS

Model Number 3296W

Type Trimming Potentiometer

Technology Cermet

Resistance 10Ω~5MΩ

Resistance Tolerance ±10%

Rated Power 0.5W

Max. Operating Voltage 640V

Operating Temperature -55℃~+125℃

Specifications

1.Model:1k potentioemter
2.Rated power: 0.25W
3. Certificate;RoHs,TUV,ISO
4.Withstand voltage: 640V
5.Rated power:0.25w

Linear multi-turns ceramic 1k 3296w potentiometer

3296w multi-turns 12±2 lap trimmer potentiometer, Linear ceramic composition 10Ω~5MΩ

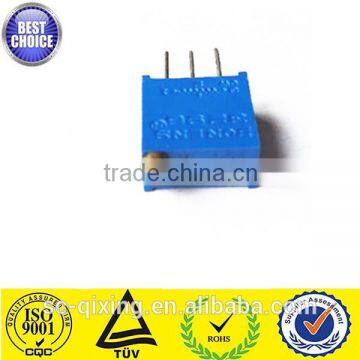

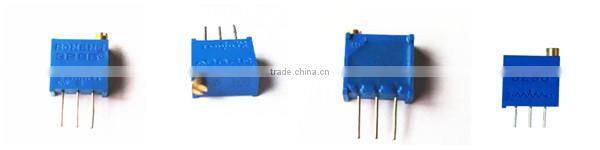

1,Potentiometer Picture:

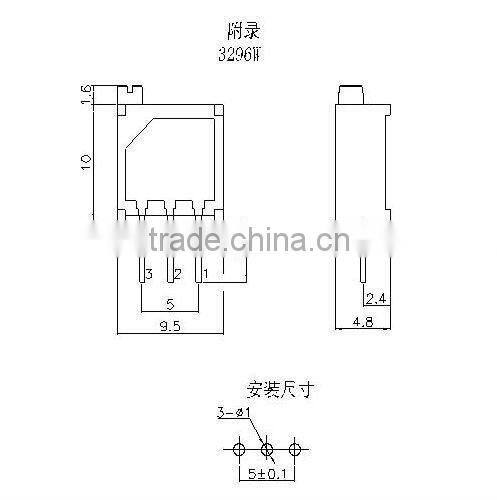

2,Potentiometer Drawing:

3, Characteristics of Potentiometer

Electrical Characteristics	Range of nominal resistance: 10Ω~5MΩ
	Resistance tolerance: ±10%
	Terminal resistance: ≤±1%R or 2Ω
	Contact resistance variation (CRV): ≤±1%R or 3Ω
	Insulation resistance: ≥ 1GΩ (100V AC)
	Withstand voltage: 640V (DC or AC peak value)
	Effective electrical travel: ≥70% of mechanical travel

Environment Characteristics	Rated power: 0.25W ( 300V max)
	Temperature range: -55°C~+125°C
	TCR: ±250×10-6/°C
	Collision (390m/S2, 4000 times): ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h) : ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles): ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2): ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
	Electrical endurance (0.5W, 1000h): ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel: 12±2 lap
	Starting torque: ≤25mN.m
	Standard package	50 pcs /tube(3296W,3296Y)
		40 pcs/tube(3296X,3296Z,3296)
