3329S Single-turn 250V 0.5w Rated Power 5k 50k High Power Potentiometer

Name: 3329S Single-turn 250V 0.5w Rated Power 5k 50k High Power Potentiometer
Brand: Bonens
SKU: 101980495
Availability: InStock

US$ 0.05 - 0.25 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

3329S

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number 3329S

Type Trimming Potentiometer

Technology Cermet

Resistance 10Ω~5MΩ

Resistance Tolerance ±10%

Rated Power 0.5W

Max. Operating Voltage 250V

Operating Temperature -55℃~+125℃

Specifications

1.model:high power potentiometer
2.Certificate:TUV ISO RoHs
3.Factory price,high quality
4.Free sample,fast delivery
5.OEM

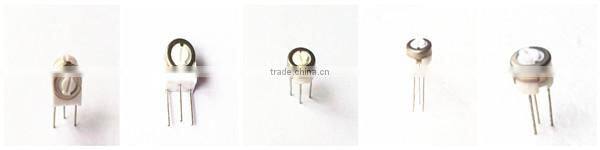

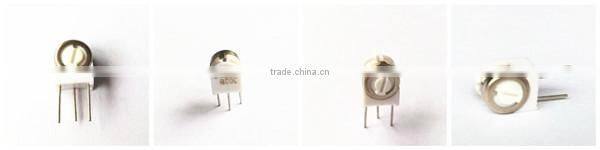

3329S single-turn 250V 0.5w rated power 5k 50k high power potentiometer

3329SSingle turn 280°±10° trimmer potentiometer, Linear ceramic composition 10Ω~5MΩ

◊ Products drawing and parameters:

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	250V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	280°±10°
	Starting torque	≤20mN.m
	Stopper torque	≤50mN.m
	Standard package	50 pcs /tube
