Specifications
1,3296 trimming potentiometer2,RHOS ISO certification
3,glass glaze potentiometer
petitive price and high quality
|

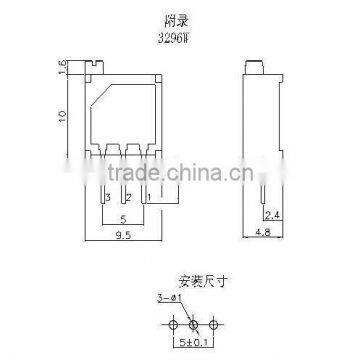

3296W Potentiometer
| ||||||
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω | |||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||
| Insulation resistance | ≥ 1GΩ (100V AC) | |||||
| Withstand voltage | 640V (DC or AC peak value) | |||||
| Effective electrical travel | ≥70% of mechanical travel | |||||
| Environment Characteristics | Rated power | 0.25W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |||||
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |||||
| Physical Characteristics | Total mechanical travel | 12±2 lap | ||||
| Starting torque | ≤25mN.m | |||||

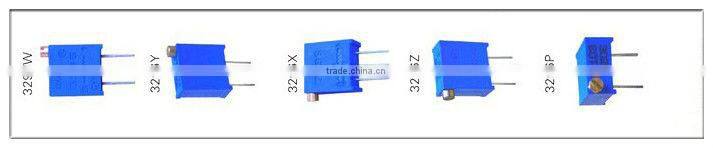

| Standard package | 50 pcs /tube(3296W,3296Y) | |||||
| 40 pcs/tube(3296X,3296Z,3296P | ||||||
Related Potentiometer:
Featured Products :
Advantage of choosing our company and products:
Ø Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wirewound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
Ø The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
Ø Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
Ø Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .
