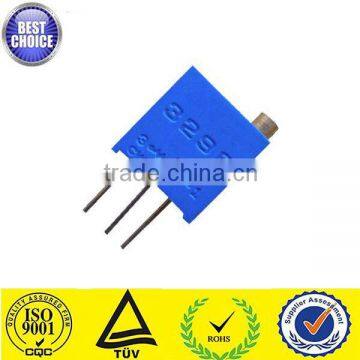

3296Y Multi-turn Cermet Trimmer Potentiometer 500 Ohm 3.3K Ohm 4.7k Ohm, 4k7 Ohm
US$ 0.04 - 0.05
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
3296Y
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou or other ports
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cermet, Trimming, Multi Turns 3059 PotentiometerUS$ 0.6 - 0.7MOQ: 100 Pieces -
Multi-turns Trimming Potentiometers 3266WUS$ 0.08 - 0.1MOQ: 1000 Pieces
-
Multi Turns Trimmer Potentiometers 3266 B503 50k PotUS$ 0.08 - 0.1MOQ: 1000 Pieces
-
Cermet Multi Turns Trimmer Potentiometer 3266YUS$ 0.07 - 0.2MOQ: 1000 Pieces
-
Single-turn Trimmer Potentiometer 3323NegotiableMOQ: 1000 Pieces
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
3296Y
Type
Trimming Potentiometer
Technology
Cermet
Resistance
10 -5M Ω
Resistance Tolerance
+/-10%
Rated Power
0.5W
Max. Operating Voltage
640V
Operating Temperature
-55 to 125
Specifications
1.3296Y series2. ISO manufactory RoHS compliant
3. free sample
4. Bourns quality lower price
5. fast delivery
|

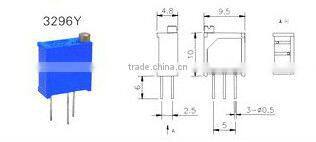

0.5W 329Ymulti-turn cerment trimmer potentiometer
| ||||||
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance | ±10% | |||||
| Terminal resistance | ≤±1%R or 2Ω | |||||
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | |||||
| Insulation resistance | ≥ 1GΩ (100V AC) | |||||
| Withstand voltage | 640V (DC or AC peak value) | |||||
| Effective electrical travel | ≥70% of mechanical travel | |||||
| Environment Characteristics | Rated power | 0.25W ( 300V max) | ||||
| Temperature range | -55°C~+125°C | |||||
| TCR | ±250×10-6/°C | |||||
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |||||
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R | |||||
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |||||
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |||||
| Mechanical endurance (200 cycles) | ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω | |||||
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |||||
| Physical Characteristics | Total mechanical travel | 12±2 lap | ||||
| Starting torque | ≤25mN.m | |||||
| Standard package | 50 pcs /tube(3296W,3296Y) | |||||
| 40 pcs/tube(3296X,3296Z,3296P | ||||||
trimmer potentiometer
