8mm Knob Potentiometers 3386MP

Name: 8mm Knob Potentiometers 3386MP
Brand: BONENS
SKU: 101979861
Availability: InStock

US$ 0.04 - 0.05 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

BONENS

Model Number:

3386MP, 3386MP

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name BONENS

Model Number 3386MP, 3386MP

Type Trimming Potentiometer

Technology Ceramic Composition

Resistance 10Ω~5MΩ

Resistance Tolerance ±10%

Rated Power 0.5W

Max. Operating Voltage 500V

Operating Temperature -55℃~+125℃

Specifications

1.3386MP single turn cermet trimmer Potentiometers
2.10ohm~5M
3.RoHS ISO compliant
4,high quality,fast delivery

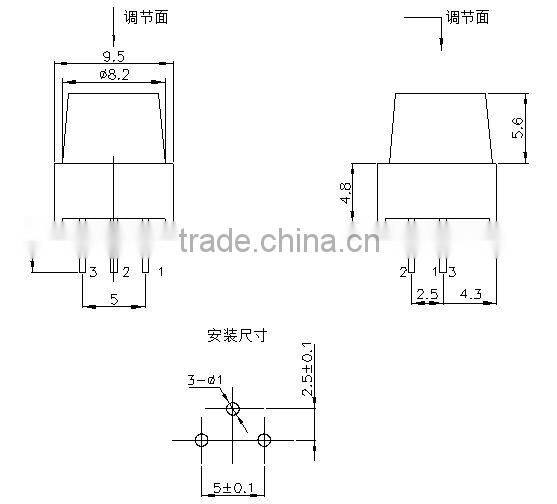

8mm knob Potentiometers 3386MP

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Effective electrical travel	≥250°

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω), Insulation Resistance ≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	300°±10°
	Starting torque	≤20mN.m
	Stopper torque	≤75mN.m
	Standard package	50 pcs /tube
