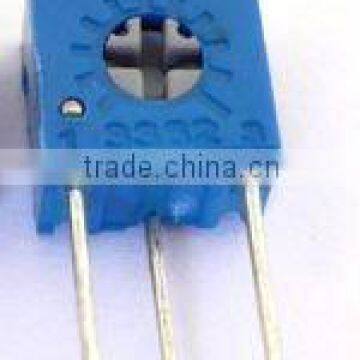

Miniature Potentiometer 10 Turns Trimming Potentiometer 3362S

Name: Miniature Potentiometer 10 Turns Trimming Potentiometer 3362S
Brand: Bonens
SKU: 101979901
Availability: InStock

Sichuan Qixing Electronics Co., Ltd.

US$ 0.01 - 0.1 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

3362S

Payment & Shipping

Payment Methods:

Port of Shipment:

guangdong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number 3362S

Type Other, Trimming Potentiometer, S

Technology Ceramic Composition

Resistance 10Ω~5MΩ

Resistance Tolerance ±10%

Rated Power 0.25W(70℃,300V max)

Max. Operating Voltage 500V(DC or AC Peak Value

Operating Temperature -55℃~+125℃

Specifications

1.3362S cermet Trimming Potentiometer, single turn
2.TUV audited factory
3.Easy to install
4.RoHS
5.in stock, fast delivery

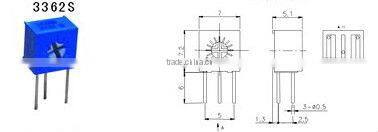

miniature potentiometer 10 turns

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.25W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ
	Electrical endurance (0.25W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	260°±10°
	Starting torque	≤20mN.m
	Stoper torque	≥50mN.m
	Standard package	50 pcs /tube
