Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Preset Multiturn Cermet Trimmer Precision Potentiometers 3296P for Volume Cntrol

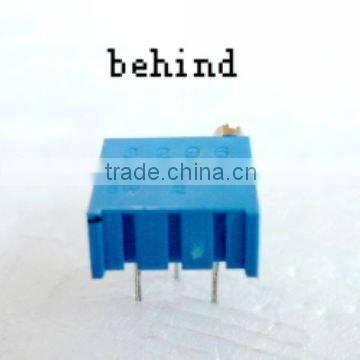

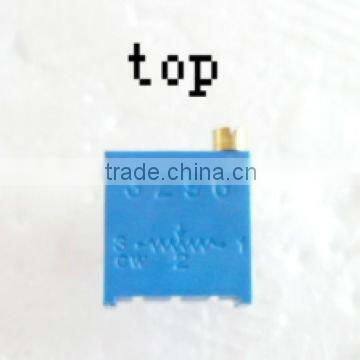

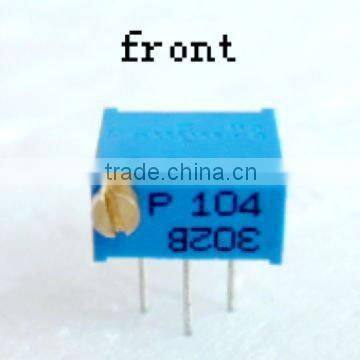

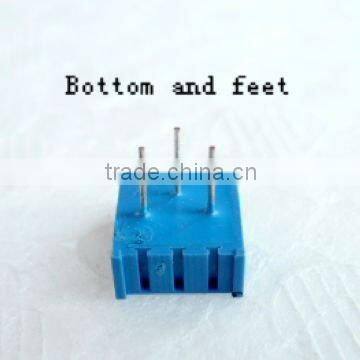

Preset Multiturn Cermet Trimmer Precision Potentiometers 3296P for Volume Cntrol
US$ 0.06 - 0.09
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
BONENS
Model Number:
3296
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100K Ohm 3362W-104 3362 P Trim Pot Trimmer Variable Resistor Potentiometer (Pack Of 50)US$ 0.01 - 0.1MOQ: 1000 Pieces -
3386MP Long Knob Trimmer PotentiometersUS$ 0.06 - 0.09MOQ: 500 Pieces
-
8mm Knob Potentiometers 3386MPUS$ 0.04 - 0.05MOQ: 1 Piece
-
103 104 1M Ohm 3323P Trimming PotentiometerUS$ 0.01 - 1.5MOQ: 1000 Pieces
-
Trimmer Potentiometers 3296X 10KUS$ 0.01 - 0.9MOQ: 500 Pieces
Place of Origin
Sichuan, China
Brand Name
BONENS
Model Number
3296
Type
Trimming Potentiometer
Technology
Cermet
Resistance
10Ω~5M Ω
Resistance Tolerance
±10%
Rated Power
0.5W
Max. Operating Voltage
640V
Operating Temperature
-55℃~+125℃
through hole potentiometer
| Electrical Characteristics | Range of nominal resistance | 10Ω~5MΩ | ||||
| Resistance tolerance |
±10% |
|||||
| Terminal resistance |
≤±1%R or 2Ω |
|||||
| Contact resistance variation (CRV) |
≤±1%R or 3Ω |
|||||
| Insulation resistance |
≥ 1GΩ (100V AC) |
|||||
| Withstand voltage |
640V (DC or AC peak value) |
|||||
| Effective electrical travel |
≥70% of mechanical travel |
|||||
| Environment Characteristics |
Rated power | 0.25W ( 300V max) | ||||
| Temperature range | -55°C~+125°C |
|||||
| TCR |
±250×10-6/°C |
|||||
| Collision (390m/S2, 4000 times) |
ΔR≤±1%R |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
|||||
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) |
ΔR≤±2%R, ΔUab/Uac≤±2%R |
|||||
| Climate category (IEC68-2-2) |
ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ |
|||||
| Electrical endurance (0.5W, 1000h) |
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω |
|||||
| Mechanical endurance (200 cycles) |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
|||||
| Physical Characteristics | Total mechanical travel | 12±2 lap | ||||
| Starting torque | ≤25mN.m |
|||||
| Standard package |
50 pcs /tube(3296W,3296Y) |
|||||
|
40 pcs /tube(3296X,3296Z,3296P) | ||||||
