Single Turn 6mm Potentiometer 3362P
US$ 0.045 - 0.06
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
3362p
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Preset Precision Trimming Preset Potentiometers 3362RUS$ 0.05 - 0.06MOQ: 1 Piece -
3323P Single Turn Cermet Trimming Potentiometers 504(500k)US$ 0.05 - 0.1MOQ: 1000 Pieces
-
3386W Single Turn Trimmer PotentiometersUS$ 0.07074 - 0.1MOQ: 1000 Pieces
-
3362P Trimpot Trimming Cermet Linear PotentiometerUS$ 0.06 - 0.15MOQ: 100 Pieces
-
Trimmer Potentiometer 3323V B104 PotentiometerUS$ 0.07 - 0.2MOQ: 1000 Pieces
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
3362p
Type
Trimming Potentiometer
Technology
Cermet
Resistance
10Ω~5MΩ
Resistance Tolerance
±10%
Rated Power
0.25W
Max. Operating Voltage
500V(DC or AC peak value)
Operating Temperature
-55℃~+125℃

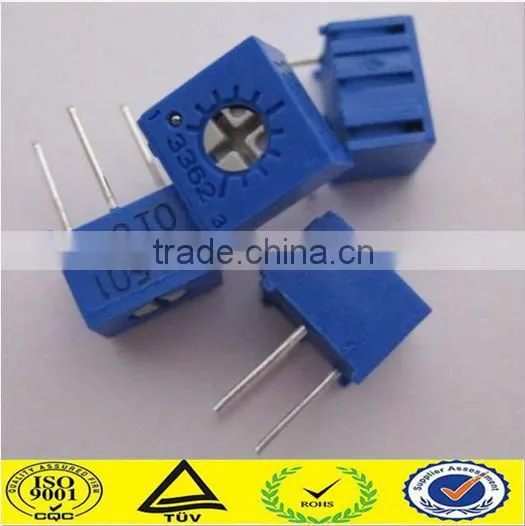

Single turn 6mm potentiometer 3362P
1. 3362P Potentiometer, single turn, trimming, 0.25W
|
|
| 2. Electrical Characteristics |
| Range of nominal resistance: 10Ω~5MΩ |
| Resistance tolerance: ±10% |
| Terminal resistance: ≤±1%R or 2Ω |
| Contact resistance variation (CRV): ≤±1%R or 3Ω |
| Insulation resistance: ≥ 1GΩ (100V AC) |
| Withstand voltage: 500V (DC or AC peak value) |
| Effective electrical travel≥200° |
| 3. Environment Characteristics |
| Rated power: 0.25W (70°C, 300V max) |
| Temperature range: -55°C~+125°C |
| TCR: ±250×10-6/°C |
| Collision (390m/S2, 4000 times): ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles): ΔR≤±2%R, ΔUab/Uac≤±2%R |
| Climate category (IEC68-2-2): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
| Electrical endurance (70°C, 0.25W, 1000h): ΔR≤± (5%R+0.1Ω), CRV≤±3%R or 5Ω |
| Mechanical endurance (200 cycles): ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
| Steady damp heat (IEC68-2-3, Ca, 96h): ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ |
| 4. Physical Characteristics |
| Total mechanical travel: 260°±10° |
| Starting torque: ≤20mN.m |
| Stopper torque: ≥50mN.m |
| Standard package: 50 pcs /tube |

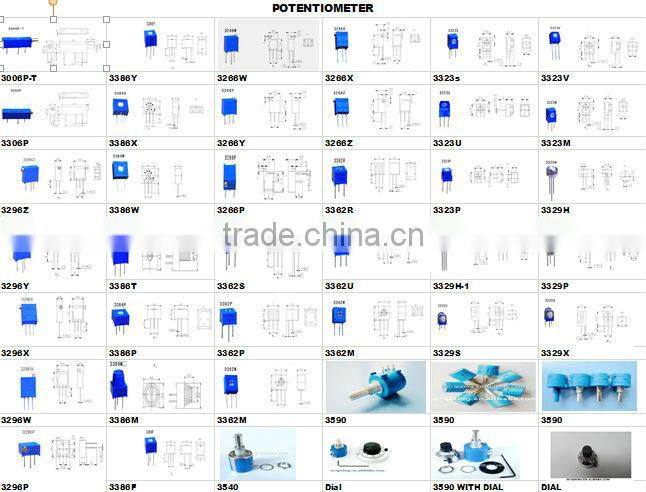

5. We can also provide you with the followig potentiometers:
5.
6.
7.
8. Some parts of our certificates:
9. Please contact me for details:
Skype ID:
QQ ID : 865125858
Tel : +86-18780289151
FAX: +86-82632683
