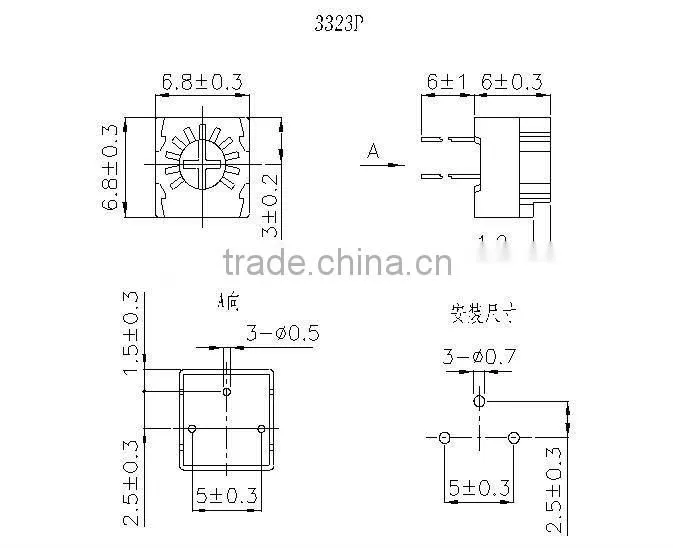

3323P single turn cermet Trimming potentiometers 504(500k)

FOB Price

USD $0.05 - $0.1 / Piece

1000 Pieces(Min.Order)

Product Details

Place of Origin:	Sichuan, China	Brand Name:	Bonens	Model Number:	3323p
Type:	Other, Trimming Potentiometer, 3323P	Technology:	Cermet	Resistance:	10Ω~5MΩ
Resistance Tolerance:	±10%,±5%	Rated Power:	0.5W	Max. Operating Voltage:	300V
Operating Temperature:	-55℃~+125℃

1.3323P Trimming potentiometer,single-turn
2.RoHS ISO compliant
3.Good quantity,Best price,
4.In stock,fast delivery

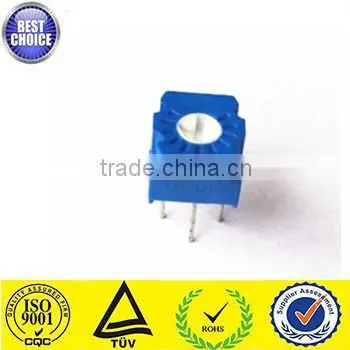

3323P ceramic Trimming potentiometer ,single turn

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	270°±10°
	Starting torque	≤20mN.m
	Stoper torque	≥50mN.m
	Standard package	50 pcs /tube
