Specifications
1.Temperature: -45~ +20'C .2.modified atmosphere cold storage
3.Easy to use and maintenance.
4.Energy saving,ISO9001,CE
modified atmosphere cold storage
Feature of modified atmosphere cold storage
1.Temperature: -45~ +20'C
2.Size: Customization.
3.ISO9001,CE,Turnkey projects.
4.Components: Condensing unit, evaporator, PU panel, cold room door
5.Functions: freshkeeping storage for food refrigeration, industry refrigeration, fresh preservation of fruits and vegetables, large supermarket, cold storage of hotels ect.
6.Compressor brand: Bitzer,Emerson copeland,Danfoss,Tecumseh4.ISO9001,CE,Turnkey projects.
7.Easy installation,economical and energy saving,environmental friendly,reliable quality,professional service
8.Excellent quality ,Dependable performance,Easy installation,Economical and Energy saving,Environmental friendly,Reliable quality,Professional service.
| Size: Customization. | |||
| Classification | Small | Middle | Large |
| Volume Range | <500m3 | 500~10000m3 | >10000m3 |

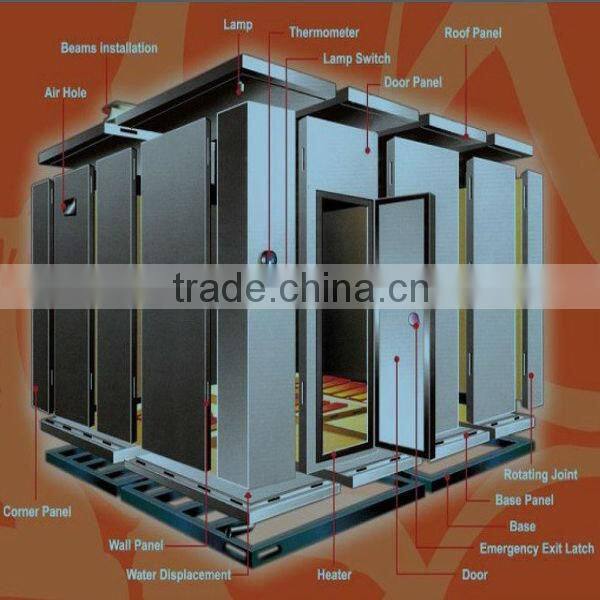

Components for modified atmosphere cold storage :
1.Condensing unit for modified atmosphere cold storage :
Bitzer,Emerson copeland,Danfoss,Tecumseh
Air Cooled Type |
Conderser Fan |
Water Cooled Type |
water cooled condenser and cooling tower |
Evaporative Cooled Type |
Evaporative Condenser |
2.High efficiency air-cooler:
Customized air-cooler.
Water defrosting or electrical deforesting evaporator defrost faster, save operating costs.
3.Insulation Panel for modified atmosphere cold storage :
Use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Thickness of cold room panel |
Application temperature |
50mm |
Temperature 5°C or above |
75mm |
Temperature -5°C or above |
100mm |
Temperature -25°C or above |
150mm |
Temperature -45°C or above |
200mm |
Temperature -55°C or above |

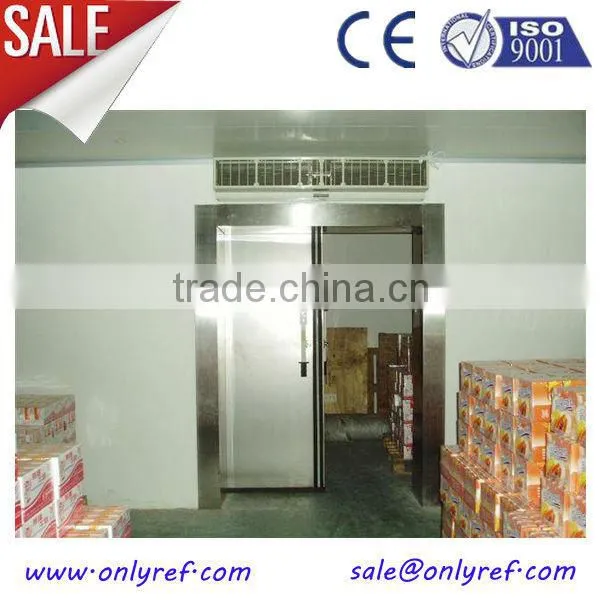

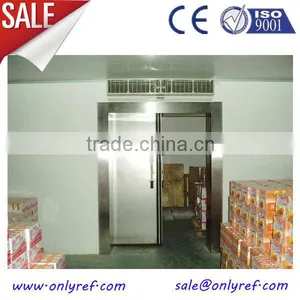

4.Doors for modified atmosphere cold storage :
1.Swing door and sliding door for choice.
2.Swing door:manual opened,automatic,etc.
3.Door board made with special pressing technology PU material.
4.Door frame:color steel or stainless steel.
5.Surface material:color steel or stainless steel with protecting film.
5.Other accessories for modified atmosphere cold storage : world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Applications:
Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical, Electronics,etc.
Storage products |
Storage temperature approach |
Vegetables, Fruit chlling storage |
-5~5 'C |
Drink, Beer chilling storage |
2~8'C |
Meat, Fish freezing storage |
-18~-25'C |
Meat, Fish blast freezer |
-35~-40'C |
Medicine chilling storage |
2-8'C |
Medicne freezing storage |
-20'C |
Our advantages:
1.ORGREN Cold room have abundant experience in trading and installation abroad for many years..
2.ORGREN can provide the most reasonable configuration and price of cold room for customers.
Customer case:
It is portable cold room with high insulating PU Panel, reliable quality compressor and unit cooler, and other accessories. the size depends on your stock tons and temperature.
We can do customized dimension according to customers'requirements. We have access to all the leading Cold Room refrigerators brands and can offer independent advice, and recommend the right equipment to meet your business requirements.
To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1. what is your cold room used for?
2. what is your required room temperature?
3. what is the cold room dimension or how much food or otherproducts will be put inside?
4. what is your voltage, phase and hertz?
5. what is your refrigerant?
Service Schedule:
