Specifications
1.Temperature: -45~ +20'C .supermarket walk-in cooler for lemon in africa
3.Easy to use and maintenance.
4.Energy saving,
supermarket walk-in cooler for lemon in africa
General Introduction:
We are professional in manufacturing and constructing modular walk-in cooler and freezer cold room plant and refrigerated cold storage warehouse, which fit a wide variety of applications in supermarkets, chained restaurants, food processors, hotels, non-staple seafood, grocery stores, industry, pharmacies and institutes, to name a few.
Designed according to the exact specifications of the customer, our cold storage room can be constructed into different height, width, length and types all with ease of assembly.
Our Advantages:
1. The Proof of Quality:Now we have customers in different countries and places, such as Canada, USA, Australia, New Zealand, Singapore, Argentina, Middle- East, Africa…
2. The Guarantee of Quality:Reasonable design, Professional technicians, Stable production workers, Full-scale Equipments, Strict QA & QC system…
3. Custom-made Design: We supply our design drawing according to customer practical situation.
4. Technique Support:
Walk in cold room: we supply our diagrammatic drawing, feel easier for installation.
Cold storage warehouse: We have nearly 20 professional engineers who can go aboard to supply technology support and direction, until turn key for our customers.
5. International Trade Operation: We have concentrated on international trade of cold storage room line for more than 10 years, accumulated various experience from different customers of different countries. So we can update our operation in time according to our customers and new rules. It is helpful to clear custom and save cost and time for our customers.
| Size: Customization. | |||
| Classification | Small | Middle | Large |
| Volume Range | <500m3 | 500~10000m3 | >10000m3 |
Components for supermarket walk-in cooler for lemon in africa :

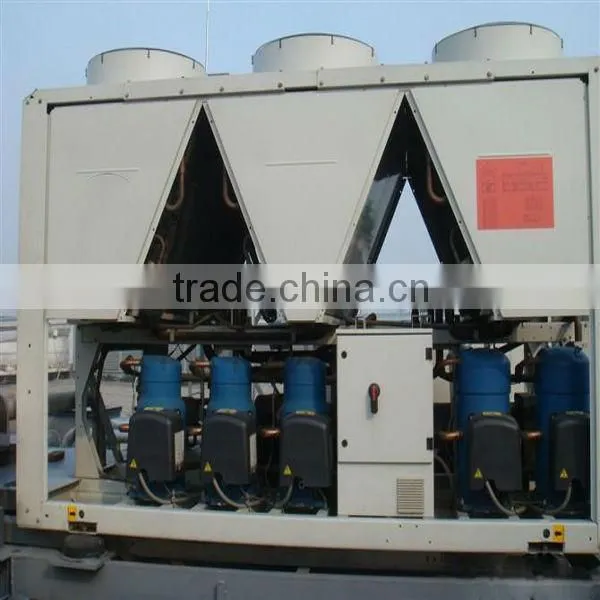

1.Condensing unit:
Bitzer,Emerson copeland,Danfoss,Tecumseh
Air Cooled Type |
Conderser Fan |
Water Cooled Type |
water cooled condenser and cooling tower |
Evaporative Cooled Type |
Evaporative Condenser |

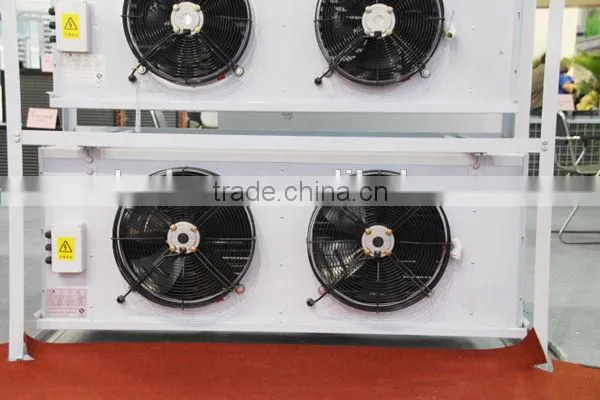

2.High efficiency air-cooler:
Customized air-cooler.
Water defrosting or electrical deforesting evaporator defrost faster, save operating costs.

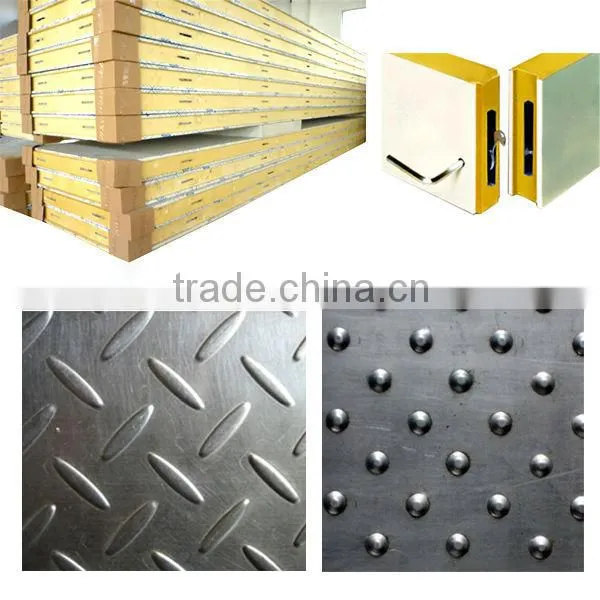

3.Insulation Panel:
Use 100%polyurethane insulation panel,density about 38~46kg/m3,with gasket,with flame retardant,panel thickness:100mm~200mm, standard width of panel is 960mm
Polyurethane insulation board design for cold room, the main steel structure to facilitate construction. Portable sliding doors, and out of cold storage more convenient, easy to operate.
Thickness of cold room panel |
Application temperature |
50mm |
Temperature 5°C or above |
75mm |
Temperature -5°C or above |
100mm |
Temperature -25°C or above |
150mm |
Temperature -45°C or above |
200mm |
Temperature -55°C or above |
Panel Thickness Table Due to 300c-450c and K Value Table
mm |
m2K |
m2h°C |
°C |
50 |
0.315 |
0.270 |
+10°C / 5°C |
75 |
0.238 |
0.205 |
+5°C / -5°C |
100 |
0.188 |
0.162 |
-5°C / -12°C |
120 |
0.155 |
0.132 |
-12°C / -20°C |
150 |
0.126 |
0.109 |
-20°C / -30°C |
200 |
0.095 |
0.800 |
-30°C / -40°C |
4.Doors:
1.Swing door and sliding door for choice.
2.Swing door:manual opened,automatic,etc.
3.Door board made with special pressing technology PU material.
4.Door frame:color steel or stainless steel.
5.Surface material:color steel or stainless steel with protecting film.

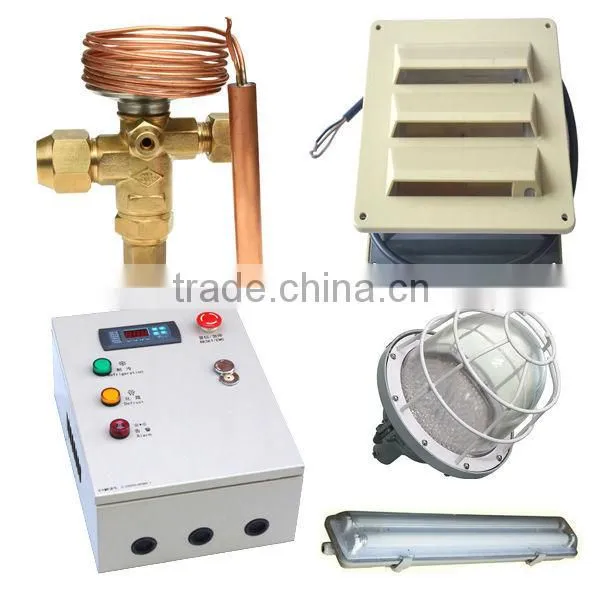

5.Other accessories: world-famous brands, like Danfoss, Castle, Every Control, Siemens, LG
Applications:
Food (meat, vegetable, fruit, dairy, drink), Medicine, Chemical, Electronics,etc.
Storage products |
Storage temperature approach |
Vegetables, Fruit chlling storage |
-5~5 'C |
Drink, Beer chilling storage |
2~8'C |
Meat, Fish freezing storage |
-18~-25'C |
Meat, Fish blast freezer |
-35~-40'C |
Medicine chilling storage |
2-8'C |
Medicne freezing storage |
-20'C |

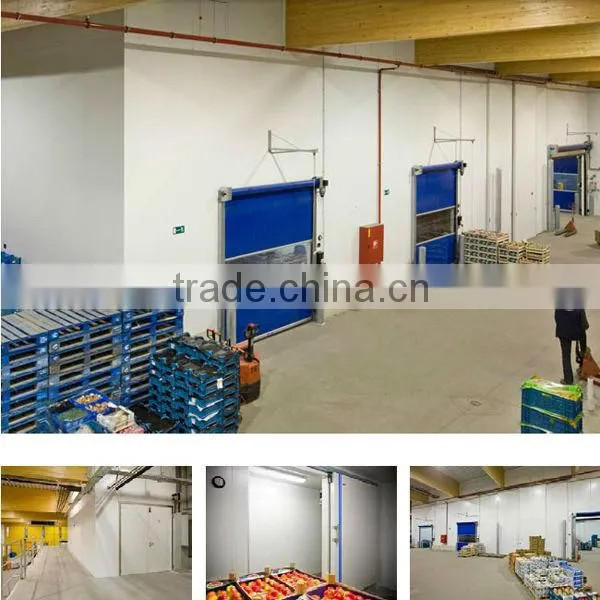

Customer case:
To make a fast and detailed quotation for you,we would like you to answer some questions about this product as following:
1. what is your cold room used for?
2. what is your required room temperature?
3. what is the cold room dimension or how much food or otherproducts will be put inside?
4. what is your voltage, phase and hertz?
5. what is your refrigerant?
Go on, compare us with our competitors! We think you’ll be pleasantly surprised.
