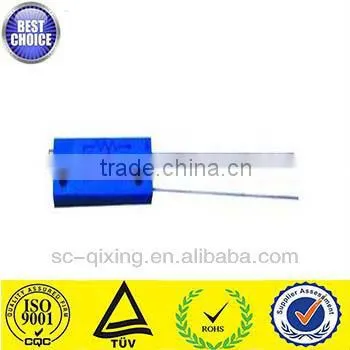

3059 Long Pin Joystick Potentiometers

3059 Long Pin Joystick Potentiometers thumbnail-1
3059 Long Pin Joystick Potentiometers photo-1
US$ 0.001 - 0.8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
3059 potentiometer
Contact Supplier Request Quote Chat Now
Sichuan Qixing Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Bonens
Model Number 3059 potentiometer
Type Trimming Potentiometer
Technology Cermet
Resistance 10Ω~5MΩ
Resistance Tolerance ±10%
Rated Power 0.5W ( 300V max)
Max. Operating Voltage 640V
Operating Temperature -55℃~+125℃

Specifications

1.Top quality
2.In stock product
3.Reliable supplier
4.Safe transport
5.ISO9000,TUV

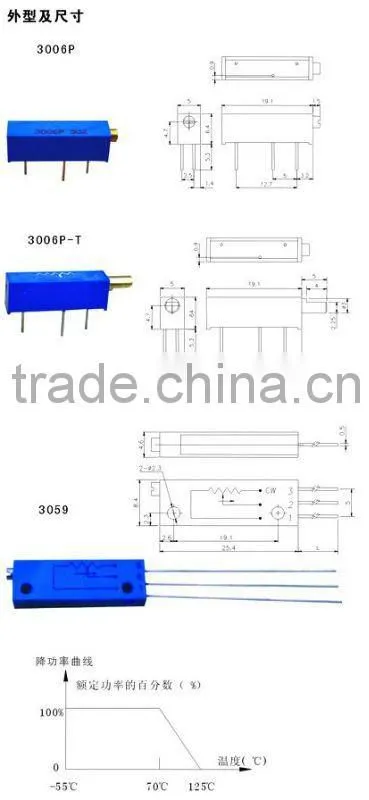

 3006 Trimmer potentiometer

3059 long pin joystick potentiometers

  3059 long pin joystick potentiometers



Some parts of our certificates

 3059 long pin joystick potentiometers

Advantage of choosing our company and products:

1.Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.

2.The established maxim of our company is technical innovation, keeping improvement and meet customer demands.

3.Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.

4.Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .

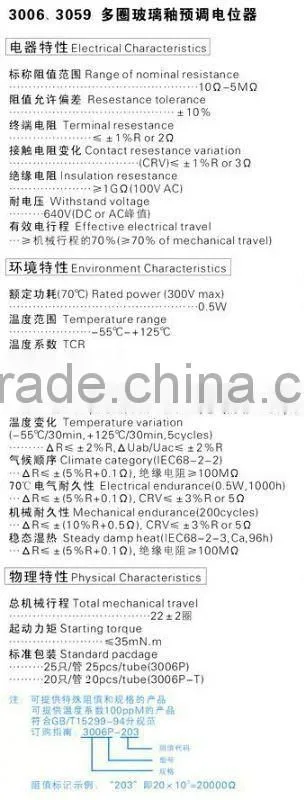

Characteristics

Range of nominal resistance

10Ω~5MΩ

Resistance tolerance


±10%

Terminal resistance


≤±1%R or 2Ω

Contact resistance variation (CRV)


≤±1%R or 3Ω

Insulation resistance


≥ 1GΩ (100V AC)

Withstand voltage


640V (DC or AC peak value)

Effective electrical travel


≥70% of mechanical travel





Environment Characteristics

Rated power

0.5W ( 300V max)

Temperature range


-55°C~+125°C

TCR


±250×10-6/°C

Collision (390m/S2, 4000 times)


ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h)


ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation (-55°C/30min,
 +125°C/30min, 5 cycles)

ΔR≤±2%R,
 ΔUab/Uac≤±2%R

Climate category (IEC68-2-2)


ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

Electrical endurance (0.5W, 1000h)


ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω

Mechanical endurance (200 cycles)


ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

Steady damp heat (IEC68-2-3, Ca, 96h)


ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ



Physical Characteristics

Total mechanical travel

22 ° ±  2°

Starting torque


≤35mN.m

Standard package


 25 pcs /tube





Website: https://img13.fr-trading.com/

Function of potentiometer:

A potentiometer is a manually adjustable electrical resistor that uses three terminals. It is a simple electro-mechanical transducer. It converts rotary or linear motion from the operator into a change of resistance, and this change is used to control the levels of output. It is sometimes known as POTS.Potentiometer is an adjustable electronic components,which plays main roles in the circuit on the following several aspects

1.As a voltage divider:Potentiometer is a continuously adjustable resistor. When potetiometer’s stem or sliding handle move on the resistor body, the output of the potentiometer can be obtained output of voltage with certain related to the potentiometer applied voltage and movable arm or travel .

2.As a variable resistor :When potentiometer is used as a rheostat, it should be taken into two end devices.Thus within the limited travel range of potentiometer,which can be gotten smooth, continuously changable resistance value.

3.As the current controller :Potentiometer is used as the current controller, one of the designate current output must be sliding contact terminal.

4.Application of potentiometers

•Linear displacement measurement

•Rotary displacement measurement

•Volume control

•Brightness control

•Liquid level measurements using floats
