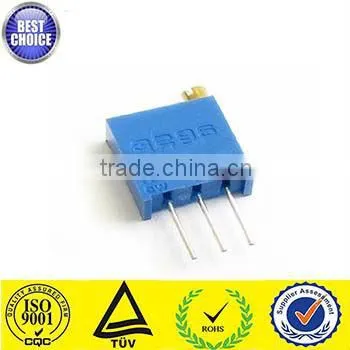

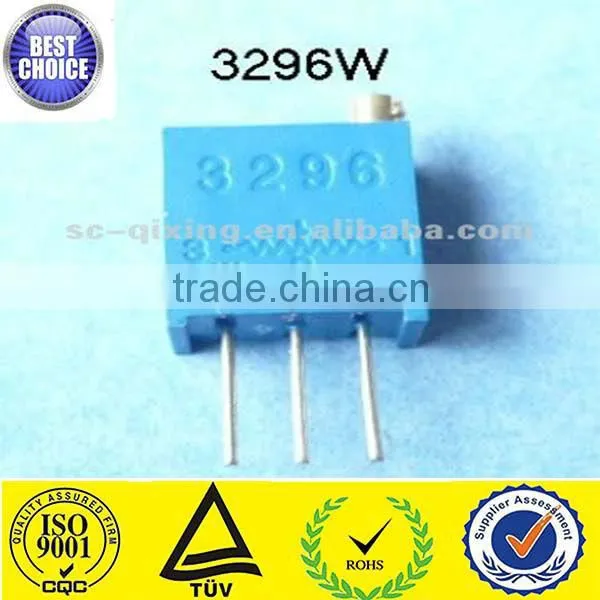

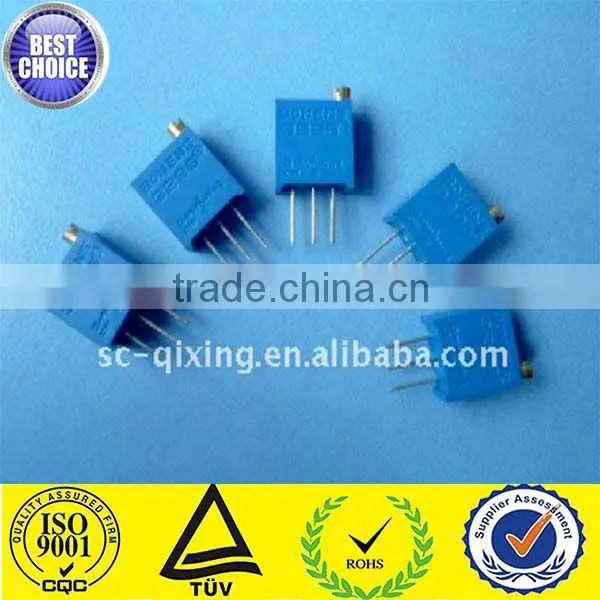

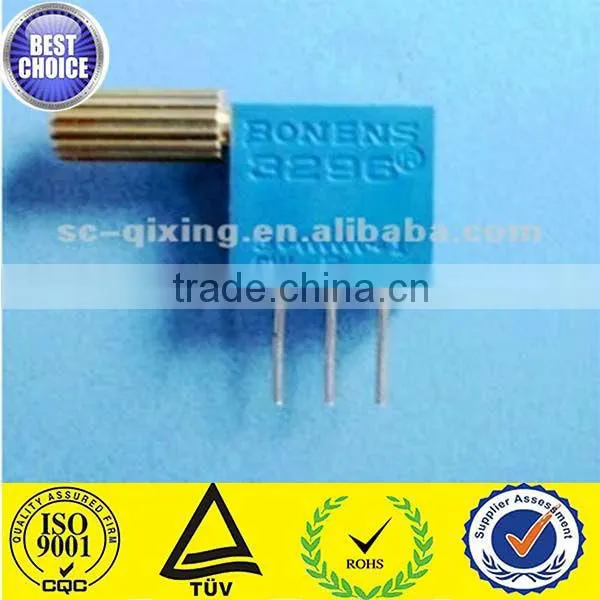

New Style Trimming Potentiometer 3296w Rotary Single Potentiometers Adjustable Potentiometer

Electrical Characteristics

Range of nominal resistance

10Ω~5MΩ

Resistance tolerance

±10%

Terminal resistance

≤±1%R or 2Ω

Contact resistance variation (CRV)

≤±1%R or 3Ω

Insulation resistance

≥ 1GΩ (100V AC)

Withstand voltage

640V (DC or AC peak value)

Effective electrical travel

≥70% of  mechanical travel



Environment Characteristics

Rated power

0.25W ( 300V max)

Temperature range


-55°C~+125°C

TCR

±250×10-6/°C

Collision (390m/S2, 4000 times)

ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h)

ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation (-55°C/30min,
 +125°C/30min, 5 cycles)

ΔR≤±2%R,
 ΔUab/Uac≤±2%R

Climate category (IEC68-2-2)

ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

Electrical endurance (0.5W, 1000h)

ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω

Mechanical endurance (200 cycles)

ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

Steady damp heat (IEC68-2-3, Ca, 96h)

ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics

Total mechanical travel

12±2 lap

Starting torque


≤25mN.m

Standard package

 50 pcs /tube(3296W,3296Y)

40 pcs /tube(3296X,3296Z,3296P)
