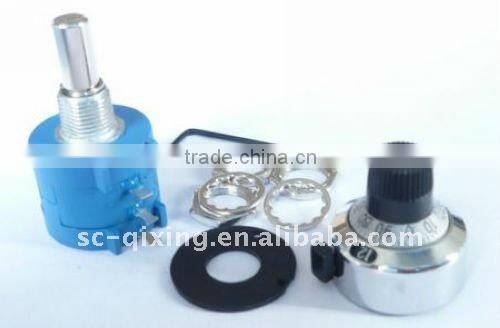

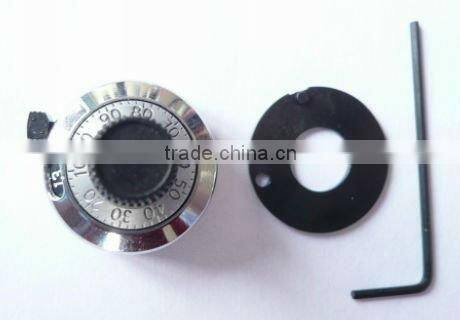

Metal Potentiometer Knob

Name: Metal Potentiometer Knob
Brand: Bonens
Availability: InStock

FOB Price

US$ 6 - 8 / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

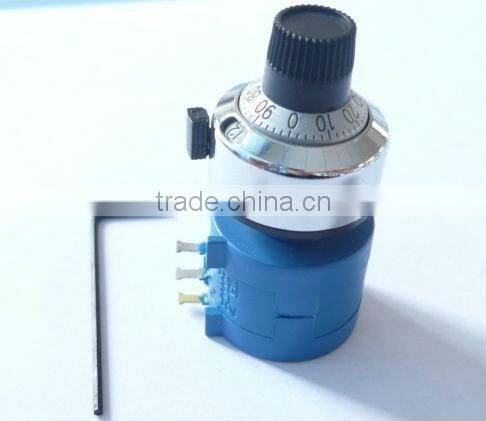

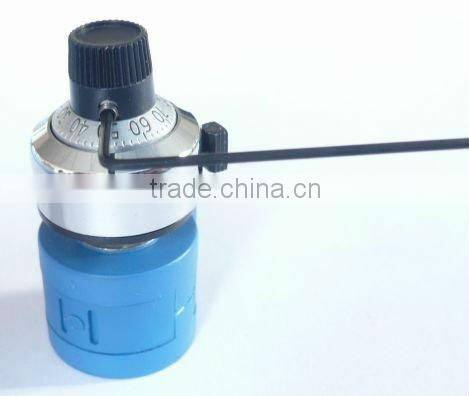

1,WXD3590S Wirewound Potentiometer dials
2.RoHS compliant
4,Fast delivery
5,Free sample

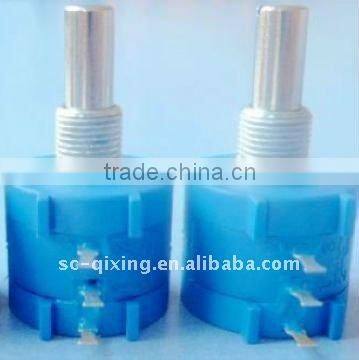

WXD 3590 Wire-wound multiturn Potentiometer Dials

Electrical Characteristics	Range of nominal resistance	100~100KΩ
	Resistance tolerance	±2%, ±5%
	Terminal resistance	≤2%R or 5Ω
	Peak noise	≤100Ω
	Linear accuracy	±1%, ±0.5%
	Electrical angle	3600°±10°
	Insulation resistance	≥ 200MΩ
	Withstand voltage	500V (DC or AC peak value)

Environment Characteristics	Rated power	2W (70°C)
	Temperature range	-55°C~+125°C
	TCR	±100×10-6/°C
	Temperature shock	ΔR≤±3%R
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability)	ΔR≤±3%R, Insulation Resistance≥100MΩ
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, Electrical break≤100μS
	Climate category(IEC68-2-2)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque≤20mN.m
	Operation at low temperature (-55°C, 4h)	ΔR≤±3%R, Starting Torque≤20mN.m
	Rotational life(10000cscles)	ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m
	Electrical endurance (70°C, 2W, 1000h)	ΔR≤±3%R
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m

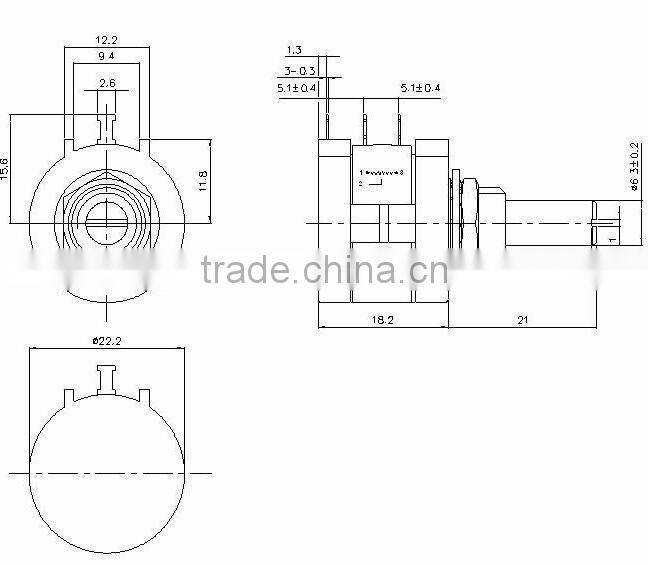

Physical Characteristics	Total mechanical travel	3600°±10°
	Rotational torque	2~10mN.m
	Stopper torque	≥300mN.m
