3590 Potentiometer WXD 3540 Knob
US$ 0.01 - 1.26
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
3540
Payment & Shipping
Payment Methods:
Port of Shipment:
guangdong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Wire-wound Potentiometers 3590 KnobsNegotiableMOQ: 100 Pieces -
WXD3590 Wirewound Potentiometer DialUS$ 6 - 6.5MOQ: 50 Sets
-
3362P-1-102 100 Ohm, 500 Ohm, 10K(103), 100K(104), Trimmer PotentiometersUS$ 0.07 - 0.1MOQ: 1 Piece
-
2W Precision Wirewound Potentiometers WXD 3540US$ 1 - 1.5MOQ: 50 Pieces
-
3006p Cermet Trimmer Potentiometer A10k PotentiometerUS$ 0.074 - 0.8MOQ: 1 Piece
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
3540
Specifications
1.payment:L/C,D/A,D/P,T/T,Western Union etc.2.TUV onsite audited manufacturer
3.Supply capacity:500K/month
4. Free sample

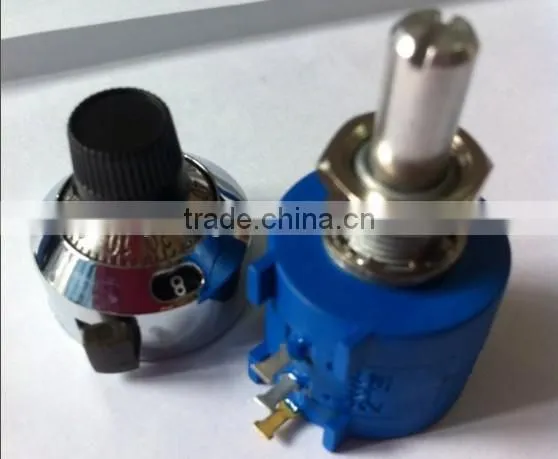

WXD 3540 precision wirewound Trimmer Potentiometers knob
| WXD3540 | ||||||
| Electrical Characteristics |
Range of nominal resistance | 100~100KΩ | ||||
| Resistance tolerance |
±2%, ±5% |
|||||
| Terminal resistance |
≤2%R or 5Ω |
|||||
| Linear accuracy |
±1%, ±0.5% |
|||||
| Electrical angle |
3600°±10° |
|||||
| Insulation resistance |
≥ 200MΩ |
|||||
| Withstand voltage |
500V (DC or AC peak value) |
|||||
| Environment Characteristics |
Rated power |
2W (70°C) |
||||
| Temperature range |
-55°C~+125°C |
|||||
| TCR |
±100×10-6/°C |
|||||
| Temperature shock |
ΔR≤±3%R |
|||||
| Collision (390m/S2, 4000 times) |
ΔR≤±1%R |
|||||
| Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability) |
ΔR≤±3%R, Insulation Resistance≥100MΩ |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, Electrical break≤100μS |
|||||
| Rotational life(10000cscles) | ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m | |||||
| Electrical endurance (70°C, 2W, 1000h) |
ΔR≤±3%R |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m |
|||||
| Physical Characteristics |
Total mechanical travel |
3600°±10° |
||||
| Rotational torque |
2~10mN.m |
|||||
| Stopper torque |
≥300mN.m |
|||||
