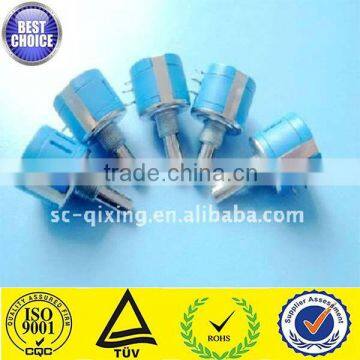

Help CenterPrecision Multi-turns 10k Wirewound Potentiometer
Related Products
-
Potentiometer DialUS$ 2 - 2.6MOQ: 100 Pieces -
WXD3540 Precision Wire-wound Potentiometer 10k OhmUS$ 1 - 1.8MOQ: 1 Piece
-
WXD3590 b 500k Rotary PotentiometerUS$ 1 - 1.5MOQ: 100 Pieces
-
WXD3590 Precision Wirewound Potentiometer KnobUS$ 1 - 1.5MOQ: 100 Pieces
-
WXD3540 Precision Wirewound PotentiometerUS$ 1 - 1.5MOQ: 100 Pieces
Specifications
1.Copper Shaft,aluminium Bush2.100 ohm~100K3.Wire-wound,10 turns
4.RoHS ISO compliant,Good quanlity
5.free sample
Some parts of our certificates
Advantage of choosing our company and products:
1.Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
2.The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
3.Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
4.Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .

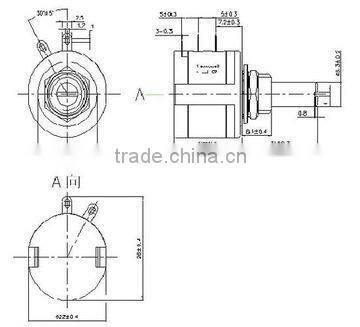

WXD3540 | ||||||
| Electrical Characteristics |
Range of nominal resistance | 100~100KΩ | ||||
| Resistance tolerance |
±2%, ±5% |
|||||
| Terminal resistance |
≤2%R or 5Ω |
|||||
| Linear accuracy |
±1%, ±0.5% |
|||||
| Electrical angle |
3600°±10° |
|||||
| Insulation resistance |
≥ 200MΩ |
|||||
| Withstand voltage |
500V (DC or AC peak value) |
|||||
|
| ||||||
| Environment Characteristics |
Rated power |
2W (70°C) |
||||
| Temperature range |
-55°C~+125°C |
|||||
| TCR |
±100×10-6/°C |
|||||
| Temperature shock |
ΔR≤±3%R |
|||||
| Collision (390m/S2, 4000 times) |
ΔR≤±1%R |
|||||
| Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability) |
ΔR≤±3%R, Insulation Resistance≥100MΩ |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, Electrical break≤100μS |
|||||
| Rotational life(10000cscles) | ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m | |||||
| Electrical endurance (70°C, 2W, 1000h) |
ΔR≤±3%R |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m |
|||||
| Physical Characteristics |
Total mechanical travel |
3600°±10° |
||||
| Rotational torque |
2~10mN.m |
|||||
| Stopper torque |
≥300mN.m |
|||||
Website: http://sc-qixing.en.china.cn/
Tel. : 028-83588920/83588907
Fax :028-83588910
Function of potentiometer:
A potentiometer is a manually adjustable electrical resistor that uses three terminals. It is a simple electro-mechanical transducer. It converts rotary or linear motion from the operator into a change of resistance, and this change is used to control the levels of output. It is sometimes known as POTS.Potentiometer is an adjustable electronic components,which plays main roles in the circuit on the following several aspects
1.As a voltage divider:Potentiometer is a continuously adjustable resistor. When potetiometer’s stem or sliding handle move on the resistor body, the output of the potentiometer can be obtained output of voltage with certain related to the potentiometer applied voltage and movable arm or travel .
2.As a variable resistor :When potentiometer is used as a rheostat, it should be taken into two end devices.Thus within the limited travel range of potentiometer,which can be gotten smooth, continuously changable resistance value.
3.As the current controller :Potentiometer is used as the current controller, one of the designate current output must be sliding contact terminal.
4.Application of potentiometers
•Linear displacement measurement
•Rotary displacement measurement
•Volume control
•Brightness control
•Liquid level measurements using floats
