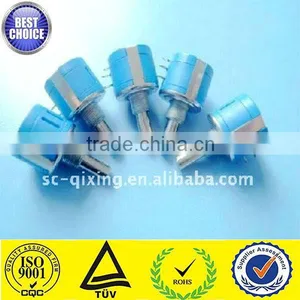

Help CenterWXD3540 Precision Wirewound Potentiometer
Related Products
-
WXD3590S Trimming Precision Multi-turn PotentiometerUS$ 1 - 1.8MOQ: 100 Pieces -
Main Products 3590 Wirewound 20k Potentiometer RotaryUS$ 0.9 - 1.5MOQ: 100 Pieces
-
WXD3540 Precision Wire-wound 50k Rotary PotentiometerUS$ 1 - 1.8MOQ: 100 Pieces
-
WXD3590S Potentiometer JoystickUS$ 1 - 1.5MOQ: 100 Pieces
-
WXD3540 Wire-wound Precision Multi-turn PotentiometerUS$ 1 - 1.8MOQ: 100 Pieces
Specifications
1.8 years producing experience2.ISO9001,TUV,ROHScertificate
3.precision wirewound potentiometer
4.OEM service
5.free sample
Some parts of our certificates
Advantage of choosing our company and products:
1.Sichuan qixing electronic co. ltd. is a technical factory of mainly manufacturing and develop high power resistor,wire-wound potentiometer,metal glass glaze potentiometer,carbon film potentiometer,precision parts and AC power noise filter.
2.The established maxim of our company is technical innovation, keeping improvement and meet customer demands.
3.Rich and varied goods is your selection guide. High quality is absolutely the credibility of the guarantee. Reasonable price is your final choice.
4.Our products is also used in the field of the military industry .Our factory are continuing to offer a great deal of qualified goods in the field of the military industry .
WXD3540 | ||||||
| Electrical Characteristics |
Range of nominal resistance | 100~100KΩ | ||||
| Resistance tolerance |
±2%, ±5% |
|||||
| Terminal resistance |
≤2%R or 5Ω |
|||||
| Linear accuracy |
±1%, ±0.5% |
|||||
| Electrical angle |
3600°±10° |
|||||
| Insulation resistance |
≥ 200MΩ |
|||||
| Withstand voltage |
500V (DC or AC peak value) |
|||||
|
| ||||||
| Environment Characteristics |
Rated power |
2W (70°C) |
||||
| Temperature range |
-55°C~+125°C |
|||||
| TCR |
±100×10-6/°C |
|||||
| Temperature shock |
ΔR≤±3%R |
|||||
| Collision (390m/S2, 4000 times) |
ΔR≤±1%R |
|||||
| Moisture proof (GJB306A- 96-Method106, not for 7a, 7b inapplicability) |
ΔR≤±3%R, Insulation Resistance≥100MΩ |
|||||
| Vibration (10-500HZ, 0.75mm, 6h) |
ΔR≤±1%R, Electrical break≤100μS |
|||||
| Rotational life(10000cscles) | ΔR≤±3%R,peak noise≤500Ω,Starting Torque≤20mN.m | |||||
| Electrical endurance (70°C, 2W, 1000h) |
ΔR≤±3%R |
|||||
| Steady damp heat (IEC68-2-3, Ca, 96h) |
ΔR≤±3%R, Insulation Resistance≥100MΩ, Starting Torque ≤20mN.m |
|||||
| Physical Characteristics |
Total mechanical travel |
3600°±10° |
||||
| Rotational torque |
2~10mN.m |
|||||
| Stopper torque |
≥300mN.m |
|||||
