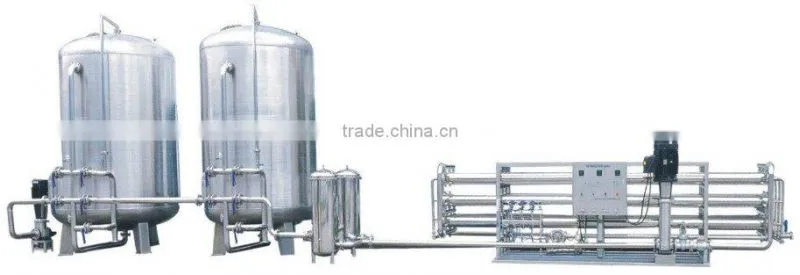

50000liter per Hour One-stage RO Water Treatment Machine

Name: 50000liter per Hour One-stage RO Water Treatment Machine
Brand: Kinglife
SKU: 101901587
Availability: InStock

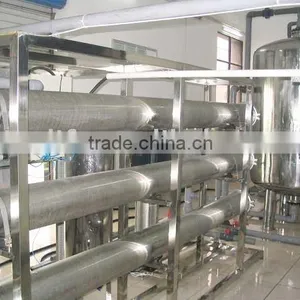

50000liter per Hour One-stage RO Water Treatment Machine thumbnail-1

50000liter per Hour One-stage RO Water Treatment Machine photo-1

US$ 128,000 - 143,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Kinglife

Model Number:

RO-1000i(50000L/H)

Contact Supplier Request Quote Chat Now

Shenzhen Kinglife Environmental Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Kinglife

Model Number RO-1000i(50000L/H)

Specifications

High flux RO water treatment machine
ODM service available
Durable stainless steel structure
Automatic PLC control

Features:

1. Automatic backwash and manual backwash

2. Automatic switch on when low water level, and switch off when high water level

3. Water shortage protection for multi-stage pump

4. Protection when no voltage, under-voltage, over-current, short circuit and creepage

5. Full stainless steel structure, durable and easy to clean.

6. Integrating water flow indicator, TDS indicator, pressure indicator, control panel

7. China Top Brand or world famous brand electrical, switch and valve systems

8. Built-in soft-start system to avoid damage to the expensive membrane when starting

9. Built-in RO membrane chemical washing device

10. PLC with colorful touch-screen control available

Specification:

Parameters
Product	One-stage Reverse Osmosis(RO) water treatment machine
Model	RO-1000i(50ton/hr)
Pure Water Production Capacity	50,000L(litre) per hour(25°C)
Input water quality	conductiveness≤400μs/cm(SDI≤5, 2≤PH≥11, NTU≤1)
Minimum flux requirement for raw water(to reach the max output)	62,500L/H
Systematic Salt Rejection Rate	≥98%
Recovery Rate(pure water : inlet water)	65~80%
Recommended Working Temp.	5~35°C
Input Power(standard)	AC380V / 50Hz / 45.0KW
*Pre-treatment*
Multi-media Filter(Flux: 67~81M³/H)	Φ2300×4500mm(t=5.0mm) SUS304 stainless tank with 9200KG quartz sand Or optional fiber glass tank
Carbon Filter(Flux: 67~81M³/H)	Φ2300×4500mm(t=5.0mm) SUS304 stainless tank with 2900KG activated carbon Or optional fiber glass tank
Micron (PP Sediment) Filter	Φ500×1000mm SUS304 stainless steel tank× 20PCS with 5μm×1000mm micron filter cartridge × 20PCS
Booster Pump	Denmark GRUNDFOS CR64-2-1 stainless steel pump×1PC / 11.0KW Optional China Nanfang pump
Multi-stage Pump	Denmark GRUNDFOS CR64-8-1 pump×1PC / 11.0KW Or optional China Nanfang pump
*Reverse Osmosis System*
Membrane	DOW FILMTEC BLACKISH series BW30-400 membrane×54PCS or U.S. HYDRANAUTIC ultra-low pressure ESPA-8040 membrane
Membrane Housing / vessel	SUS304 stainless steel 80240 vessel × 9PCS
*Accessories*
Piping	SUS stainless steel
Structure	Full SUS304 stainless steel
Electrical Parts	China Tengen Or optional SIEMENS / MISTSUBISHI / ABB
Others	Flow metre, TDS metre, pressure gauge, electromagnetic valve, electronic butterfly valve, etc.
*OPTIONAL*
Chemical dosing System for PH adjustment, anti-scaling, etc.	U.S. Pulsafeeder Xo60 Automatic Dosing valve with 50L tank
UV sterilizer	IP67 waterproof grade UV-40W UV sterilizing(up to 5000hour lamp lifespan) Or U.S. Hanovia lamp(up to 9000hours lamp lifespan)
Ozone sterilizer	SOZ-YB-10G ozone generating and mixing machine with oil free air compressor and 10gram ozone output directly from air
Built-in chemical membrane washing device for RO system	For regular membrane cleanning so as to renew and improve the membrane performance
Water softener	Φ530×1500mm fiber glass tank with 200L food-grade resin and 180 automatic control valve(Total hardness≤300PPM)
Touch-screen PLC control panel	Japan Panasonic or Korea LG PLC with colorful touch-screen operation

Remarks

Please also kindly undertand that every water treatment equipment, no matter ultrafiltration or reverse osmosis, is a ODM project as different water is of different quality. Therefore, we would require for a raw water analysis / test report for inquiries of water treatment system for any inquiry.

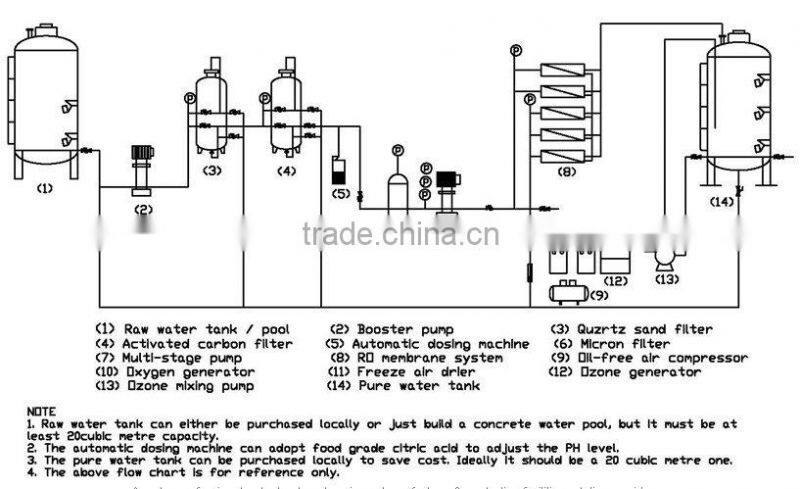

Illustration:

(including 5μm×1000mm micron filter cartridge × 20PCS)
