Specifications

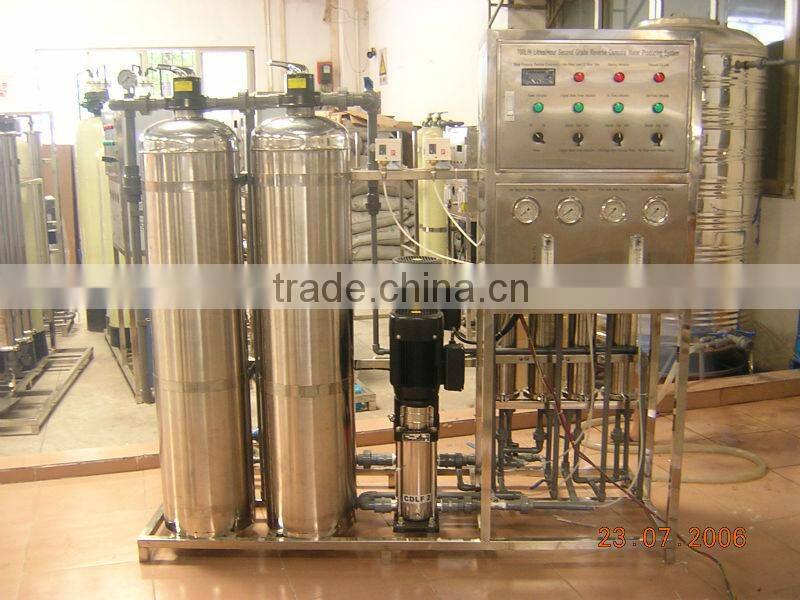

RO pure water filter machine1.little space, easy operation
2.stainless steel frame,firm,durable,etc
3.Protective
1. Silica sand filter
2. Active carbon filte
3. Water softer(optional)
4. PP sediment micron filter
5. Reverse Osmosis membrane filteration
The first 4 parts we call it pre-treatment, and the pre-treatment part will be designed compatiable with the RO part according to specific water condition from the buyer, the following devices can be an optional choices to be added into the pre-treatment part for optional choice for customized water treatment purpose:
1. Resin water softener with automatic backwash control
2. Pulsafeeder brand PAC chemical dosing machine for anti-scalant chemical dosing, for Chloride removal, for PH ratio adjustment
3. PLC control system
Our water treatment system has single pass type and two grade type with "HYDRANAUTICS" brand RO membrane in basic, "FILMTEC" desalination RO membrane for optional choice according to customer's water condition, pure water output capacity we have machines ranging from 300L/H to 20,000L/H in basic, larger system will be upon customer request.
Model No: |

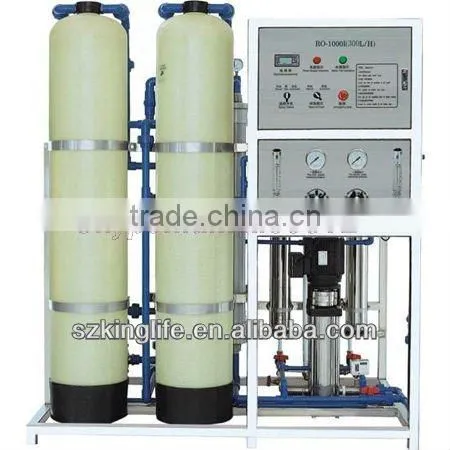

RO-100I(300L-H) RO pure water filter machine |
Capacity of pure water: |
300 L/H 25°C |
General power: |
2.75 KW |
Electrical power: |
AC 220V 18A/ 380V 9A 50Hz |
RO membranes: |
ESPA4040 2 items(2 grades) |
Multi-phases pump: |
CDL2-180/2.2 KW 1 item |
Beforehand filter: |
300x1650 2 items |
PP sediment membranes filter |
90x1000 3 items |
Booster pump: |
BLC70/0.55 KW 1 item |
Active carbon filter: |
50kg |
Quartz sand filter: |
150kg |
Functions: |
RO membrane auto wash and manual wash RO membrane wash use medicament in machine Pure water height water level auto stop, low water lever auto run Multi-levels pump no water protect All kinds of protect: no power, poor power, short circuit, larger electric current, creepage protect and so on. |
Size (mm): |
1550 x 900 x 1820 |
all parts will be packed in export wooden case.
We provide cup mould design and (covering)PE film design ,we can arrange engineer of oversea machine installation,
After sales Service Terms: we provide one year limited warranty*1 and life long support service for all of our products.
During the warranty period, if any product purchased from our company malfunctions, we will provide necessary technical support, or even send engineers to solve the problem with the buyer providing proper accommodation, all the fees for transportation(the air tickets to you for economy class), insurance and medicines, and salary for our engineers*2 and 1 translater,the sallary based on USD60 per day.
