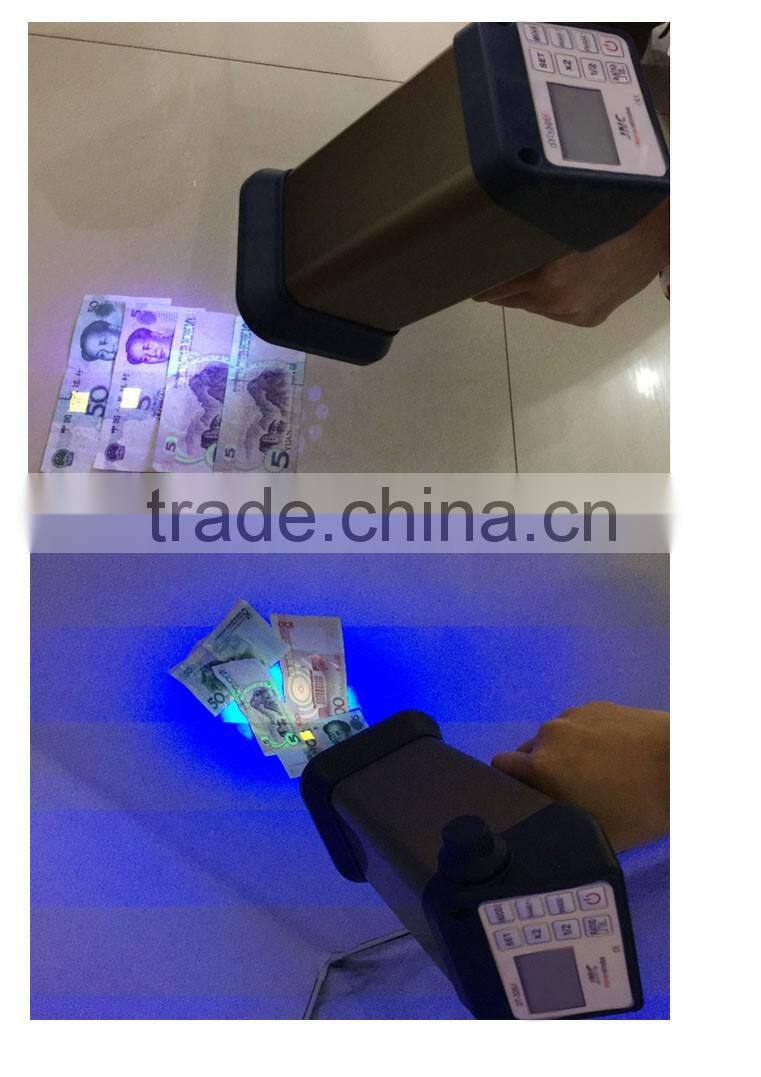

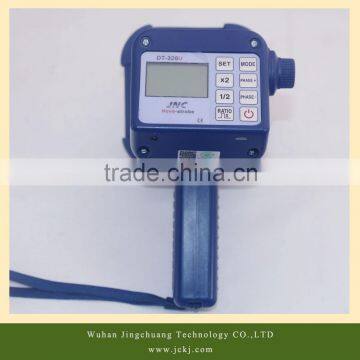

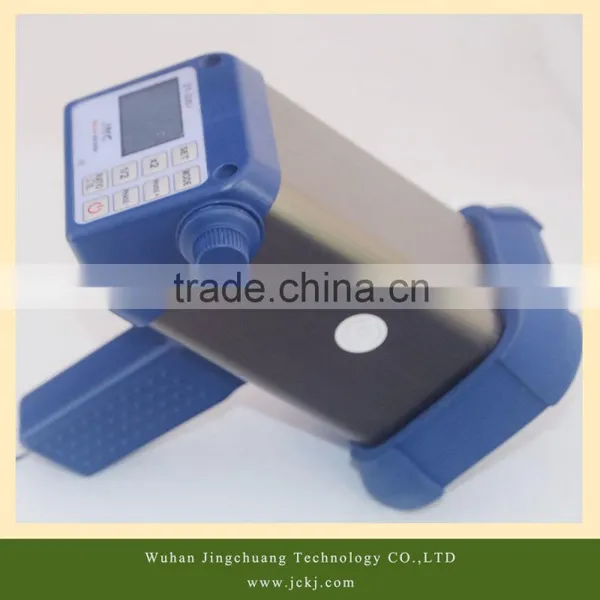

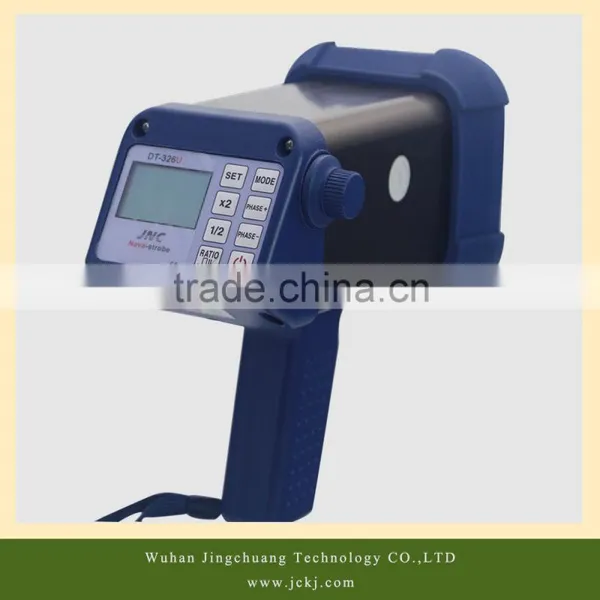

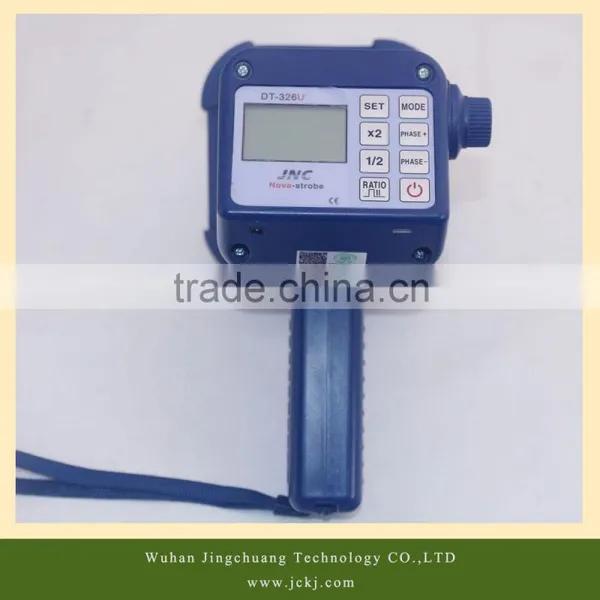

Help CenterBattery Powered Digital Stroboscope With UV LED
Related Products
-
Long Life Doctor Blade MDCUS$ 200 - 800MOQ: 1 Set -
TAIWAN Photoelectricity Optic Eye SensorUS$ 80 - 130MOQ: 10 Pieces
-
Taiwan Kontec KS-C2G SensorUS$ 80 - 130MOQ: 10 Pieces
-
AC Powered Digital Xenon StroboscopeUS$ 275 - 500MOQ: 1 Set
-
Multifunctional Handheld StroboscopeUS$ 200 - 500MOQ: 1 Set
A stroboscope, also known as a strobe, stroboscopic lght, strobe light, tachometer is an instrument used to
make a cyclically moving object appear to be slow-moving, or stationary so that the objects can be visible,
otherwise, it can not be observed by naked eyes.
The principle is by synchronizing the flash frequency to the movement of the observed object and emitting
intensive light pulse of short duration, the object is always illuminated at the same point of its movement,
so that it appears to the eye as if it were motionless. It is suitable for non-contact RPM measurement,
inspection and observation of moving parts.
For example: a motor speed and movement frequency (printed bags), can also take advantage of the frequency
scintillation analysis of object vibration, the action of high-speed moving objects, as well as high-speed photography.
1) LCD digital display, easy to read

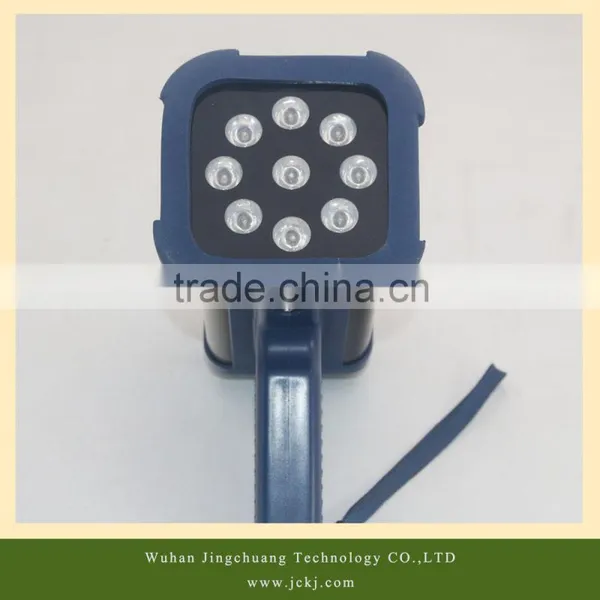

2). Adopts 9 pices America CREE LED lamps with long lifetime
3). wide trigger frequency range, 60fpm/min-120,000 fpm/min.. Frequency of each unit can be easily adjusted
4) good light brightness, with illunimation about 10,000 Lux.
5). portable, rechargeable, easy to operate and adjust
6). accurate and simple yet highly stable, repeatable flash rate setting.
7). internal components are independent, thus easy to disassemabled for problem solving
8). accredited with ISO, CE certification and pass EMC test.
9). competitive price with high quality
10). fast delivery, environmental friendly paper packaging.
11). after sale service guaranteed
Type |
Portable and Rechargeable |
Power Type |
Powered by Rechargeable Battery |
Battery Type |
Lithium rechargeable Battery |
Battery Spec. |
DC16V, 3000MA |
Battery Recharging Time |
About 5 hours (have indicating light) |
Working Time |
14 hours after each charging |
Total Power |
About 90W |
Environment Illumination |
Less than 10,000 Lux |
LED Lamp Spec. |
America CREE 10W LED Lamp (9 lamps) |
LED Lamp Lifetime |
3-5 years |
Trigger Mode |
Internal and External |
Setting Accuracy ( Vibration) |
0.01%±1 digit (25℃) |
Resolution Setting (Vibration) |
60.0-12000FPM 0.1FPM |
12000.1-120,000FPM 1 FPM | |
1-200HZ 0.01HZ | |
200.1-2000HZ 0.012HZ | |
Flash Frequency Range |
60-120,000 FPM/min. |
Product Size |
203mm*110mm*192mm |
Net Weight |
900g |
Packaging Size |
265mm*265mm*145mm |
Gross Weight |
2.8KG |
We offer 1 year warranty for our digital stroboscope lamp and 2-years warranty for LED stroboscope.
If the strobe light is out of working order under proper usage per instructions manual within the warranty period,
please contact us to obtain a merchandise return code and shipping instruction. Then, send it back at your
shipping costs. After receiving your return item, it will take 7 days for evaluation and investigation. A brand new
replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.
Product Use
Exhibition
Why choose us
*We have more than 10 years of stroboscope manufacture expeirence!
*We own research and development team, we can offer you the best and the newest products in time.
*We own after-service team, we can help you to solve any problem in time.
*All our stage series lights have one year wanrranty and CE&RoHS certification
Welcome to place the trial order,please feel free to contact Cherry as following:
Website:
Whatsapp:0086-18271937408
We reply your inquiry within 6 hours, 100% satisfied your service;
We accept OEM/ODM, 100% we are your loyal and proper factory
If you want to know more informations, pls contact us asap.
Wuhan(China) Jingchuang Tech.Co.Ltd
Breanna zheng
Skype: breannazhenglu
