Specifications
Long life Doctor Blade MDC1. long life
2. good quality
3. wide application
Origin: Switzerland
Specification:
Width of Blade body: 1- 6cm
Thickness of Blade body : 0.15mm, 0.20mm
Heigh of cutting edge: 1.3cm
Thickness of cutting edge: 0.065mm, 0.075mm, 0.10mm
Hardness: 580HV
Material: Carbon steel blade, stainless blade, plastic blade, coating blade
How to choose the cutting edge thickness:
50um: mainly used for gravure printing of soft aluminum foils
75um: mainly used for general packaging printing, such as paper board and decoration printing
100um: mainly used for flexo printing, coating. rubber roll.
125um: mainly used for flexo printing, such as Ceramic Anilox Roll.
Laser mark on the blade is MDC quality consent. Constant contact areas ensure consistent uniformity of color printing, keeping printing quality consistently.
Features:
Smooth Blade, good flexibility, good scratching effect, durable, reducing downtime, excellent mechanical properties. No grinding during using can ensure a good surface contact of ink to achieve the best effect.

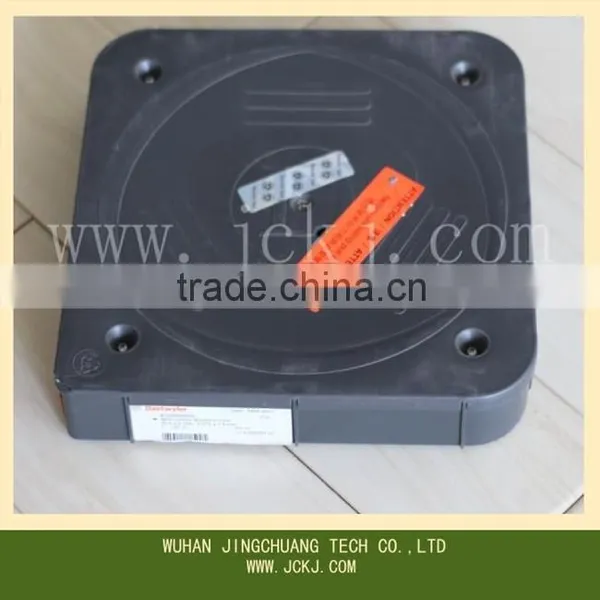

100m/Box, anti-corrosion plastic security packaging, quality is more stable and durable. It’s suitable for the speed of more than 180m high-speed machine. No need to open boxes to pull out to use.
Common Width: 8 ~ 80mm
Common thickness: 0.15/0.2mm
Linear: Each 3000cm long, the linearity tolerance is less than 0.6mm
MDC doctor blade is widely used in gravure packing printing, publication gravure printing, flexography,flexible UV printing, coating printing, offset coating, pressure-sensitive printing, screen printing and decorative materials printing.
Super-hard coating on the blade greatly extends the blade life. Long-life doctor blade can reduce printing problems, to provide a clear scraping result with corrosion resistance, reducing the drawing line, thereby significantly reducing waste. The reduction in the number of blade replacement means reduced downtime, printing rollers re-plated and sculpture of the situation is reduced. This doctor blade is also suitable for UV ink.
For more information, welcome to contact me.
