Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > 800-1500pcs/hour Plastic Moulding Machine Price

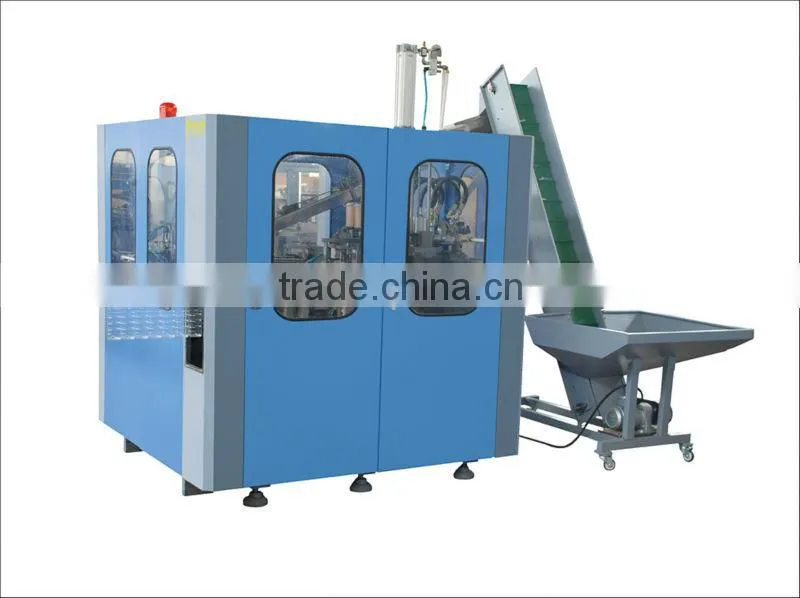

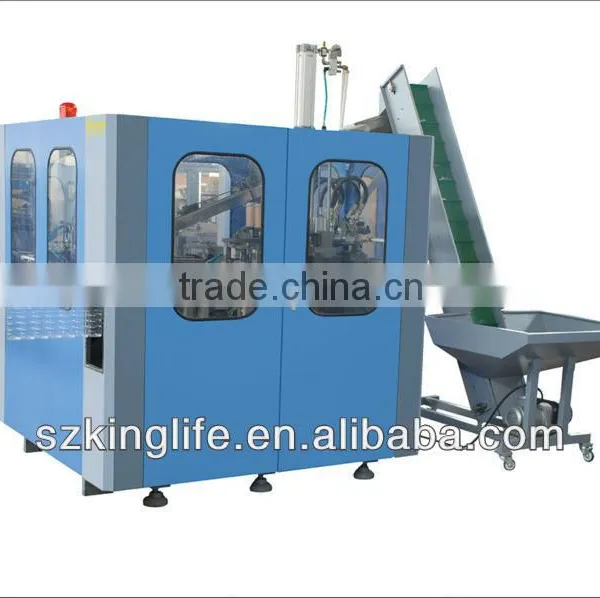

800-1500pcs/hour Plastic Moulding Machine Price

Name: 800-1500pcs/hour Plastic Moulding Machine Price
Brand: KINGLIFE
SKU: 101895555
Availability: InStock

800-1500pcs/hour Plastic Moulding Machine Price thumbnail-1

800-1500pcs/hour Plastic Moulding Machine Price photo-1

US$ 30,000 - 44,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Bottle

Plastic Processed:

PET

Contact Supplier Request Quote Chat Now

Shenzhen Kinglife Environmental Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Bottle

Plastic Processed PET

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Guangdong, China

Brand Name KINGLIFE

Model Number CM-B2(5L)

Voltage 380v

Power(W) 45kw

Dimension(L*W*H) 2000*950*2480mm

Weight 3.8T

Certification CE ISO, CE, UL, ISO9001

Warranty 2 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

CM-B2 plastic moulding machine are suitable for producing PET plastic containers and bottles in all shapes. They are widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Technique Parameter of plastic moulding machine price :

Main part:
Pneumatic part	Valve	SMC/CKD
	Cylinder
Electric part	PLC	LG
	Operating system	LG
	Relay	OMRON
Note	All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.

Model	ITEM	CM-B2
Productivity	Depend on bottle design	800-1000PCS800-1000PCS/H
Product type	Volume	5L
	Body diameter	≤175mm
	Height	≤330mm
	Neck diameter	40mm-45mm
Mould	Cavity	2
	Mold thickness	260mm
	Mold Size	480260360mm
Main machine power	Electrical source power	380V/220V 50/60HZ 3Phase
	Rated Power	33kw
	Really use power	13kw
Air system	HP air compressor	2.0m³/min 3.0Mpa
	LP air compressor	1.3m³/min 1.0MPa
	Air Tank	0.6m³ 3.0MPa
	Air dryer	2.0m3/min 3.0MPa
Cooling water	Water Chiller	3HP
Machine	Size(LWH)	250015001800mm
Machine	Weight	1500kg
Preform unscrambler	Size(LWH)	20009502480mm
Preform unscrambler	Weight	250kg

Our Services

All spare parts of CM series automatic blow moulding machines are treated by high and new technologies, precise machining and careful assembly to attain technical requirements of all aspects. Moving parts are connected with boundary lubricating bearings and straight guide rails( guiding blocks are made in Japan). Japanese made bumper is adopted for preventing mechanical bumping, which ensures low mechanical noise, low failure rate and long service life. Moreover, unique design of air blowing mechanism ensures very high output rate of finished products.CM series automatic blow moulding machines are widely applied in blowing hollow plastic containers of various dimensions. They are characterized by stable quality of products, reasonable design of structure of machines, small size, low energy consumption, easy operation and convenient maintenance.

The operation of CM series machines are computer controlled, which ensures accurate and reliable operation. Individualized operations and operation monitoring of the machine are realized by human-machine interface.

FAQ

1. can this machine blow 500ml PET bottle ?

Answer: Yes ,this machien can blow bottle volume 0.1-20L bottle ,but the blowing speed will be too slow for small bottle , this CM-9B designed to blow 5-10 L bottle , if you get blow small bottle you may get money lost on the electricity ,

2. is there complete machine include bottle mould and air compresor ?

Answer: Yes ,what we are provide is the complete system , not like other factory ,they may provide you main machine and you will need speed a lot to find the suitable air compresor and chiller...ect..

3.can we get extra bottle mould ?

Answer: Yes , we cam help you finish the mould design ,and the extra mould should be payed .

4.What is the language of the PLC and touch button ?

Answer: No metter where are you from , we can translate the PLC ,Touch Screen/button in your language ,make sure ytou will have a easy operation .

5.can you help us with the shipment of this machine ?

Answer: Yes , with honour ,we have our special shipment company which already cooperate more than 10 years , please contact John for the freight , we will give you the best price we can .
