Home > Manufacturing & Processing Machinery > Plastic Machinery > Blow Molding Machine > Automatic Plastic Preform Heating&moulding Machine

Automatic Plastic Preform Heating&moulding Machine

Name: Automatic Plastic Preform Heating&moulding Machine
Brand: Kinglife
SKU: 101894755

Automatic Plastic Preform Heating&moulding Machine thumbnail-1

Automatic Plastic Preform Heating&moulding Machine photo-1

US$ 12,350 - 12,400 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Bottle, plastic bottle

Plastic Processed:

Other, PET, PET

Contact Supplier Request Quote Chat Now

Shenzhen Kinglife Environmental Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Bottle, plastic bottle

Plastic Processed Other, PET, PET

Blow Moulding Type Stretch Blow Moulding

Automatic Yes

Place of Origin Guangdong, China

Brand Name Kinglife

Model Number CM-9B

Voltage 380

Power(W) 17.5kw

Dimension(L*W*H) 1870*630*1450mm

Weight 1150kg

Certification CE CCC

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

automatic bottle blowing machine prices bottle blow machine bottle blow molding machine bottle blow moulding machine

Features:

CM-9B Semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 5L to 10L. It is widely used to produce the carbonated bottle, mineral water bottle, pesticide bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
*Adopting double crank to adjust mould, heavy locking mould, stable and fast.
*Adopting infrared oven to heat the preform, the preform rotated and heated equally.
*The air system has been divided into two parts: pneumatic action part and bottle blowing part to meet the different requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
*The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
*The machine can be operated in the step-by-step mode and the semi-auto mode.
*The machine is small with low investment, easy and safe to operate by one person.

Main Parameter:

Model	ITEM		CM-9B
Container	Product material	/	PET
	Volume	L	5-10
	Theoretical output	pcs/h	250-400
	Preform length	mm	≤390
	Preform inner diameter	mm	φ15-200
Mould	Max.mould plate Diameter(L*W)	mm	470*500
	Max.mould thickness	mm	370

	Mould opening stroke	mm	350
Machine size and Weight	Main machine (LWH)	cm	19307201830
	Main machine weight	kg	800
	Heater (L* W*H)	cm	18706801450
	Heater weight	kg	250
	Power	kw	17.5

To get detail technology datas ,please chat with John Yi --the sale engineer,

FAQ

1. can this machine blow 500ml PET bottle ?

Answer: Yes ,this machien can blow bottle volume 0.1-20L bottle ,but the blowing speed will be too slow for small bottle , this CM-9B designed to blow 5-10 L bottle , if you get blow small bottle you may get money lost on the electricity ,

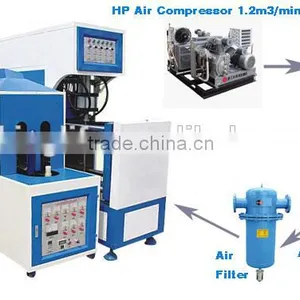

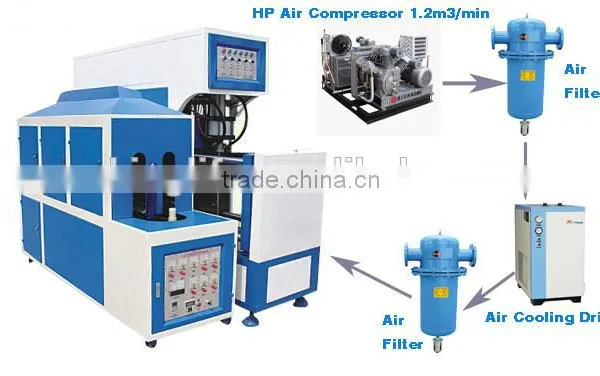

2. is there complete machine include bottle mould and air compresor ?

Answer: Yes ,what we are provide is the complete system , not like other factory ,they may provide you main machine and you will need speed a lot to find the suitable air compresor and chiller...ect..

3.can we get extra bottle mould ?

Answer: Yes , we cam help you finish the mould design ,and the extra mould should be payed .

4.What is the language of the PLC and touch button ?

Answer: No metter where are you from , we can translate the PLC ,Touch Screen/button in your language ,make sure ytou will have a easy operation .

5.can you help us with the shipment of this machine ?

Answer: Yes , with honour ,we have our special shipment company which already cooperate more than 10 years , please contact John for the freight , we will give you the best price we can .
