Features:

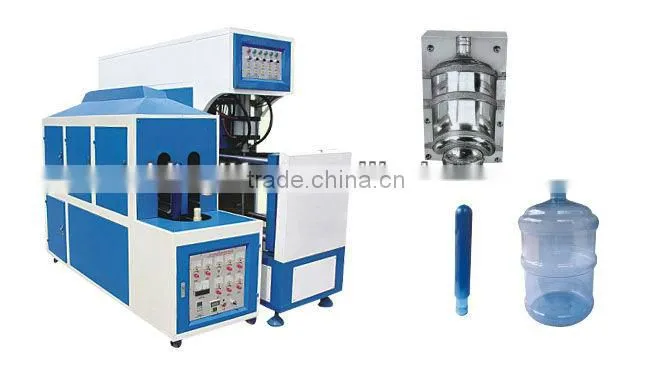

CM-12 Semi-automatic injection molding machine is especially used to produce from 3 gallon to 5 gallon bottles and is widely used to produce any shapes of plastic bottles from PET with neck diameter from 15mm to 200mm.
*Perfect function with economic investment.
*Small size and compact construction with no space wasted.
*Easy to operate and maintain, operated by one person.
*Saving power and uneasy to worn out.
*Adopting new double crank four bars to lock mould, the cross fixed.Providing high pressure blowing system.
*We can provide preforms and various bottle&cap molds from 3 gallon to 5 gallon bottles to meet customer’s requirements.
| Model | ITEM | CM-12 | |
| Container | Product material | / | PET |
| Volume | L | 10-25(3-5gallon) | |
| Theoretical output | pcs/h | 90-180 | |
| Preform length | mm | ≤500 | |
| Preform inner diameter | mm | φ15-200 | |
| Mould | Max.mould plate Diameter(L*W) | mm | 420*500 |
| Max.mould thickness | mm | 400 | |
| Mould opening stroke | mm | 380 | |
| Machine size and Weight | Main machine (L*W*H) | cm | 2180*770*1960 |
| Main machine weight | kg | 1000 | |
| Heater (L* W*H) | cm | 2370*680*1650 | |
| Heater weight | kg | 318 | |
| Power | kw | 40 |
To get detail technology datas ,please chat with John Yi --the sale engineer,
this blowing moulding machine spare parts will be packed in export wooden case.
plastic bottle blow molding machine/system/plant
1.After sales Service Terms: we provide one year limited warranty*1 and life long support service for all of our products.
During the warranty period, if any product purchased from our company malfunctions, we will provide necessary technical support, or even send engineers to solve the problem with the buyer providing proper accommodation, all the fees for transportation(the air tickets to Bangladesh for economy class), insurance and medicines, and salary for our engineers*2 and 1 translater,the sallary based on USD60 per day.
6. We offer reverse osmosis system design, running consultance, and guidelines for special chemicals and membrane washing solution for our customers.
2. We offer a 1 to 2 week(s) domestic free training after the clients purchase our products. If the buyers needs our engineers assisting in building the factories, testing the equipments, or trainning their staff abroad, all the fees are to be responsible by the buyers. Please contact our sales engineer for details.
3. All the equipments or machines are highly accurate and must be safely grounded. We are not liable if the equipments or machines break down because of no grounding or bad grounding.
4. Sleeve labels or PE films are highly sensitive to heat. Although we have adopt heat insulated material to pack them, please do not expose them directly to sunshine.
