Digital Pressure Switch

FOB Price

US$ 80 - 140 / Piece

1 Piece(Min. Order)

Port XI'AN
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China		Brand Name	HT
Model Number	BPZK03

Product Description

Specifications

Wide range, Full stainless steel.

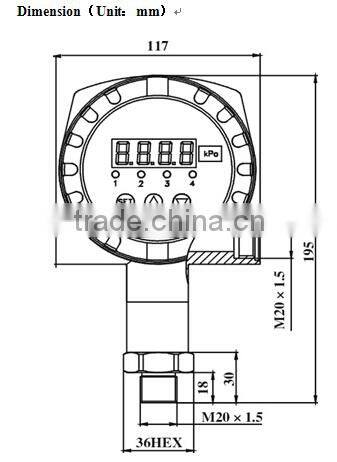

117mm profile. High light LED display.
Can provide Max. 4 way contact point

Description

BPZK03 digital pressure controller combine pressure measuring, display, control & transmit together, with RS485 communication interface. It can utilize RS485 bus to achieve network, digital signal transmitting and long-distance parameter setting & calibration. It can set the zero output ,span output, ,pressure of contact point and control pressure with key at scene.

Feature

Wide range, Full stainless steel.

Various pressure point.

117mm profile.

High light LED display.

Marking: ExiaIICT6.

Two supply power mode 24VDC or 220VAC,with RS485 communication interface.

Can provide Max. 4 way relay control contact point.

value of contact point and status of contact point can be set freely

Application

Compatible with 316LSS,noncorrosive liquids.

Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control

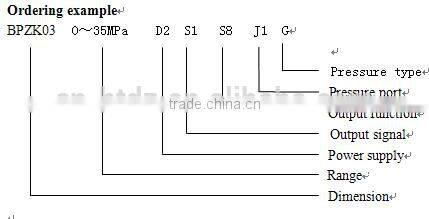

Ordering information

BPK-ZK	Intelligent pressure controller
BPZK	Code		Dimension
	01	100 profile, Stainless steel body				2001		Din connector
	02	150 profile cast Aluminium housing				2002		Direct outlet 1.5 meter
	03	117 profile explosion-proof housing
	04	Aviation connector
		Range		-0.1. . .0~0.01...100MPa
		(0-X) KPa or MPa		X: actual range
				Code	Power supply
				D1	24VDC
				D2	220VAC
					Code	Output signal
					S1	4~20mADC
					S2	1~5VDC
					S3	0~5VDC
					S4	0~10mADC
					Code	Output function
					S5	One-way relay
					S6	Two-way relay
					S7	Three-way relay
					S8	Four-way relay
					S9	Four-way relay RS485 interface
					S10	One-way relay switching value output
					S11	Two-way electron switch value
						Code	Pressure port
						J1	M20×1.5 Male
						J2	G1/2 Male
						J3	G1/4 Male
						J4	others
							Code		Pressure type
							G		Gauge pressure
							A		Absolute pressure
							S		Sealed gauge
