Help CenterLow Cost Constant Voltage Pressure Sensor
Related Products
Specifications
Mesurement Range:0~350KPa~60MpaIsolated pressure sensor
Constant voltage supply
Full 316L stainless steel
Description

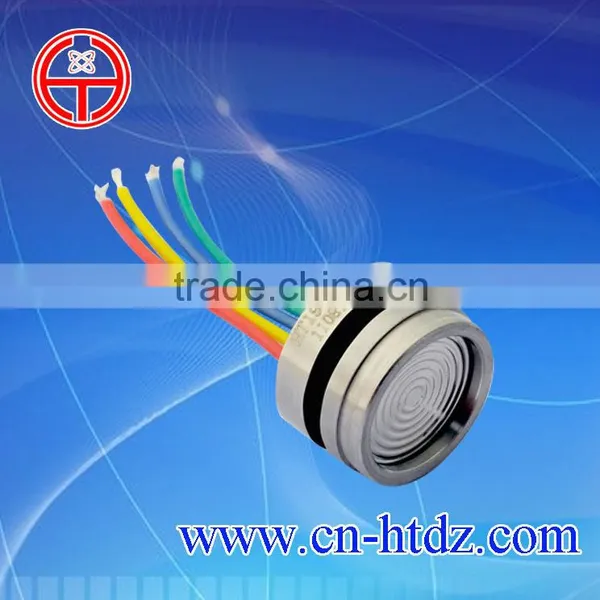

HT19V isolated pressure sensor,utilizes the piezoresistance effect of diffused silicon to fulfill measuring &controlling pressure of liquids and gases with high accuracy and good stability.
Feature
Wide pressure range

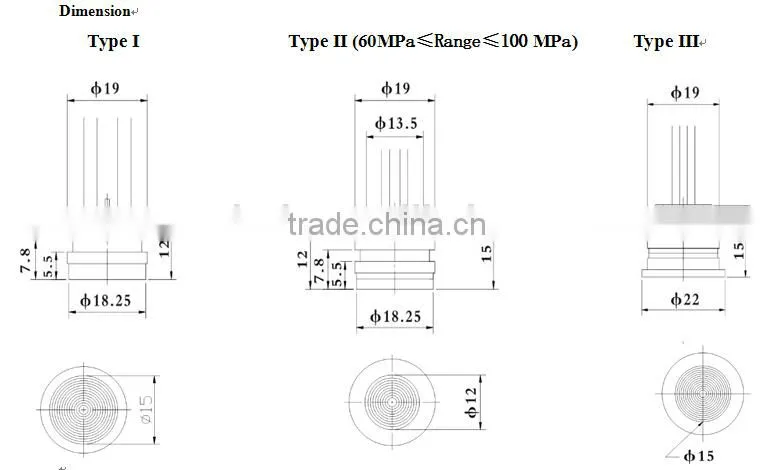

Φ19 mm standard dimension
Multiple profile
High accuracy,good stability
Constant voltage supply
Low output drift
Application
Measurement pressure of gas and liquid
Petroleum exploitation
Water supply,warm supply of town
Process control system
Aviation and navigation inspection
Hydraulic pressure

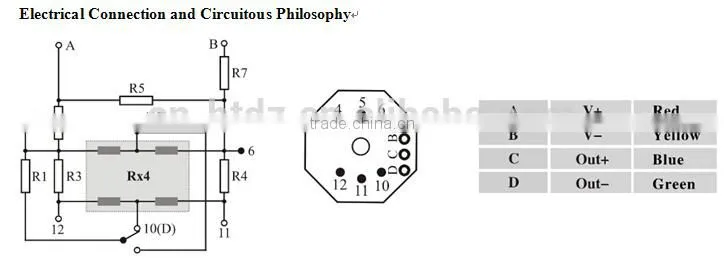

Electrical Data
Supply: 10VDC Input Impedance :6KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ Insulation Resistance:≥100MΩ/50VDC
Insulation Voltage:500VAC between the case and electrical connections will not cause damage
Medium Compatible: Liquids, gases which compatible with 316LSS
