Diffused Silicon Differential Pressure Sensor

Diffused Silicon Differential Pressure Sensor photo-1
US$ 32 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Model Number:
HT20
Payment & Shipping
Payment Methods:
Port of Shipment:
XI'AN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shaanxi, China
Model Number HT20

Specifications

High static pressure
High accuracy and stability

Description

HT20 is piezoresistive silicon differential pressure sensor, the main element is a diffused silicon with high stability. It utilizes silicon oil to transfer pressure from 316L stainless steel diaphragm to sensing element. It has high stability, good reliability ,high static pressure. It is widely used in field which measure differential pressure.

Features


 Wide measurement range: 0~20KPa~2Mpa

 Full 316L.S.S

 316L stainless steel diaphragm

 High static pressure

 High accuracy and stability


Application


Measurement pressure of gas and liquid

Environmental control


Process control

hydraulic and pneumatic equipment

Chemical products and chemical industry


Electrical Data

Supply :1.5mADC                               Input impedance:3KΩ~6KΩ

Output impedance:2.5KΩ~6KΩ                     Insulation resistance:≥100MΩ/50VDC

Insulation voltage:500VAC between the housing and electrical connection will not cause damage

Medium compatible: liquid, gas compatible with 316L stainless steel

Performance Specification

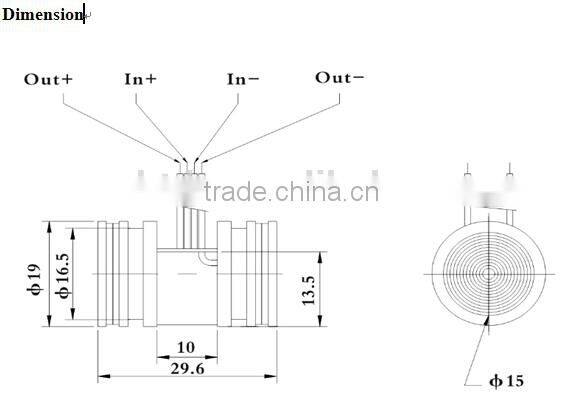

diffused silicon differential pressure sensor

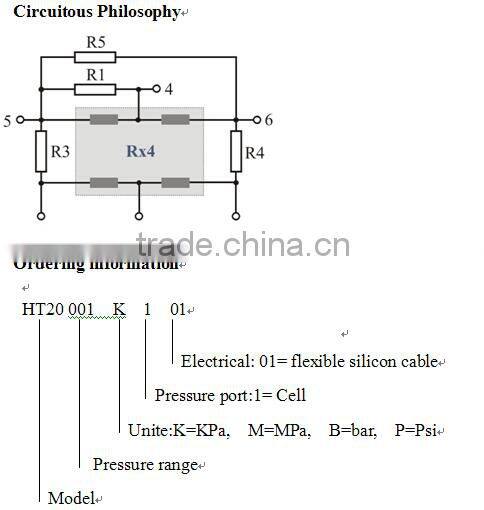

diffused silicon differential pressure sensor

diffused silicon differential pressure sensor
