Description

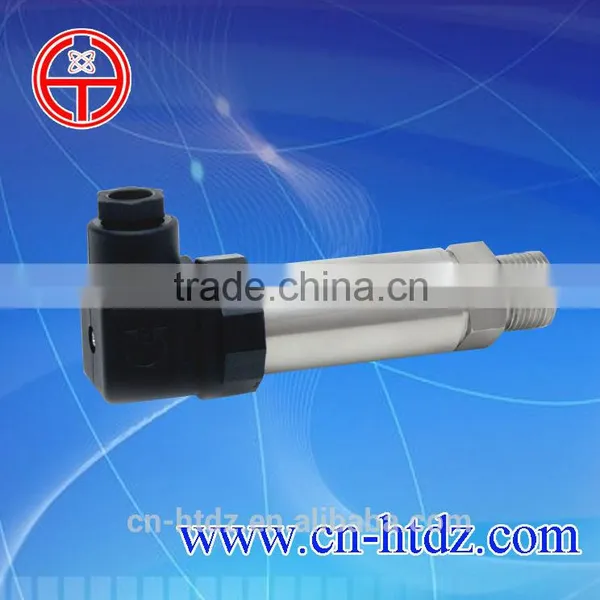

BP93420IB pressure transmitter use HT series piezoresistive silicon oil-filled sensor as measurement component. Sensor’s output transferred to standard output signal via integrated amplify circuit. Have high reliability &stability.
Feature
² Wide measurement range, Full stainless steel
² Protection:IP65;
² Various output signal.
² CE Certification
² Scene adjustable.
² Marking : ExiaIICT6.
Application
² Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.
² Boats&ships and aviation industry
² Hydraulic pressure and pneumatic control system
Specification:
Measurement Range |
-0.1...0~0.01...~100MPa |
Proof pressure |
≤1.5X rated pressure or 110MPa which ever is less |
Pressure type |
Gauge, absolute ,sealed gauge |
Accuracy |
±0.25%(typical) ±0.5%(Max.) |
Long term stability |
±0.1%F.S/year(typical) ±0.2%F.S/year(Max.) |
Temperature Error- Zero |
±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span |
±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range |
-20°C~80°C |
Storage Temperature Range |
-40°C~120°C |
Power supply |
15~30VDC |
Output signal |
4~20mA 0~10/20mA 0/1~5/10VDC |

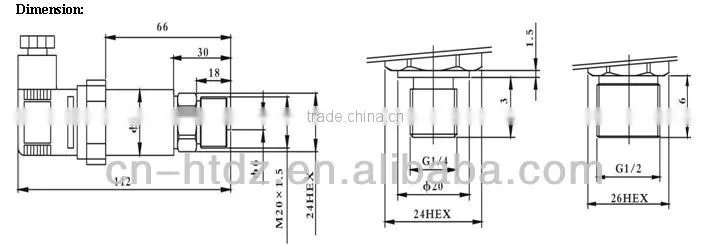

Pressure port |
M20×1.5,G1/2 or customize |
Housing material |
1Cr18Ni9Ti stainless steel |
Diaphragm material |
316L |
O-ring |
Fluororubber |
Cable |
polyethylene |
Insulation resistance |
100MΩ,100VDC |
Protection |
IP65 |
