Specifications
1.transferred analog signal to digital signal.2. Wide range of applications
Description

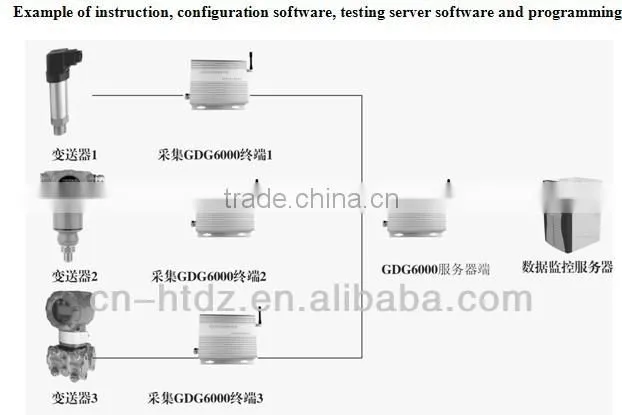

GDG6000 named wireless data transmission unit of transmitter, is the equipment transferring data by wireless network. It can link analog output (two-wire 4~20mA or three-wire 0~5V) of pressure, level liquid, temperature, flux, current, voltage, humidity, revolution, displacement, vibration, PH value, gas and etc. transmitter to analog input part of wireless data transmission terminal. There is an A/D in the terminal which can transferred analog signal to digital signal. By simple settings, it can transfer the collected physical quantities to distant server, at the same time receive the order from the server. The Industrial embedded processor is used to supply a monitoring network with high speed, stability and reliability.
GDG6000 installed industrial wireless module, supplied two-wire and three-wire analog connection, can be easily connected with different transmitter. Once initialization setting is completed, client site and server in data center can be connecter by wireless network to fulfill data transfer.
Application
1. Electric power monitoring
2. Oil field monitoring
3. Long-distance meter reading
4. Street lamp monitoring
5. Environment inspecting
6. Weather inspecting
7. Irrigation inspecting
8. Hot-water network
9. Ammeter inspecting
10. Motor room inspecting
11. Traffic indicator
12. Coal inspecting
13. Earthquake monitorin
14. Vehicle inducement
15. Water supply monitoring
16. Highway monitoring
17. Noise real-time monitoring
18. Environmental pollutant resource monitoring
19. Real-time transferring monitoring of water supply
20. Auto-remote control system of electric power
Specification
GSM/GPRS communication parameter | ||
Criterion |
GSM |
|
frequency |
Dual-frequency 850/1900 or 900/1800 MHz |
|
Wireless terminal number | ||
At the same time the number of terminals connected to the server |
8,16,32,64 |
|
Serial communication parameter | ||
Baud rate |
1200 bps to 19200 bps |
|
Data bit |
8 |
|
Stop bit |
1 |
|
Checkout |
None |
|
Weight |
130 g |
|
Dimension |
108 x 65 x 26 mm |
|
Environment parameter | ||
Working temperature |
-30 to 700C |
|
Working humidity |
5 to 95% RH |
|
Storage temperature |
-40 to 750C |
|
Power supply | ||
Voltage receive |
5 to 16 VDC |
|
Product guarantee | ||
Warranty time |
1 year |
|
Dimension
