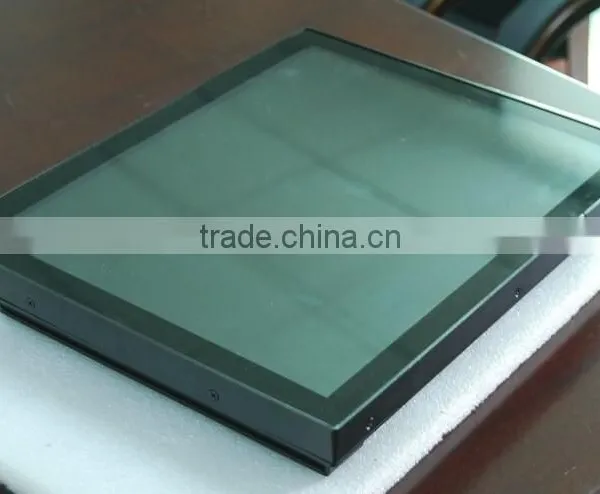

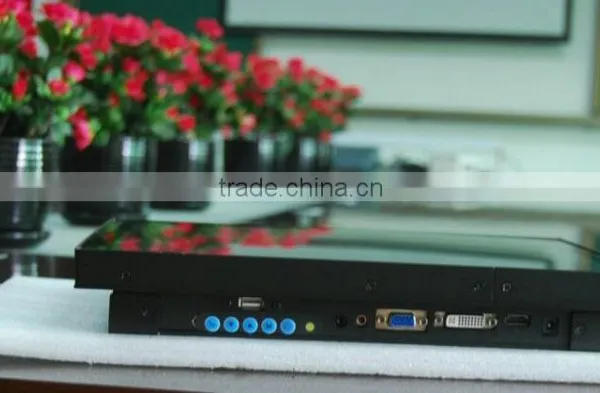

15 inch industrial rugged projected capacitive touchscreen panel pc
1. Class A+ grade 335 standard full new and original factory packing LCD screen, brand for SAMSUNG, LG, CMO ,AUO, Toshiba, Sharp, etc.
2. High-class metal material frame, the color can be customized.
3. Ultrathin, high light, perfectly clear acrylic board or tempered glass on the surface of the LCD screen to protect the screen being damaged.
4. Touch Screen can be added.
5. IR Motion Sensor can be customized.
6. Build-in anti-thief system included.
7. With standard wall mount bracket, and VESA holes at the back, can be customized as open frame design.

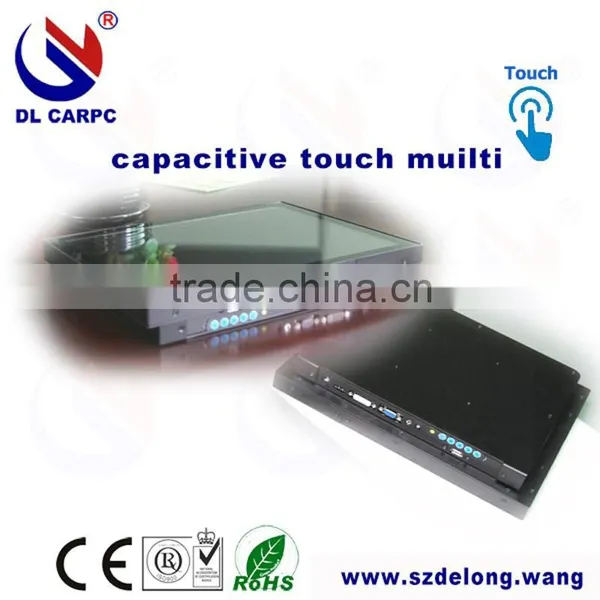

15 inch capacitive touch screen:
15 inch stand all in one pc
stand all in one pc stand all in one pc stand all in one pc v stand all in one pc 15 inch stand all in one pc
| Display Specifications | DELONG dl150A-PCT |
| LCD Size/Type | 15" Diagonal TFT Active Matrix Panel |
| Aspect Ratio | 4:3 |
| Active Area | |
| Horizontal: 305.1mm | |
| Vertical: 229.1mm | |
| Pixel Pitch | |
| Horizontal: .297mm | |
| Vertical: .297mm | |
| Panel Resolution | 1024 x 768 |
| Display Modes | VGA 640 X 480 (60/66/70/72/75 Hz) |
| Display Color | 16.2 Million |
| Contrast Ratio | 500:01:00 |
| Brightness | 225 nits |
| Response TIme | 8 ms |
| Viewing Angle | Horizontal: 140° Vertical: 125° |
| Video Input Format | RGB Analog 0.7V peak to peak |
| Video Sync Format | Separated H&V Sync / Composite Sync / Sync-on Green |
| Video Signal Input | D-sub 15 pin female (Analog) |
| Physical Specifications | |
| Dimensions Including Stand (WxHxD) | 364.3mm x 322.9mm x 206.7mm |
| Net Weight | 4.9 kg |
| Shipping Weight | 7.9 kg |
| Box Dimension (LxWxH) | 465mm x 375mm x 288mm |
| Electrical Specifications | |
| Power Supply | AC Input 100 ~ 240 V DC 12 V |
| Power Consumption | |
| Operating: 25W | |
| Sleep: 3W | |
| Off: 1W | |
| Touch Specifications | |
| Touch Technology | Projected Capacitive |
| Touch Interface | USB (Type B) |
| Multi-Touch Support | At least 2 unambiguous points |
| Multi-Touch OS Support | Windows 7 & Linux - Native Mac OSX - TUIO |
| Single-Touch OS Support | All Windows and Linux Mac OSX |
| Environmental Specifications | |
| Temperature | |
| Operating: 0°C ~ +40°C | |
| Storage: -20°C ~ +60°C | |
| Humidity | |
| Operating: 20% ~ 80% | |
| Storage: 10% ~ 90% | |
| Miscellaneous Specifications | |
| OSD Keys | Power On/Off, Select, Down, Up |
| Contrast, Brightness, Auto Adjust, Left/Right, Down/Up | |
| Horizontal Size, Fine, OSD Left/Right, OSD Down/Up | |
| OSD Timeout, Factory Reset, Language, RGB, Audio | |
| Remote | Optional remote is available for controlling all OSD functions |
| Audio | Not Available in Slim Line Model |
| Plug & Play | DDC 2B Compatible |
| Compliance | CE, RoHS |
15 inch touch screen overlay kit , 15 inch touch screen overlay kit 15 inch touch screen overlay kit 15 inch touch screen overlay kit 15 inch touch screen overlay kit , 15 inch touch screen overlay kit 15 inch touch screen overlay kit
15 inch capacitive Touch Screen
