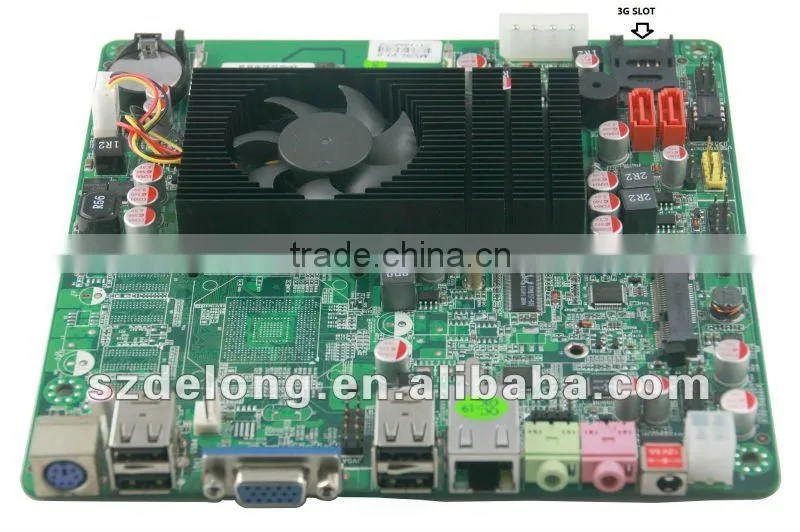

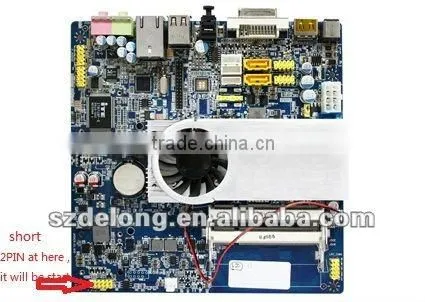

Mini ITX Motherboard AIl In One Motherboard

Name: Mini ITX Motherboard AIl In One Motherboard
Brand: DELONG
SKU: 101858185

US$ 100 - 500 MOQ: 20 Pieces

Key Specifications

Application:

Other, EMBEDED SYSTEM

Chipset Manufacturer:

Intel

Socket Type:

LGA 755

Shenzhen Delonghuale Electronic & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

HONGKONG

Delivery Detail:

Delivery time depends on order quantity.

Application Other, EMBEDED SYSTEM

Chipset Manufacturer Intel

Socket Type LGA 755

Form Factor Other, Mini-ITX, 170mm*170mm

Memory Type DDR3

Graphics Card Type Non-Integrated

Hard Drive Interface SATA

FSB / HT 1052

Brand Name DELONG

Model Number DLD525P-a1

Place of Origin Guangdong, China

Specifications

ATON D525 chipset surport CPU Core 2 1.8ghZ
Mini ITX Motherboard AIl In One Motherboard
all in one motherboard

surport CPU Intel® Core 2 Duo / Pentium® D / Intel® Pentium® 4 HT / Celeron® DUp to 3.8GHz+, 533MHz/800MHz/1066MHz FSB all in one motherboard
Model Name	ALUMINIUM ONE DIN CAR PC
		Processor	LGA775 /CPU Intel® Core 2 Duo / Pentium® D / Intel® Pentium® 4 HT / Celeron® DUp to 3.8GHz+, 533MHz/800MHz/1066MHz FSB
Chipset	Intel® 945GZ Express Chipset
	MCH: 945GZ + ICH7 mBGA
	FWH
System Memory	1PCS DDR2 SDRAM socket, the max size to 2GB DDR SDRAM
	PC533/667 DDR SDRAM
VGA	Intel® 945GZ Express Chipset/the max memory to 224MB
Expansion Slots	1 PCI Express x16,
Onboard IDE	144pin IDE +140pin IDE ,surpot 2pcs IDE device;UDMA33/66/100/133, 44pin IDE can be surport DOM ,no other 5V input
SATA IDE	1PCS Serial II ATA point, surport 3Gb/s
Onboard LAN	inboarded RTL 8101E 10/100 BaseT LAN
Onboard Audio	used ALC655 Chipset,surport 6pcs voice CH channel ;/(Line out, Line, Mic jacks on board)
Onboard TV Out
Back Panel I/O	1 PS2 mouse port
	1 PS2 keyboard port
	1 Serial port
	1 VGA port
	1 RJ45 port
	2 USB 2.0 ports
	Audio jacks (x6)
Onboard I/O Connectors	2 USB connector for 4 additional USB 2.0 ports
	1 Serial port connector for a second com port
	2 Fan connectors: CPU/Sys FAN
	ATX Power connector/24-pin+1*4
BIOS	Award BIOS
Operating System	Windows 2000/XP, Linux, Win CE/XPe
Operating Humidity	0% ~ 95% (relative humidity; non-condensing)
Form Factor	Mini-ITX (8 layers) 170mm*170mm
RAM	1G ROM DDR2 DIMM x1 , the max to 2GB
disk driver	80G 2.5inch mini disk
power supply	supply delay shutdown time and start time

Memory Specifications
Max Memory Size (dependent on memory type)	4 GB
Memory Types	DDR3-800 (SODIMM only); DDR2-800/667
# of Memory Channels	1
Max Memory Bandwidth	6.4 GB/s
Physical Address Extensions	32-bit
ECC Memory Supported	No

Graphics Specifications
Integrated Graphics	Yes

Package Specifications
T_JUNCTION	100°C
Package Size	22mm x 22mm
Processing Die Size	87 mm²
# of Processing Die Transistors	176 million
Sockets Supported	FCBGA559
Low Halogen Options Available	See MDDS

Advanced Technologies
Intel® Turbo Boost Technology	No
Intel® Hyper-Threading Technology	Yes
Intel® Virtualization Technology (VT-x)	No
Intel® Virtualization Technology for Directed I/O (VT-d)	No
Intel® Trusted Execution Technology	No
AES New Instructions	No
Intel® 64	Yes
Idle States	No
Enhanced Intel SpeedStep® Technology	No
Intel® Demand Based Switching	No
Thermal Monitoring Technologies	No
Execute Disable Bit	Yes
