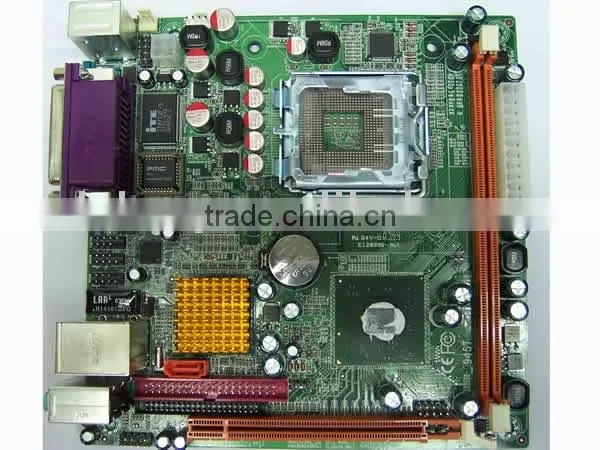

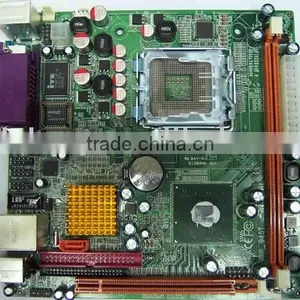

Help CenterMini ITX Motherboard
US$ 900 - 1,500
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Application:
Desktop
Brand Name:
DELONG
Model Number:
DL945P1
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot 2013! VESA Bracket All In One Computer Monitor StandUS$ 6 - 15MOQ: 1 Piece -
21.5 Inch TFT-LCD Screen DisplayNegotiableMOQ: 25 Pieces
-
21.5 Inch TFT-LCD Screen/hight Resolution/A+ Grand LCD ScreenUS$ 20 - 500MOQ: 50 Pairs
-
Mini 5.6 Inch TFT-LCD/a-Si TFT-LCD PanelUS$ 50 - 500MOQ: 50 Pairs
-
Hot Sale Desk Mount Bracket for LCD Free Standing/Single-side BracketUS$ 10 - 20MOQ: 20 Pieces
Application
Desktop
Brand Name
DELONG
Model Number
DL945P1
Place of Origin
Guangdong, China
Form Factor
Other, 170mm*170mm
Specifications
945 chipset surport CPU Core 2 Duo / Pentium D/ Up to 3.8GHz 533MHz/800MHz/1066MHz FSB| surport CPU Intel® Core 2 Duo / Pentium® D / Intel® Pentium® 4 HT / Celeron® DUp to 3.8GHz+, 533MHz/800MHz/1066MHz FSB | ||||
| Model Name | ALUMINIUM ONE DIN CAR PC | |||
| Processor | LGA775 /CPU Intel® Core 2 Duo / Pentium® D / Intel® Pentium® 4 HT / Celeron® DUp to 3.8GHz+, 533MHz/800MHz/1066MHz FSB | |||
| Chipset | Intel® 945GZ Express Chipset | |||
| MCH: 945GZ + ICH7 mBGA | ||||
| FWH | ||||
| System Memory | 1PCS DDR2 SDRAM socket, the max size to 2GB DDR SDRAM | |||
| PC533/667 DDR SDRAM | ||||
| VGA | Intel® 945GZ Express Chipset/the max memory to 224MB | |||
| Expansion Slots | 1 PCI Express x16, | |||
| Onboard IDE | 1*44pin IDE +1*40pin IDE ,surpot 2pcs IDE device;UDMA33/66/100/133, 44pin IDE can be surport DOM ,no other 5V input | |||
| SATA IDE | 1PCS Serial II ATA point, surport 3Gb/s | |||
| Onboard LAN | inboarded RTL 8101E 10/100 BaseT LAN | |||
| Onboard Audio | used ALC655 Chipset,surport 6pcs voice CH channel ;/(Line out, Line, Mic jacks on board) | |||
| Onboard TV Out | ||||
| Back Panel I/O | 1 PS2 mouse port | |||
| 1 PS2 keyboard port | ||||
| 1 Serial port | ||||
| 1 VGA port | ||||
| 1 RJ45 port | ||||
| 2 USB 2.0 ports | ||||
| Audio jacks (x6) | ||||
| Onboard I/O Connectors | 2 USB connector for 4 additional USB 2.0 ports | |||
| 1 Serial port connector for a second com port | ||||
| 2 Fan connectors: CPU/Sys FAN | ||||
| ATX Power connector/24-pin+1*4 | ||||
| BIOS | Award BIOS | |||
| Operating System | Windows 2000/XP, Linux, Win CE/XPe | |||
| Operating Humidity | 0% ~ 95% (relative humidity; non-condensing) | |||
| Form Factor | Mini-ITX (8 layers) 170mm*170mm | |||
| RAM | 1G ROM DDR2 DIMM x1 , the max to 2GB | |||
| disk driver | 80G 2.5inch mini disk | |||
| power supply | supply delay shutdown time and start time | |||
