YD9200 Vibration Velocity Sensor
- 30000 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Ce Zhen | Model Number: | YD9200 |
Usage: | Vibration Sensor | Theory: | Other, Magnetic | Output: | Analog Sensor |
Product Description

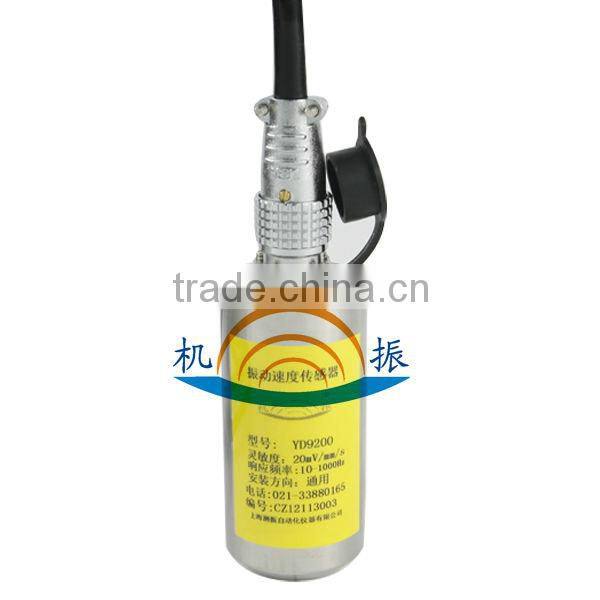

YD9200 Vibration Velocity Sensor
1. Brief Introduction
YD9200 Vibration Velocity Sensors are mainly installed on the bearing c over of a variety of rotating machinery, such as turbines, compressors, fans, pumps, etc. It is the electromagnetic sensors that output voltage by moving coil cutting the magnetic line of force, therefore, the work does not require power supply and easy to install .
2.Technical parameters
2.1 Sensitivity: 20 mv/mm/s
2. 2 Frequency Response: 5 ~ 1000 Hz 10 ~ 1000 Hz (Optional)
2. 3 Deviation: 10- 300HZ < 2% 300- 1000HZ < 4%
2. 4 Automatic Vibration Frequency: 10Hz
2. 5 Amplitude can be measured: ≤2mm(P — P)
2. 6 Maximum acceleration: 10g
2. 7 Measuring direction: Vertical horizontal dual
2. 8 Operation Temperature: degree -40°C~100°C (-40°C~150°Ccustomized) Relative Humidity ≤90%
2. 9 Dimension: φ30×70mm
2.10 Weight: about 400g
Picture 1. Outline
3.Installation
3. 1 Installation location: Vertical or horizontal mounting on the measured vibration point, putting the M8×1.25 screw magnet on the bottom of the sensor adsorbed on the test case, then tighten the sensor on the top.
3. 2 Installation dimensions and specifications: Ref Picture 3(installation and protection of the speed sensor),If the sensor installation position eroded by the high-temperature steam, in order to decrease the ambient temperature of the sensor, protective measures is required. Under normal circumstances, protection is not required.
3. 3 Use and Insulation Requirements. Sensor output is floating ground,number 1, 2,3,4 is marked the on the plug and socket which connect sensors. Considering solid and reliable connection of wiring,respectively taking “1,2” “3,4” short circuit and use together. “1,2” as terminal A of the sensor signal output,“3,4”as terminal B,while connecting with other equipment, A,B is interchangeable,no need to distinguish.Connecting wires required to have good insulation properties, two-core shielded cable is applied,one side shield layer of the cable is hung in the air, the other side connected with ground . Screw M10 is equipped for sensors installation.
We provide shields for protective measurement of the sensor installation. Customers can choose accessory according to your local conditions.
4.Note: The sensor should prevent from server hit and beat.
