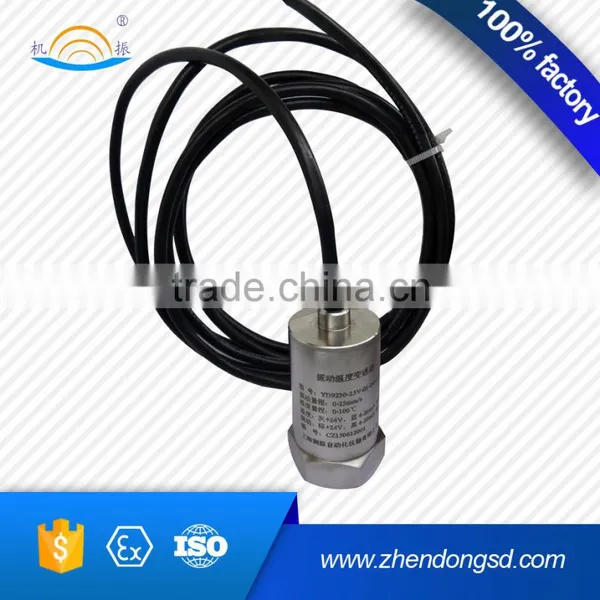

1.Brief Introduction:
YD9230 integrated vibration temperature transmitter is collected by PT100 platinum resistance
temperature. Output 4-20mA current signal, vibration acquisition by piezoelectric. Using
imported detectors,with high anti-interference ability.Output 4-20mA current signal, stable
and reliable. Shell is made of 316 stainless steel materials, corrosion resistance.
Integrated vibration temperature transmitter using independent signal of vibration and
temperatureoutput circuit .The circuit and the signal is independent of each other.
Various parameters have been strictly calibrated at the factory, the user does not
need a secondary calibration.
2.Technical Specifications:
2.1 Vibration Range: 0 ~ 100mm / s (Velocity)
0-1000um (Displacement)
0-30g (Acceleration)
2.2 Temperature Range: -50 ℃ ~ 150 ℃
2.3 Current output : 4~20 mA (Velocity ,Displacement or Acceleration)
4~20 mA (Temperature )
2.4 Output Impedance :<500Ω
2.5 Accuracy:±1%
2.6 Power Supply: DC24V
2.7 Working temperature : -30~70℃
3.Transmitter Dimensions

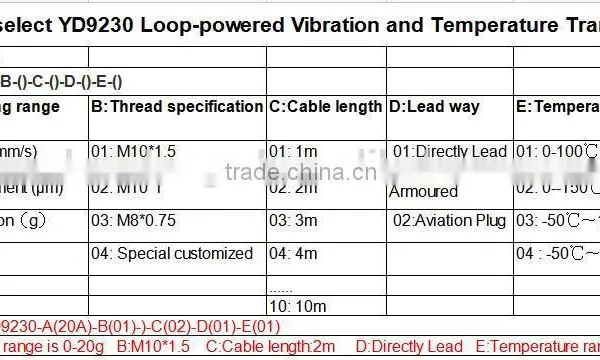

4.Type Selection
YD9230- A00-B00-C00-D00-E00
A.Vibration measuring range ( Choose “V”,“D” or "A" )
V:Velocity(mm/s)
01 0--10mm/s 02 0--20mm/s 03 0--30mm/s ......
D:Displacement (μm)
01 0-100um 02 0-200um 03 0-300um ...........
Acceleration
01:0-10g 02: 0-20g 03:0-30g ........
B.Mounting thread
01 M10*1.5 02 M10*1 03 M8*0.75 04: Customized
C.Cable Length
01: 1m 02: 2m 03: 3m 04: 4m ......
D.Lead way:
00(K):Directly lead. “K” means armored
01: Aviation plug
E.Temperature Range :
01: 0-100℃ 02: 0--150℃ 03: -50℃~150℃ 04 : -50℃~100℃
