CZ9600

CZ9600 thumbnail-1
CZ9600 thumbnail-2
CZ9600 thumbnail-3
CZ9600 photo-1
CZ9600 photo-2
CZ9600 photo-3
US$ 459.00 - 489.00 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Ce Zhen
Model Number:
CZ9600
Contact Supplier Request Quote Chat Now
Shanghai Cezhen Automation Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Ce Zhen
Model Number CZ9600
Usage Vibration Sensor
Theory Capacitance Sensor
Output Analog Sensor

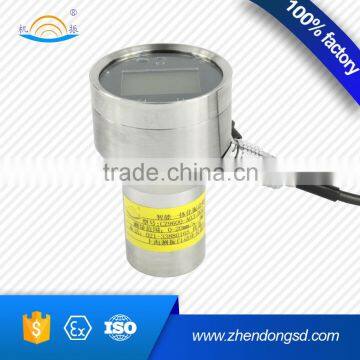

CZ9600 Smart Integrated Vibration Sensors are the latest research and development product by our company.
They are the first batch products that fully meet the intelligent functions .The transmitter can completedly replace
the traditional industry that use sensor with instruments. These transmitters are used for monitoring and
protecting the large rotating machines when they vibrate, like steam turbine, water turbine, fan, compressor,
oxygenator, electric machine, pump, gear box and so on. They can make the measurement of the changes
because of machine casing vibration, bearing vibration, the unbalancing vibration and misalignment of rotor,
loose parts, rolling bearing damage, gear damage and some other reasons.



A. Technical Standards:

  • Frequency response: 4.5HZ-1000HZ (vertical, horizontal) 10HZ- 1000HZ (universal, vertical or horizontal)
  • Range: 0-50mm / s smart adjustable (press the button or adjust HART Communicator),0-500um smart
  • adjustable (press the button or adjust HART Communicator)
  • Supply Voltage: DC 12 ~ 36V
  • Output: two-wire
  • Overload Current: ≤ 50mA (overheating or short circuit protection)
  • Load resistance: 500 Ohm
  • HART features: process variables, analog output, lower limit of analog range, upper limit of analog range
  • lower limit of sensor range, upper limit of sensor rang, damping analog range etc.
  • Operating temperature: -40 ~ 85 °C (LCD working limit temperature 85 °C)
  • Installation: vertical, horizontal, universal
  • Weight: 350 grams (stainless steel shell optional)
  • Dimensions: φ58mm × 90mm (LCD)



B. Optional Project Parameters:

  • Stainless steel shell
  • Alarm relay output
  • 485 communication protocol
  • Real-time storage function
  • Wireless 2.4G ZIGBEE industrial local area network transmission
  • Unlimited GPRS network transmission
  • Output voltage DC 0-5V



C.Outline dimension drawing of the transmitter:

CZ9600
