YD61 Portable Vibration Meter

FOB Price

USD $699 - $999 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	Ce Zhen
Model Number	YD61

Product Description

YD61 Portable Vibration Meter

A. Usage and Application:

The YD61 vibration measuring instrument is a kind of portable patrol monitor apparatus. It consists of an acceleration sensor and a smart measuring instrument with a peak detector function. The meter has LCD and can store 0-999 a total of 1000 data points. It has small size, no external power supply, safe and reliable work, visual reading, avoiding manual record at the measurement site, data management with the PC machine such features, therefore it is particularly suitable for the vibration loop detection and data management on turbine generator, electric motors, compressors, pumps and other equipment in electricity, petroleum, chemicals.

B.Features:

1. Simply connecting the sensor can form a complete measurement system;

2. with the peak to peak ( P-P ) is expressed the vibration displacement;

3. three and a half LCD display;

4. 9V laminated battery power supply, a low voltage directive function, to ensure the accuracy of measurement.

C. Main Technical Parameters:

1. Measurement Range:

Displacement (P-P): 1-1000um

Speed (RMS):0.1-100.0mm/s

Acceleration (O-P): 0.1-50.0m/s²

2.Frequency response :10Hz~1000Hz

3.Linear error :<±5%

4.Storage capacity:0 -999 1000 points

5.Communication Interface: RS232/USB interface

6. Environmental Conditions:

Ambient temperature: 0~70°C

Relative humidity: <85%

7. Size: 165×65×30mm

8. Weight: 480 g (including battery)

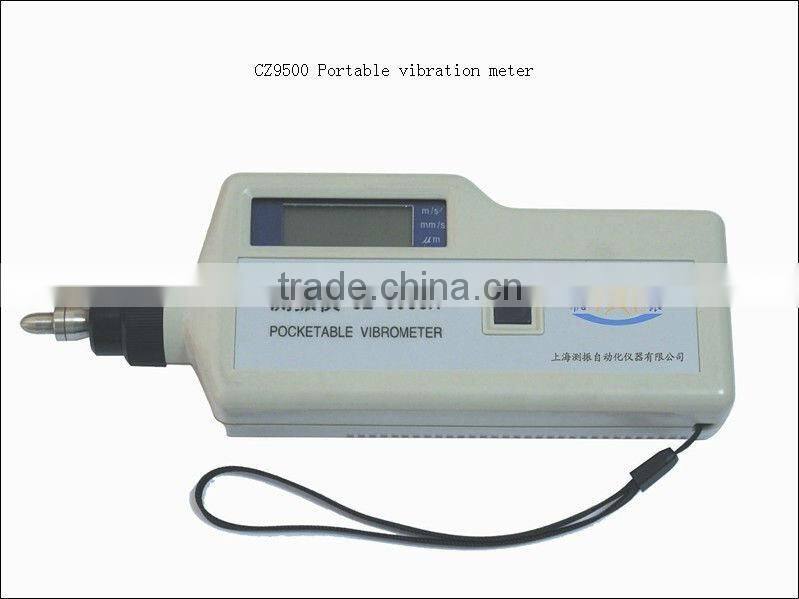

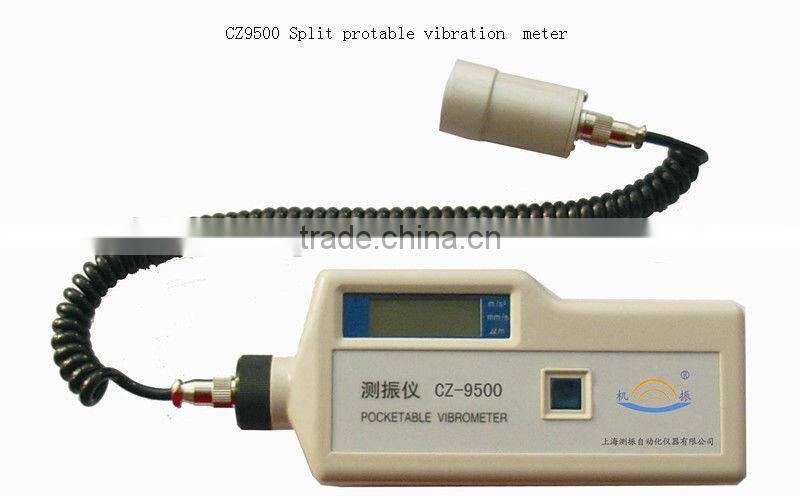

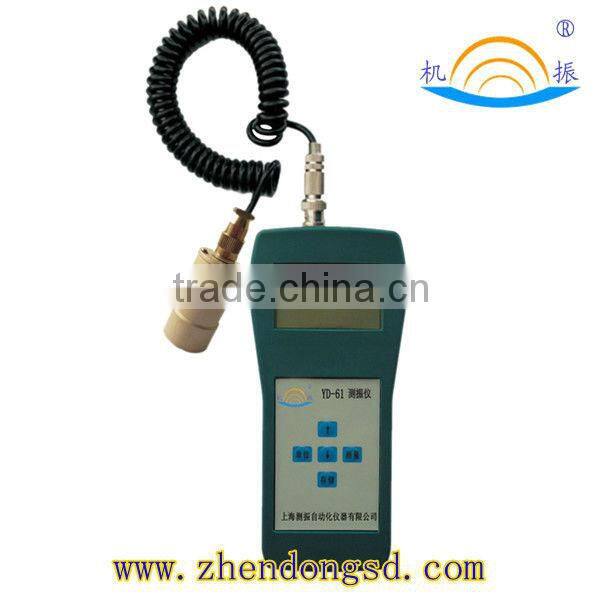

Product picture
