Specifications
1.Suitalble for thick metal cutting2.American Cut-Master plasma power
3.YASKAWA servo motor
4.Start control system
5.CE
Aluminum Steel USA Hypertherm CNC Plasma Cutting Machine
1. Brief introduction:
New styles of industrial plasma cutting machine for thick metal plates,such as iron / carbon / stainless steel / aluminum / galvanized / titanium / copper sheets.It can be used to cut almost all kinds of metal plate automatically.

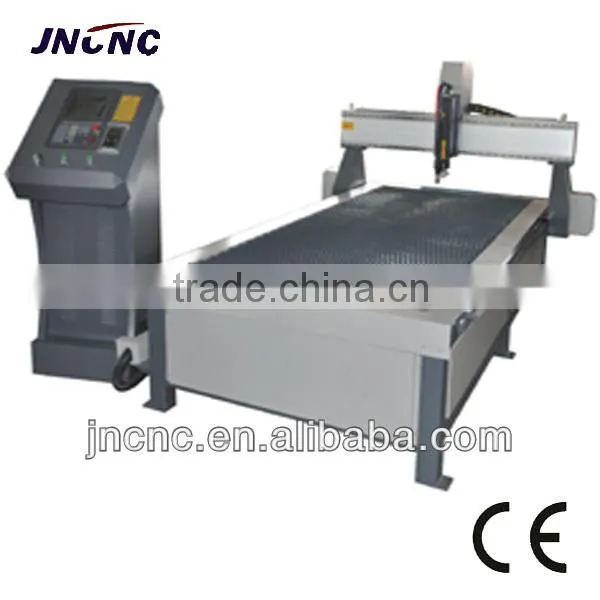

2. Hypertherm cnc plasma cutting machine picture:
3. Parameters:
Model Name |
CNC-IP1325 |
Working Area |
1300*2500mm |
Power brand |
Hypertherm |
Motor |
YASKAWA servo motor |
Cutting Thickness |
(40A)0.5-10mm (120A)3-16mm (100A)3-25mm |
Plasma power |
45A (option: 65A/85A) |
Cutting Speed |
0--8000mm/min |
Moving Speed |
0---50000m/min |
Input Voltage |
3phase 380V |
Power Frequency |
50HZ |
Power |
8.5KW-10.5KW |
Rail |
Square rail |
Control System |
Start control system made in Sino-US joint venture ( with USB Interface) |
Arc |
Untouched arc striking, Arc Pressure Adjuster |
Working material |
Iron,steel,aluminum sheets,galvanized sheets,titanium plates |
Warranty |
One year |
Optional Equipment |
DSP handle operating system |
4. Features:
1) Welded lathe bed of thick-wall profiled steel, artificial prescription,more solid and stable.
2) Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission.
3) High sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.
4) Small cutting gap, no residua.
5) Advanced CNC control system, auto arc, and stable performance

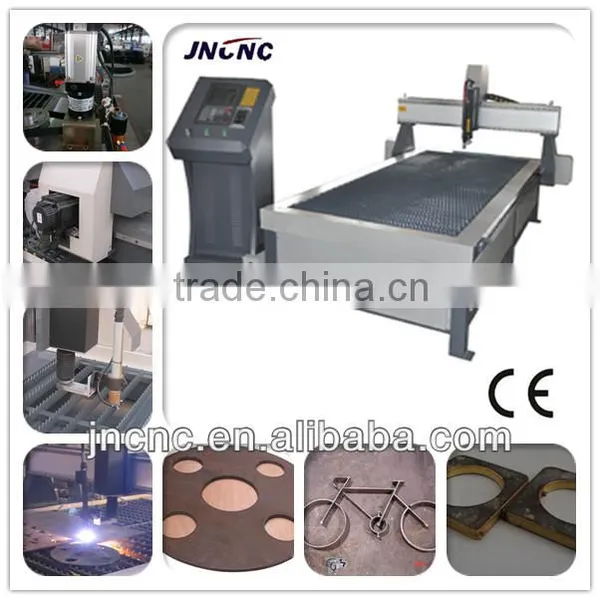

5.Main parts picture:
1) cutting torch,arc pressure adjuster
2) Panasonic YASKAWA servo motor
3) Reasonable platform design, 10mm thickness steel plates fixed on the table.
6. Samples pictures:
7. Packing details:
8.Factory show:
9.Exhibition show:
