Plasma CNC Iron Cutter

Specifications

1. Auto ARC starting
2. Taiwan linear square rail
3. Panasonic servo driving
4. Fastcam software
5. CE/FDA certificate

  Plasma CNC Iron Cutter

1. Brief Introduction:

It is mainly used in steel construction, steel tower, plates, construction machine, boats and ships manufacturing industry.

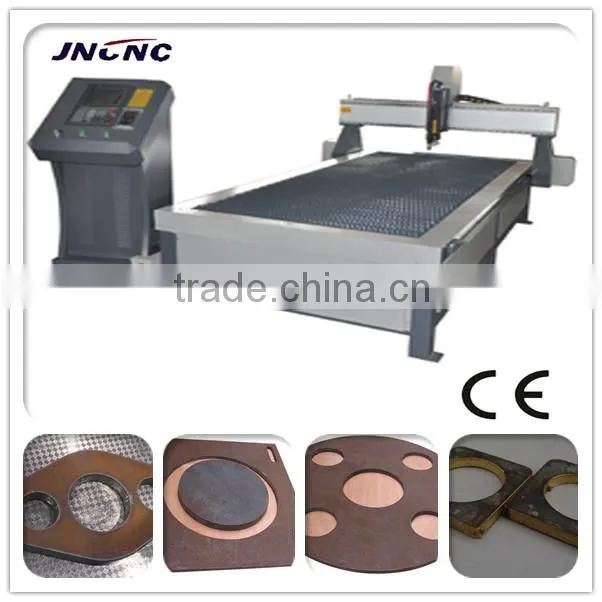

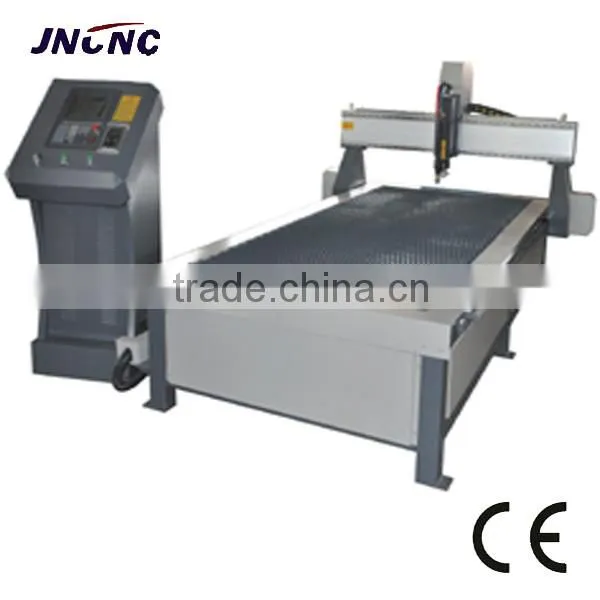

2. Plasma CNC Iron Cutter Picture:

 3. Parameters:

Working Area	1500*3000mm(59*102 inch)   1300*2500mm
Cutting Thickness	(120A)3-16mm (200A)   3-30mm ( according to the material)
Moving  Speed	0-50000mm/min
Cutting Speed	0-10000m/min
Cutting accuracy	±0.02mm
Power Supply	HWAYUAN / American HYPERTHERM (HPR)/ American THERMADYNE
Input Voltage	3 Phase 380V
Power Frequency	50HZ
Flies Transfer	USB Interface
Arc type	Untouched type
Motor	Panasonic servo motor
Guide rail	Taiwan imported linear guide
Transmit way	Taiwan imported ball screw
Operation language	English or Chinese
Command	G code, *uoo, *mmg, *plt
Optional power source	American Hypertherm and American Thermadyne
Spare parts	Electrode, Electricity nozzle and Water jacket
Control system	DSP or Start control system
Applicable material	Steel, carbon steel, stainless steel, iron plates, aluminum and copper

4. Pictures of Main Parts:

5. Features:

1) It can apply to steel plates, copper plates, iron plates, the aluminum plates, galvanized plates, titanium plates and other metal plates.

2) The whole structure is seamless welding steel-structure, not easy to be deformed, simple operation and durability.

3) During the plasma is cutting, if the torch of plasma breaks at any points, take the torch out of the machine, adjust the torch, then the torch will automatically return to break points.

4) Panasonic servo motor, Taiwan servo reducer device and high accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement.

5) Starfire control system made in Sino-US joint venture and Germany design software FastCAM with auto material saving function.

6) American Cut-Master plasma power supply (120A/200A) together with high sensitive arc pressure adjuster. Self-adjusting to choose the best distance between plasma gun and working piece automatically in order to ensure cutting accuracy.

6. Samples Pictures:

7. Warranty and After-sale Service:

1) The machine warranty is 1 year.

2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.

4) Samples for free

5) CE/ISO certificate

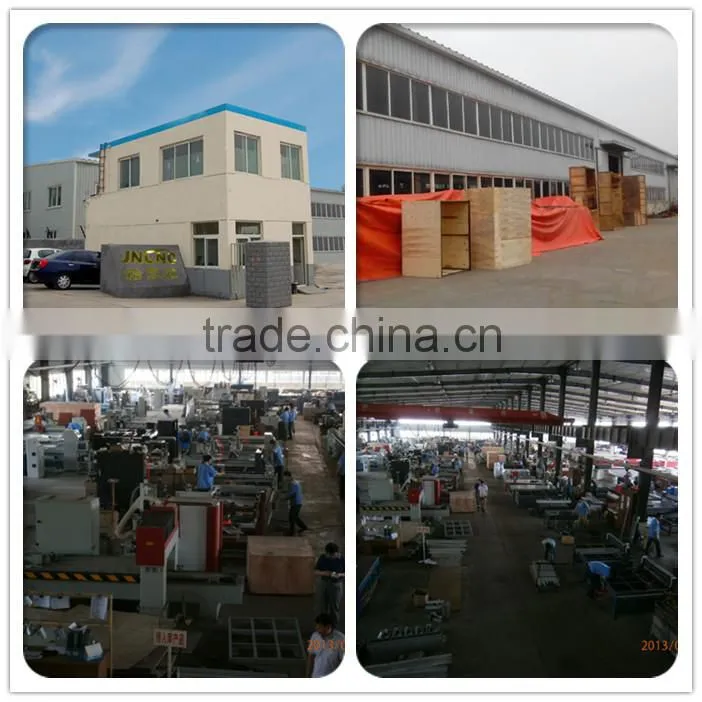

8. Factory Picture:
