Specifications
1. Auto ARC starting2. Taiwan linear square rail
3. Panasonic servo driving
4. Fastcam software
5 CE, FDA
china cnc sheet metal cutting machine
1. Brief Introduction:
New styles of CNC sheet metal cutting machine for cutting thin and medium thick plates. The structure of the machine is made from special industrial aluminum, which is separated from the cutting table. With the features of easy installation, human-computer interface, easy operation, stable work, elegant appearance, they can be used to cut almost all kinds of metal plate automatically.

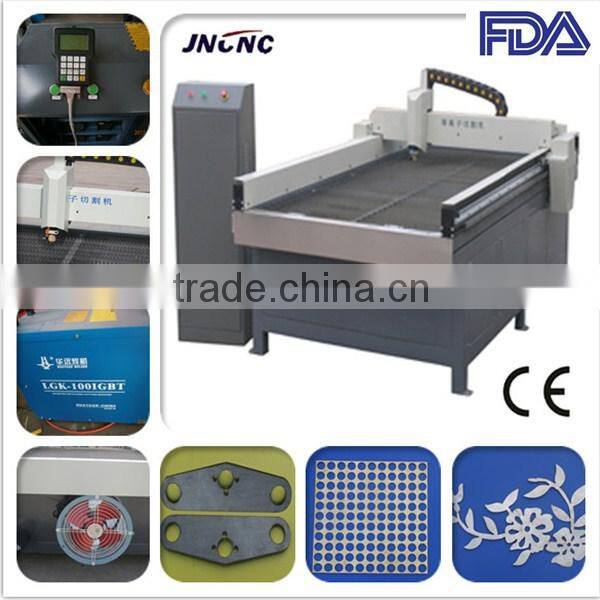

2. Sheet Metal Cutting Machine Picture:
3. Parameters:
Working area |
1300mm * 2500mm 1500*3000mm 2000*4000mm |
Working precision |
±0.04mm |
Location precision |
±0.05mm |
X,Y,Z structure |
X,Y gear rack, Z cylinder |
Power consumption |
8500W |
The speed of open working |
25000mm/min |
The speed of working |
50000mm/min |
Plasma power |
60A/100A |
Working voltage |
AC 380V/60HZ, AC220V/50HZ |
Working order |
G Code |
Plasma Cutting Thickness |
0.2-10mm mild steel |
Cutting Speed |
0-8000mm/min |
Cutting Table |
Normal Cutting Table /work piece collecting drawer cutting table / smoke and dust collector with work piece collecting drawer cutting table. |
4. Features of Sheet Metal Cutting Machine :
1) Using highly-precise linear guides, double-sided synchronized drive, even uses ball screw transmission. The machine works noiselessly with high speed and high precision.
2) Have Chinese, English, French, Portuguese, Russian and other languages.
3) Can choose automatic arc voltage torch height control or automatic mechanical floating style torch height control.
4) Can effectively avoid high frequency interference, and make cutting stable and safe.
5) Power supply adjusts current according to different thickness of the material to ensure cutting materials without burr.
6) Applicable industry: advertising industry, arts and handicrafts cutting, metal plate cutting.

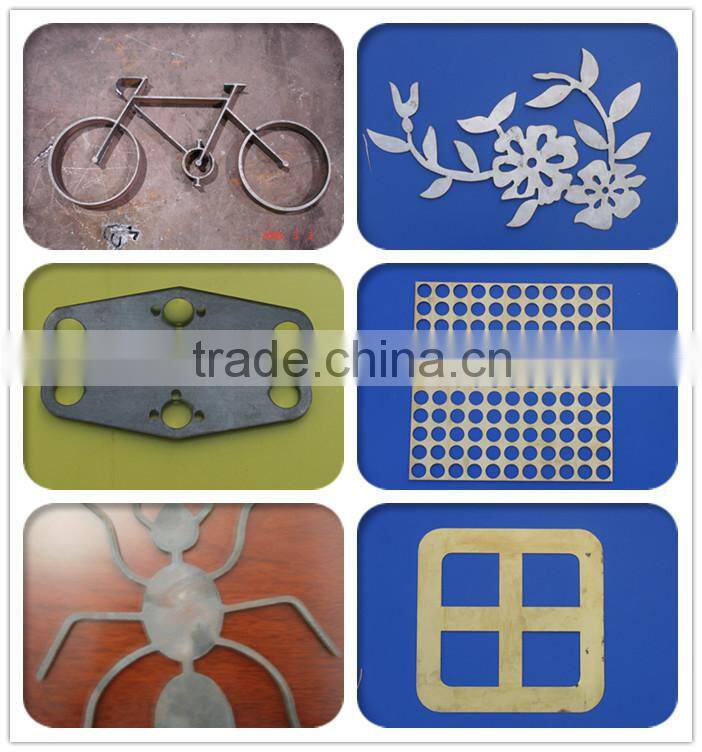

5. Application:
1) Advertising Industry:
Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
2) Mold Industry:
Engraving metal molds made of copper, aluminum, iron and so on.
3) Metal Industry:
For steel, copper, iron, galvanized plate, titanium plate and other metal sheet cutting.
6. Warranty of Sheet Metal Cutting Machine and Service:
1) One year warranty for machine
2) We offer online service 24 hours all day by Skype, Email and so on.
3) You can contact us any time, if urgent, please call us.
4) English manual and Video CD for machine using and maintenance.

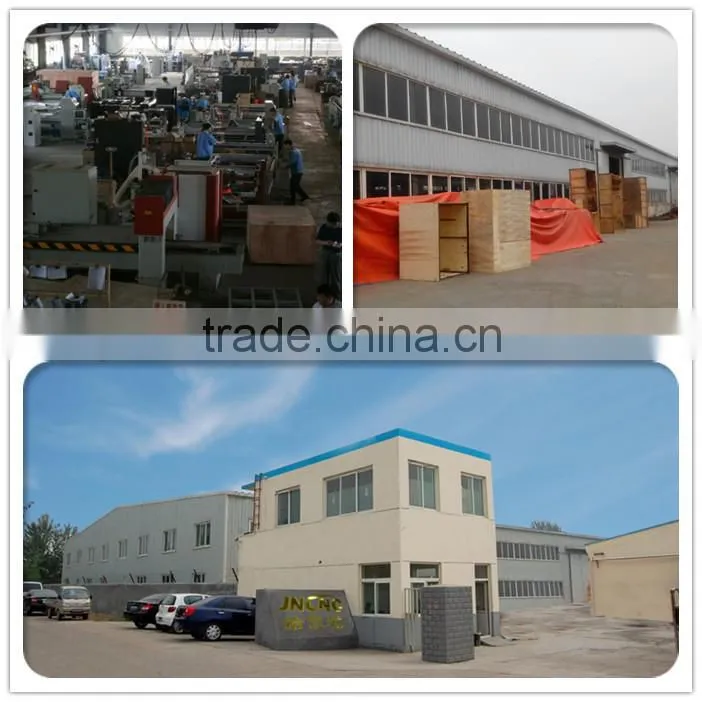

7.Factory Picture:
