Specifications
1. 100,000 hours laser working life2. Reposition accuracy: 0.05mm/m
3. Free maintenance
4. CE/FDA certificate

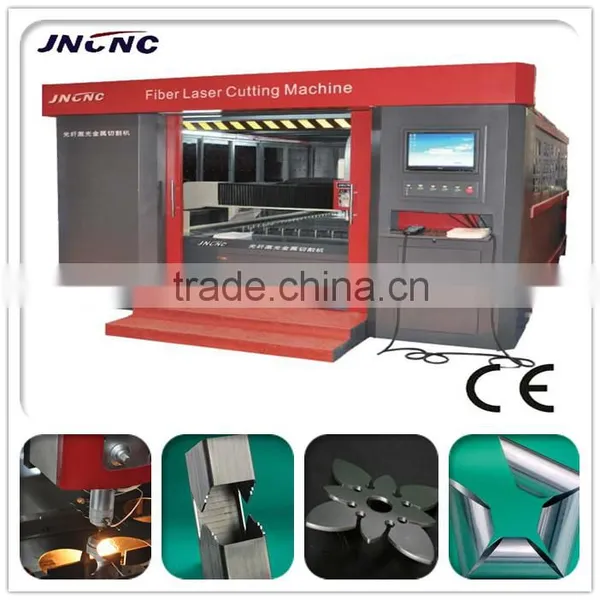

CNC Carbon Steel Fiber Cutter
1. Brief Introduction:
CNC Carbon Steel Fiber Cutter
1).Ideal choice for cutting sheet metal such as Carbon steel, Silicon steel, Stainless steel, and other metal materials .
2).Widely used in sheet metal processing, metal ware, kitchen appliance, household appliance, medical instrument, precision equipment, electric control box, auto parts etc.

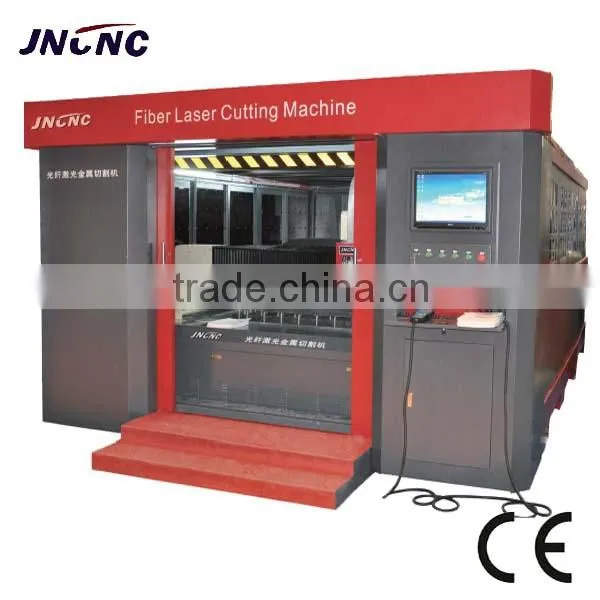

2. CNC Carbon Steel Fiber Cutter Picture:
3. Parameters:
Laser Type: |
CNC Carbon Steel Fiber Cutter
|
||
Laser Power: |
1000W / 500W / 400W /300W/200W |
||
Working area: |
1300 x 2500mm |
1500 x 3000mm |
2000 x 4000mm |
Working Table Structure: |
Fixed / Pallet Working Table |
||
Control System: |
PMAC full-closed loop servo control |
||
Driving Mode: |
Double ball screw driving / Double gear rack driving |
||
Idle/Processing Speed: |
60m/min/24m/min |
||
Positioning Accuracy: |
0.05mm |
||
Cooling System: |
High precision constant temperature water chiller |
||
Protection System: |
Enclosure protection |
||
Power Supply: |
AC220V ± 5% 50/60Hz/AC380V ± 5% 50/60Hz |
||
Total Power: |
7.5KW/6KW~20KW |
||
Support Format: |
PLT, DXF, BMP, AI, DST, DWG, etc. |
||
Floor Space: |
5.4m x 4.6m (shuttle working table) |
||
Other Standard Collocation: |
Metal nesting software, dual-pressure gas route of 3 kinds of gas sources, dynamic focus, remote controller, etc. |
||
4. Features:
1) Fiber Laser Metal Cutting Machine has faster cutting speed and higher quality cutting result compared to other cutting solutions.
2) The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals.
3) Low use-cost and maintenance cost (less energy as the laser is absorbed into the metal being cut). The unit will consume little to no energy when not active, easy operation and convenient maintenance (Long lifespan100,000 hours) of the laser module (laser source 300W, 500W, 1000W for choice).
4) Auto focus system to change focus length automatically while processing uneven materials.

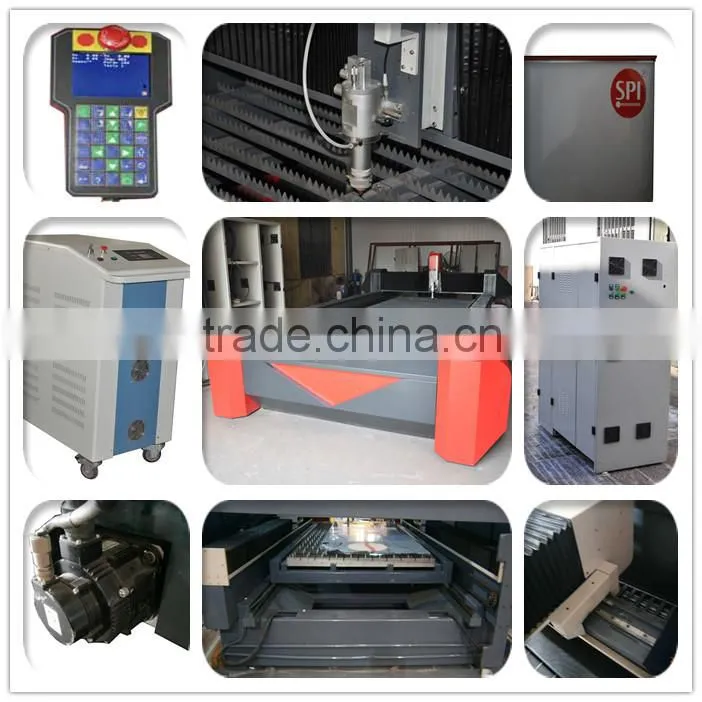

5. Detailed Picture:

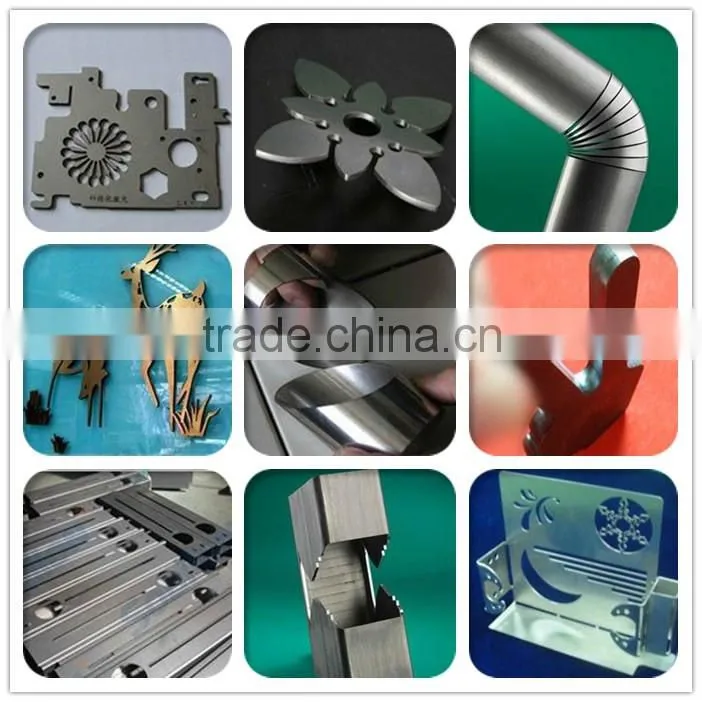

6. Samples Pictures:
7. Advantages of CNC Carbon Steel Fiber Cutter:
1) Compact structure, small floor area.
2) Stability and reliability of light path system and control system.
3) High performance and low operating cost, famous fiber laser with up to more than 100 thousand hours life-cycle.
4) Higher cutting quality and efficiency, cutting speed is up to 15 m/min with appearance and beautiful cutting edge.High precision servo motors, lead screws and guide ways with famous brands to ensure efficiency and accuracy, greatly increasing stability and reliability.

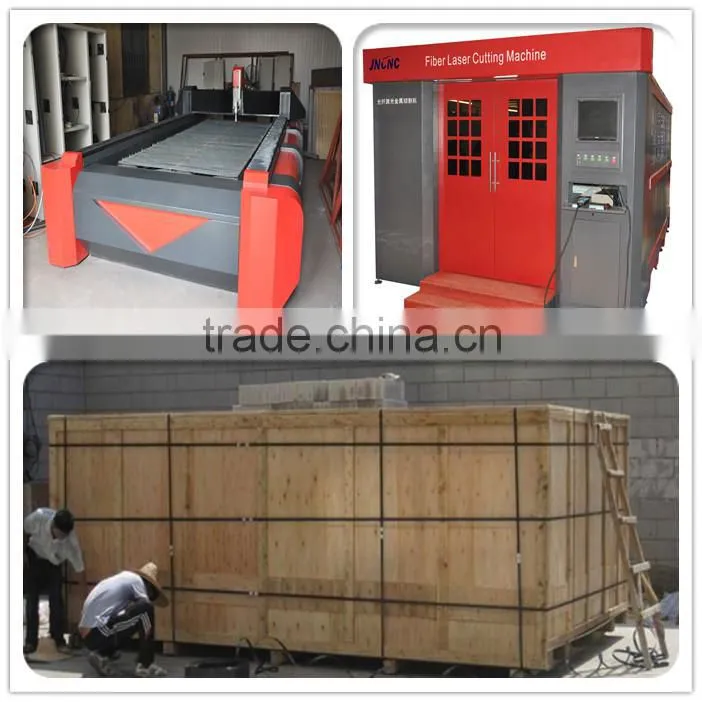

8. Packing Picture:
9. Exhibition Show of CNC Carbon Steel Fiber Cutter
10.Factory Show:
11.Warranty and After Sales Service:
1).One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2).Maintenance free of charge during lifespan.
3).Free training course at our plant.
4).24 hours on line service each day, free technical support.
5).Machine has been adjusted before delivery, operation disk is included.
6).We will provide the consumable parts at an agency price when you need replacement.
