Specifications
1 Smooth surface, no burrs no need post treatment2.200w-1000w laser power
3.13 years' experience
4.CE/FDA
500W SPI fiber laser generator cnc metal cutting machine
1. Brief introduction:
Widely use in cutting thin metal material such as mild steel, stainless steel, iron, alloy with high-speed, high precision, and high efficiency, it is the best choice of the metal processing industry.

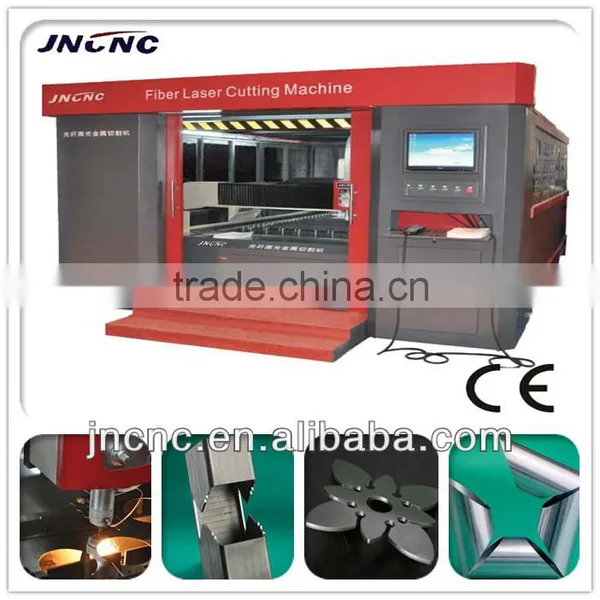

2. CNC metal cutting machine picture:
3. Parameters:
Model Name |
CNC-FL1530 |
Working Area |
1500*3000mm |
Laser Type |
Imported original fiber laser |
Laser Power |
400W(option:SPI 300W/200W, Raycus 500W ) |
Laser Wavelength |
1070nm±10nm |
Max height of lifting |
100mm |
Cutting Thickness |
0.2-12mm |
Max Cutting Speed |
50000mm/min (Adjustable according to different cutting thickness) |
Position Accuracy |
0.03mm |
Minimum Line Width |
≤0.12mm |
Cooling System |
Water cooling |
Driving System |
Japan YASKAWA Servo motor and drivers |
Working Voltage |
380V/220V |
Transmission |
X axis with imported ball screw, Y axis is imported square rail |
Total power consumde |
<9KW |
Lathe weight |
3200Kg |
Max. weight of working table |
500kg |
Power frequency |
50Hz/60Hz |
Lathe bed |
welded |
X,Y,Z Driver |
YASKAWA servo motor |
XY Max moving speed Idle speed |
30m/min(Single Axe 40m/min) |
Exchange plattorm |
Full-automatic |
Protection house |
enclosed totally |
Follower |
Follower system |
Warranty |
One year |
4.Main parts picture:
5. Samples pictures:
6. Packing details:
7. Factory show:
8. Warranty and after sales service:
1) One year free warranty, main parts are free of charge when problems happened during this period.
2) Life time free maintenance service.
3) Free training course at our factory with professional engineers.
