Specifications
1. 100,000 hours laser working life2. Reposition accuracy: 0.05mm/m
3. Lasermech control system
4. CE/FDA certificate
1000W Fiber Laser Metal Cutting Machine
1. Brief introduction:
Widely use in cutting thin metal material such as mild steel, stainless steel, iron, alloy with high-speed, high precision, and high efficiency, it is the best choice of the metal processing industry.

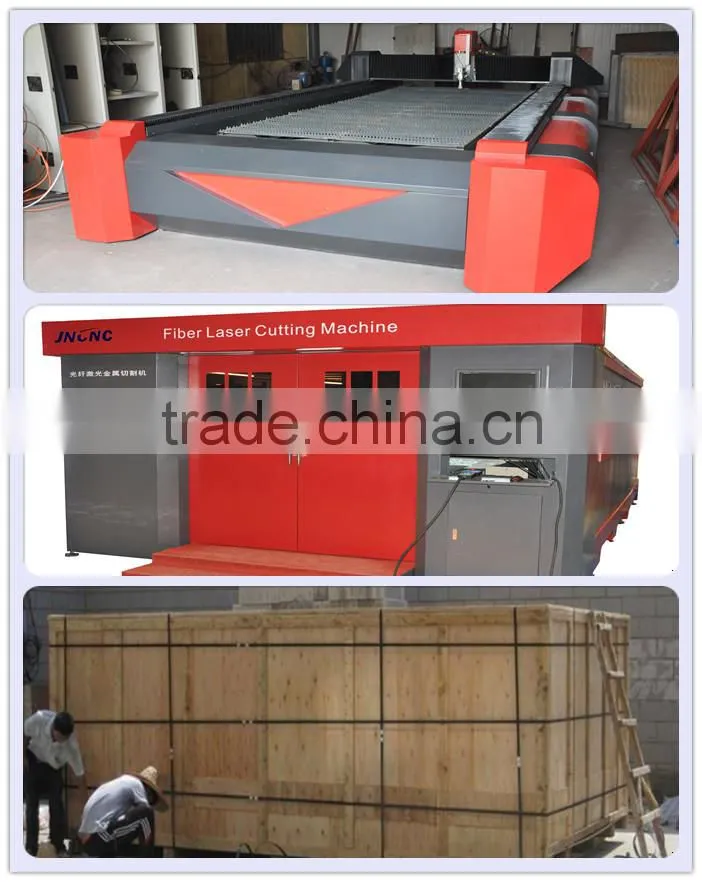

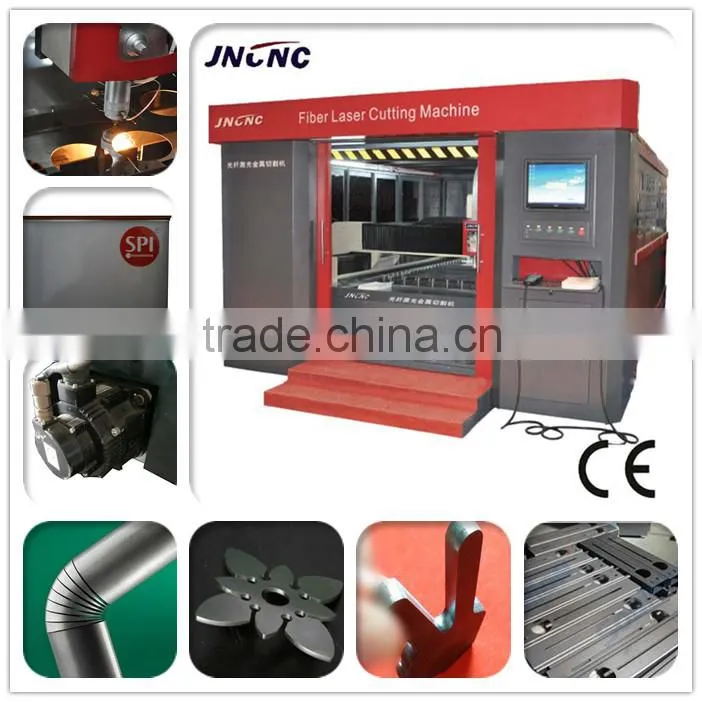

2. Laser metal cutting machine picture:
3. Parameters:
Model Name |
CNC-FL1530 |
Working Area |
1500*3000mm(option:1300*2500mm) |
Laser Type |
Imported original fiber laser |
Laser Power |
1000W(option:SPI 400W/200W, Raycus 500W ) |
Laser Wavelength |
1070nm±10nm |
Max height of lifting |
100mm |
Cutting Thickness |
0.2-12mm |
Max Cutting Speed |
50000mm/min (Adjustable according to different cutting thickness) |
Position Accuracy |
0.03mm |
Minimum Line Width |
≤0.12mm |
Cooling System |
Water cooling |
Driving System |
Japan YASKAWA Servo motor and drivers |
Working Voltage |
380V/220V |
Transmission |
X axis with imported ball screw, Y axis is imported square rail |
Total power consumde |
<9KW |
Lathe weight |
3200Kg |
Max. weight of working table |
500kg |
Power frequency |
50Hz/60Hz |
Lathe bed |
welded |
X,Y,Z Driver |
YASKAWA servo motor |
XY Max moving speed Idle speed |
30m/min(Single Axe 40m/min) |
Exchange plattorm |
Full-automatic |
Protection house |
enclosed totally |
Follower |
Follower system |
Warranty |
One year |
4.Features:
1).Fiber Laser Metal Cutting Machine has faster cutting speed and higher quality cutting result compared to other cutting solutions.
2).The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals.

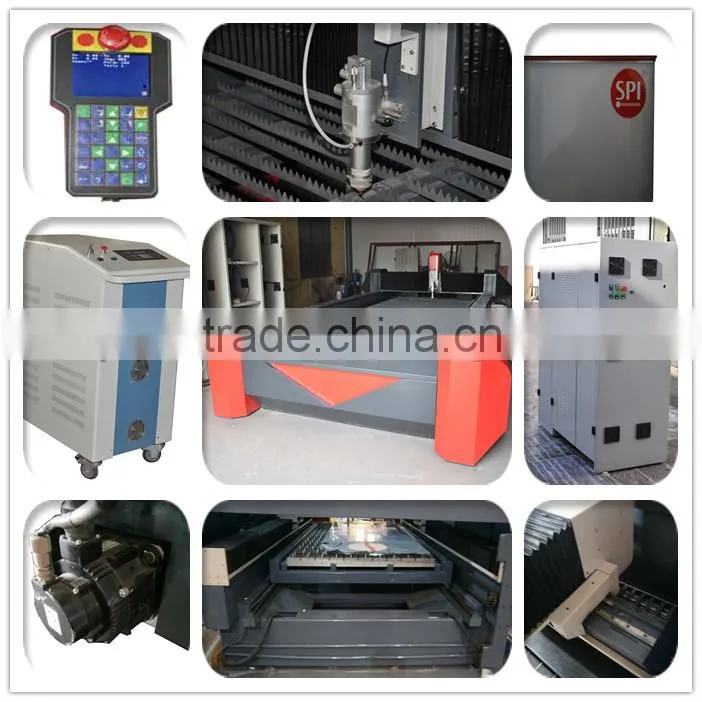

5.Main parts picture:

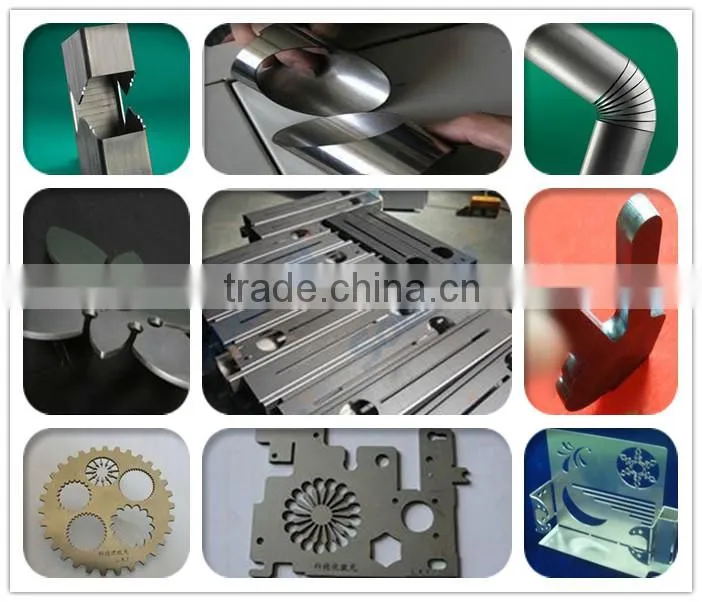

6. Samples pictures:
7. Packing details:
8. Factory show:
9. Warranty and after sales service:
1) One year free warranty, main parts are free of charge when problems happened during this period.
2) Life time free maintenance service.
3) Free training course at our factory with professional engineers.
